Wire Drawing Machine For coiled bar

The parameters of the drawing machine
First. Customer’s requirements
To draw the max. wire φ16 mm.
Second. Design ideas and production flow
Raw wire-2.5T wire pay off plate-LDD-800 inverted wire drawing
machine
Third. Equipment in the production line
1. 2.5T wire pay off plate* 1 set

2. LDD-800 inverted type wire drawing machine * 1 set

1. Process parameter
1.1 Material: Suitable for high, medium, low carbon steel, spring steel, alloy
steel, copper, stainless and so on.
1.2 Spec.：
1.2.1Max wire inlet：φ20mm
1.2.2 One plate of finished wire：according to the material and customer’s
requirements
2.Euqipment and parameters
2.1Type

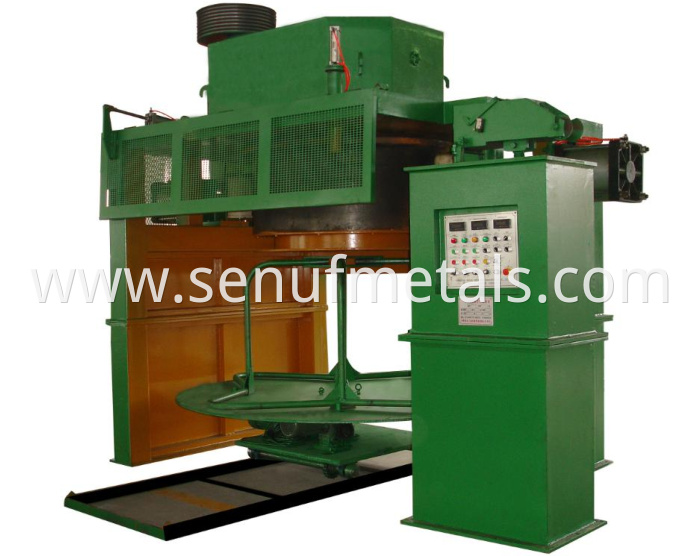

2.1.1 Wire drawing machine LDD-800 type
2.2 Parameters
Drum dia.（mm） 800
Max. wire inlet（mm） Φ5.0-16 mm
Drawing speed（m/min） 0-60
Drawing motor power（kw） 45 kw
Finished wire weight（kg） 2000
Pneumatic dolly trip（mm） 1500
Dolly rotate motor power（kw） 4kw-6p
3. Structure overview
3.1 Main machine：Winding drum installed in the machine’s frame is rotated by
the AC motor’s gear reducer, and the speed is controlled by the AC frequency
converter.

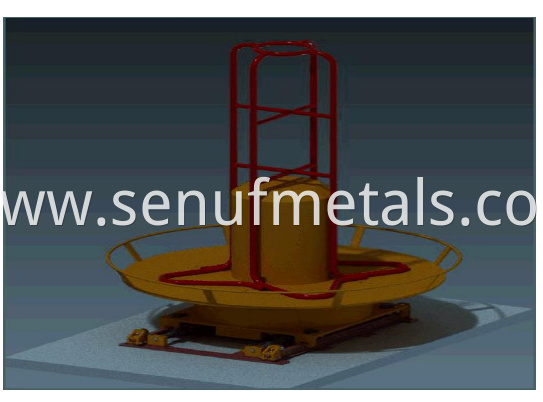

3.2 Winding dolly：pay off wire device is installed in the winding dolly, install
guide rail in the bottom, convenient to go in and out.
3.3 Electrical control system: made up from AC frequency converter,
contactor, operation panel. This system use the AC frequency converter to
control the asynchronous motor. Through the frequency converter, can change
the input motor power’s frequency, the advantage is small volume, low weight,
simple structure, easy to maintenance.

3.4 Pneumatic system: it is made up from air cylinder, solenoid valve and so on.
This system use solenoid valve to clamp the drum’s wire by the roller, it helps
to make the wire pay off smoothly.
4. Process description
4.1 Position the winding wire dolly:inching the forward and backward button, by
the pneumatic, control the dolly in the center.
4.2 Input the wire: wire go through the direction roller and straight device to
the drawing box then to the drawing die, use chain to clamp the wire’s head,
then inching the button then pull to the drum.
4.3 Draw the wire and winding: after input the wire, then start , general adjust
the speed to the requirement speed, then can winding the wire, clamp wire
roller clamp the wire.
4.4 When the wire is fulfill, stop the wire drawing machine and winding wire
dolly’s motor, start the air cylinder to pull the dolly to change the wire plate.
5 Supply range
5.1 Main machine
No. Name Type and main parameter Unit Qty.
1 Main frame 3660L*2310W*2750H mm set 1
2 Drum Φ800×440mm, coating tungsten
carbide to the drum’s surface,
HRC62
set 1
3 Motor 45 KW set 1
4 VFD 45 KW, Huichuan Brand set 1
5 Reducer a.Harden tooth surface grinding.
b.Installed oil Pipe.
set 1
6 Roller Imported wear resistance and
high temperature nylon roller
pcs 4
7 Air cylinder 125*150mm pcs 3
8 Drum cooling Water cooling
5.2 Winding wire dolly
No. name Type and main parameter unit Qty.
1 Dolly dia.1400 mm set 1
2 Motor Y142M-6, 4KW set 1
3 Frequency 4 KW，Huichuan brand set 1
converter
4 Dolly guide
rail
Made by ourselves set 1
5.4 One set of electric cabinet
6. Power supply: three phases, 380V, 50HZ( can be customerized)
Compressed air: Pressure: 0.6-0.8 MPa, flow: 0.25 ㎡/min.
3. Third.ZE-120 type pointing machine*1 set.

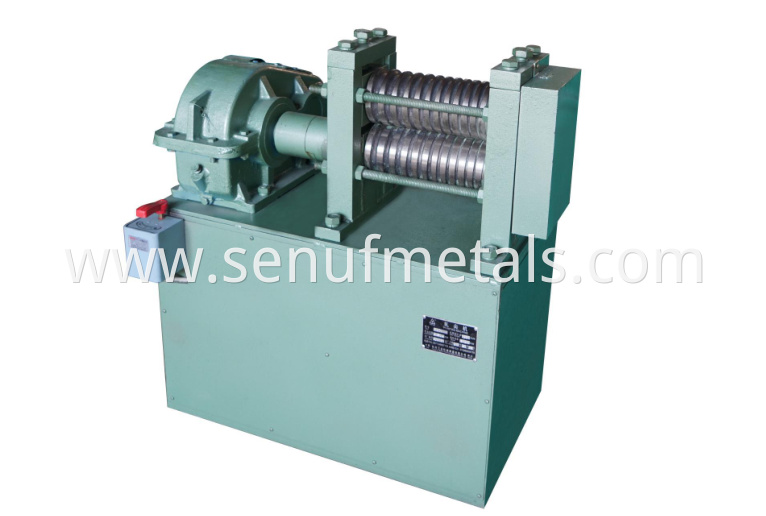

ZE-120type pointing machine
Roller dia.（mm） 120
Max. pointing machine(mm) 16.0
Min.pointing machine(mm) 6.0
Motor power(kw) 5.5kw
