Window Frame Making forming Machine
- Product Description
Model No.: SF-308
Brand: SUF
Control System: PLC
Motor Power: 4KW
Forming Speed: 12-15m/min
Certification: ISO9001
Customized: Customized
Condition: New
Control Type: Other
Automatic Grade: Automatic
Drive: Hydraulic
Shaft Material: 45#
Thickness: 0.4-1.0mm / 1.2-2.0mm
Rollers: 14
Rollers Material: 45# Steel With Chromed
Cutter Material: Cr12 With Heat Treatment
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, Shanghai
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
Features and Advantages of Window Frame Making forming Machine
Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for the choice to improve production speed greatly.
> Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.
> With fully automatic non-stop standard configurations, the Max production speed can reach 30m/min
> Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
> Most of hot & popular profiles models, we have ready Machines in stock for prompt delivery.
Window Frame Making Machine Introduction
This machine is used to make various frames. Our machine is for manufacture of steel window frame, steel door frame, bronze window frame, bronze door frame, fire rated window / door frame and so on.

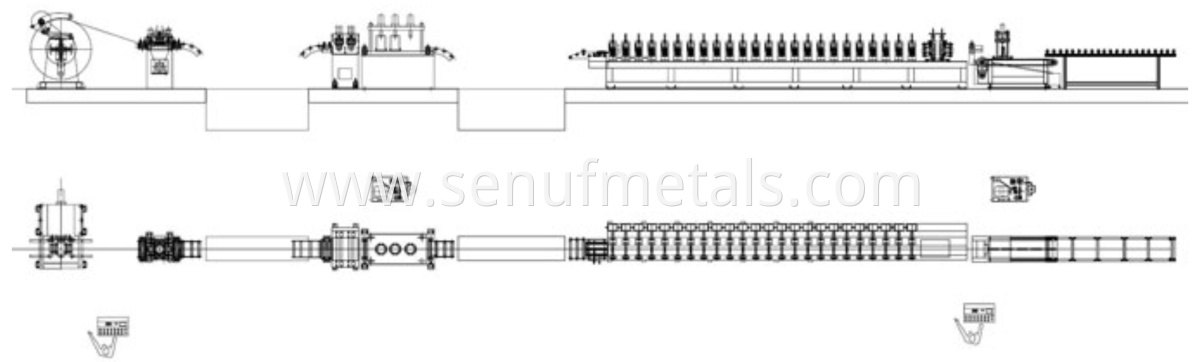

Window Frame Making Machine Working Flow
Steel Window Frame Roll Forming Machine Roll formed door frames, from galvanized steel, Nowadays they have become more and more competitive. The whole door frame can be produce in one Roll Forming line through hole punching, forming, cutting to length, and the subsequent quick assembly.
Experienced engineers of SENUFMETALS Machinery are ready to serve for your unique profile metal frame production line. By SENUFMETALS Roll Former, increase production efficiency and reduce cost for steel door manufacturers. Other metal frame roll forming application are also available

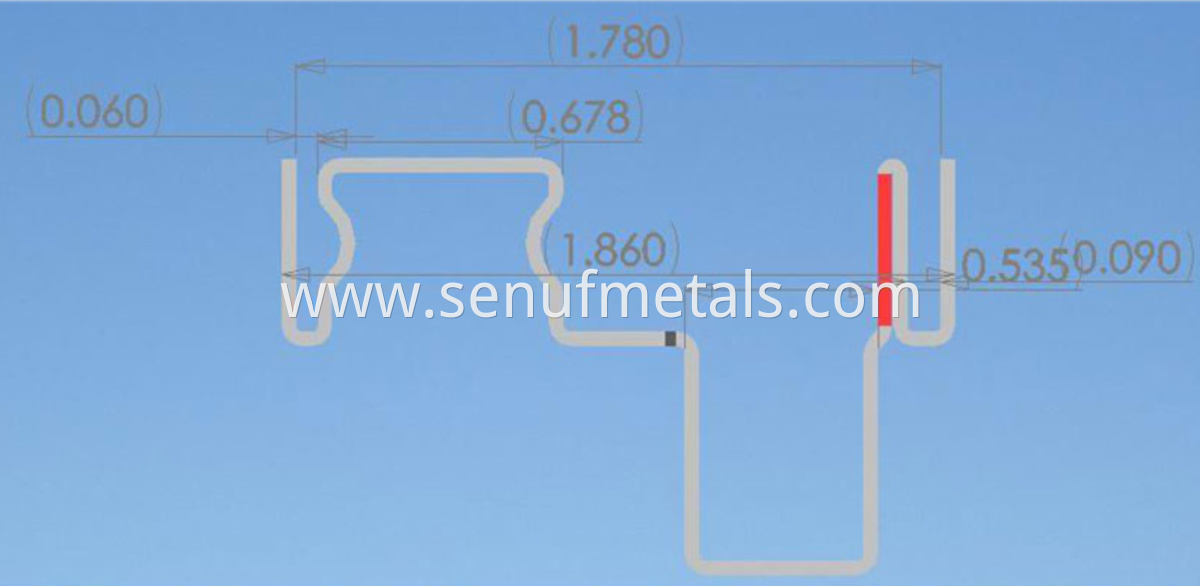

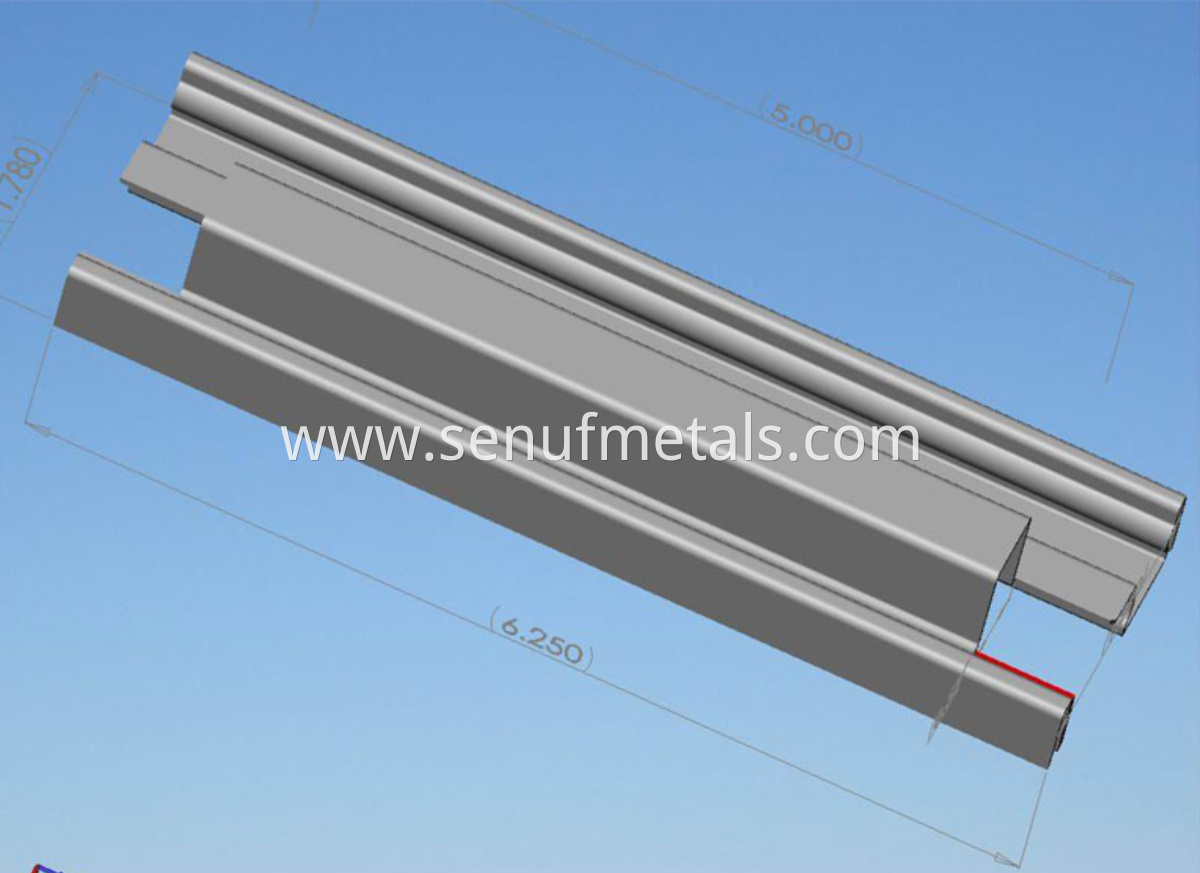

Window Frame Profile Drawings

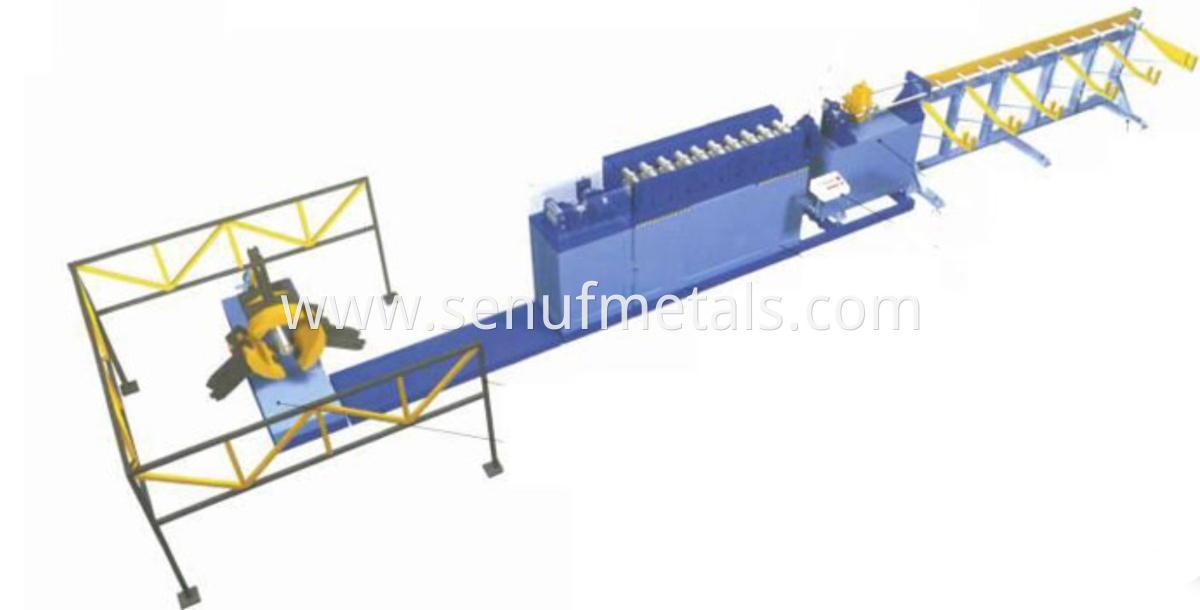

Window Frame Roll Forming Line Layout
Production line Components and Parameters
Related information
|
Machine Condition |
Fully New, A Grade quality |
|
Panel Shape |
As profile drawing and customer’s requirements |
|
Operator |
needed 1-2 persons |
|
Power Supply |
220V/380V/415V/460V, 50/60H乙 3P (as requests) |
|
Equipment Weight |
about 18t |
|
Dimension |
(L*W*H) about 25*3*2m |
|
LOADING SIZE |
Normally need 2 x 40′ container. |
|
Equipment Color |
normally Blue/White, or as requests; |
|
Place of Origin |
Hebei, China (Mainland) |
|
Packing |
Standard and careful export packing |
|
Decoiler |
3t/8t |
|
leveling device |
|
|
ground pit/ over ground accumulating unit |
(optional) |
|
Servo Feeding Device |
|
|
Holes punching device |
|
|
ground pit/ over ground accumulating unit |
(optional) |
|
Guiding device |
|
|
Roll forming system |
20/30m/min |
|
Safety cage |
optional |
|
Post cutting device |
flying cutting, tracking cutting and stop to cut are available for choice |
|
Output System |
Manual supporter/ Automatic Stacker (optional) |
|
Stackmaster Hydraulic system Electric control system |
(Output direction) Lateral/Longitudinal (optional) Power supply for holes punching /post-cutting system Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron (optional or as requested ) |
|
|
