Warehouse Storage Rack Roll Forming Machine
- Product Description
Model No.: SUF
Brand: SUF
Motor Power: 15kw
Voltage: Customized
Certification: ISO
Condition: New
Customized: Customized
Automatic Grade: Automatic
Structure: Other
Transmission Method: Hydraulic Pressure
Thickness: 2-2.5mm
Rollers: 16
Rollers Material: Gcr15
Shaft Diameter And Material: ￠75 Mm, Material Is 45# Forge Steel, Heat Treatment
Forming Speed: 6m/min(including Punching And Cutting)
Driven: Chain
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
Warehouse Storage Rack Roll Forming Machine is one equipment used for making Pallet Rack Systems. Supporting supermarkets shelf for the pallet racking manufacturer that currently produces post, braces, and step.
Warehouse Storage Racking Forming Machine drives by gearbox and electric motor to make sure your thick hard material can form standard and roller installs on 0mm diameter shat for long time usage by various forming speed.
In fact, SENUF METALS has already manufactures and installs more than 100 complete lines of Storage Rack Forming Machine aroud the world successfully.

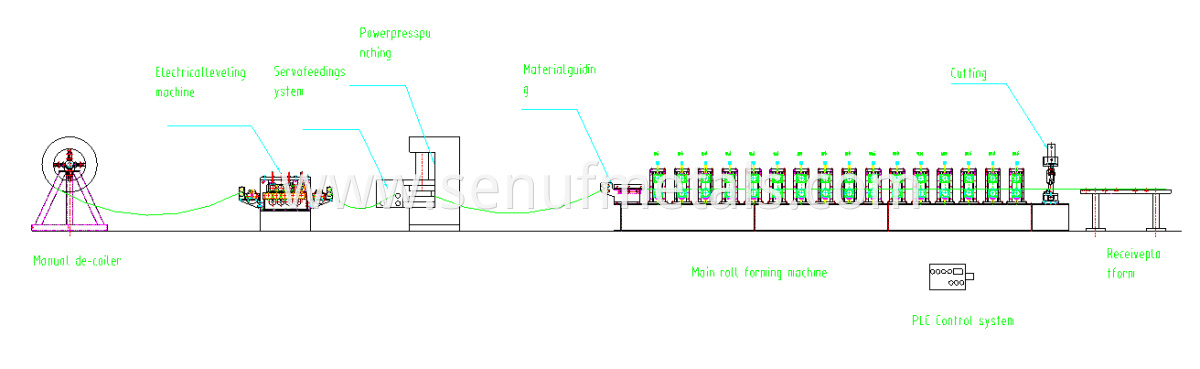

1. Production working flow
2. Detailed about Machines:

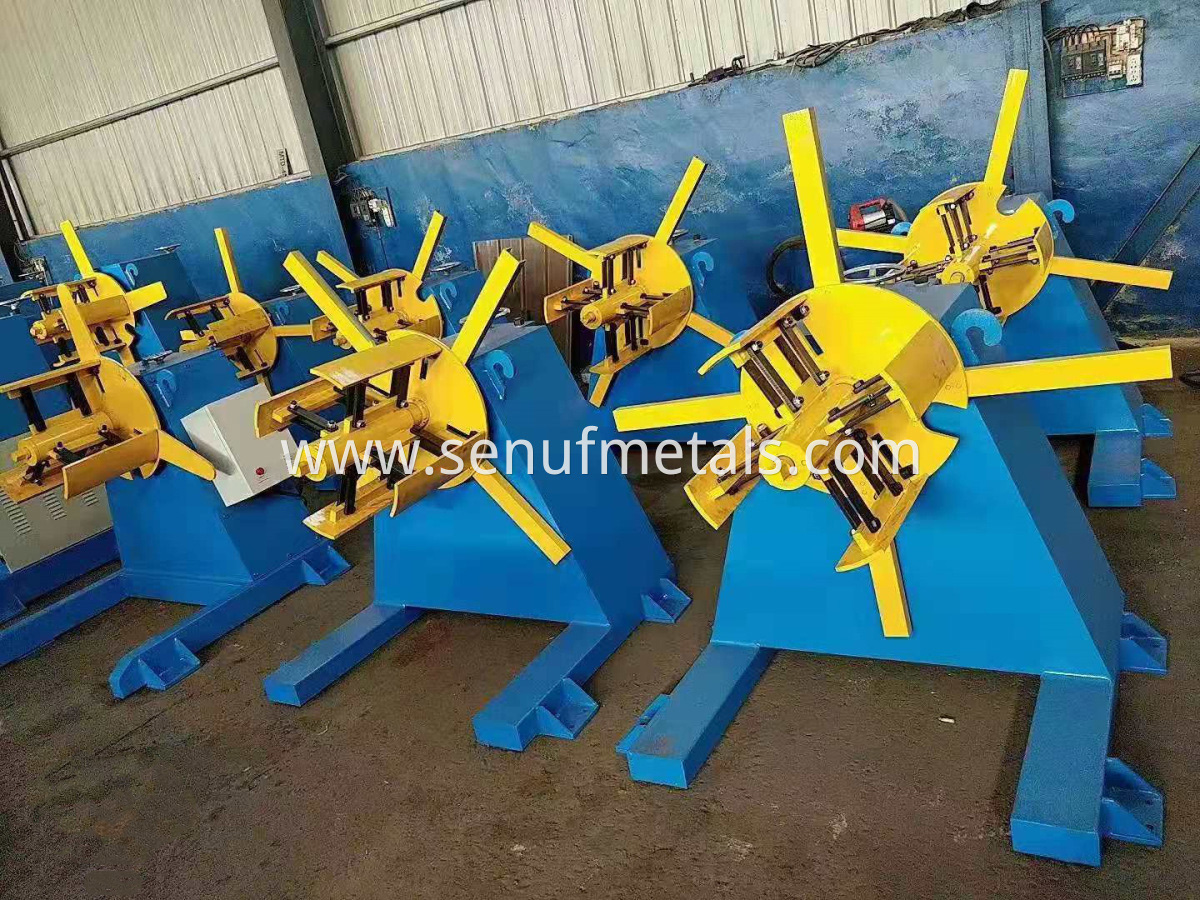

① Manual Decoiler:
Capactity: 5 tons
Steel Coils ID: Φ480-Φ508mm
Cantilever Width: 500mm

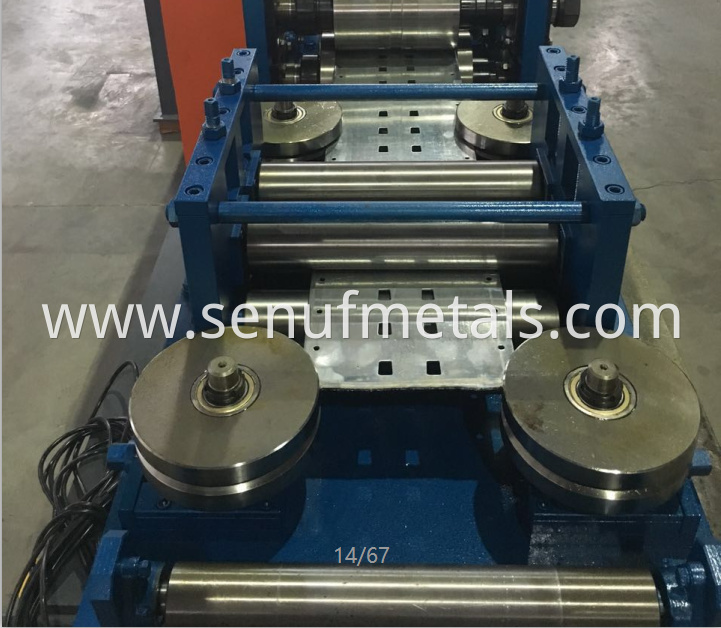

② Leveling System:
Rollers: 7
Motor: 4kw

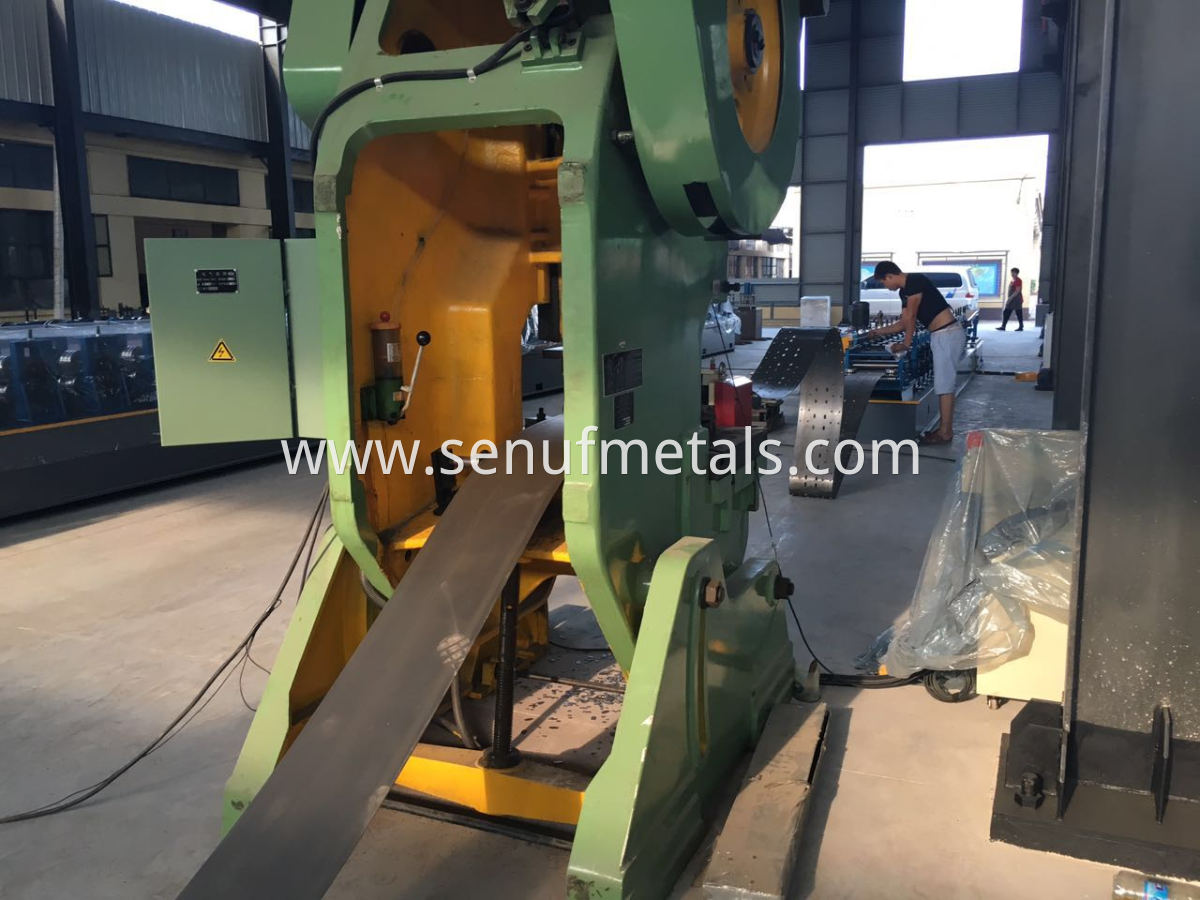

③ Mechanical Press Machine
Puncher machine: YANGLI
Press power: 80T
Punching die material: Gcr12, heat treatment, hardness 58-62°

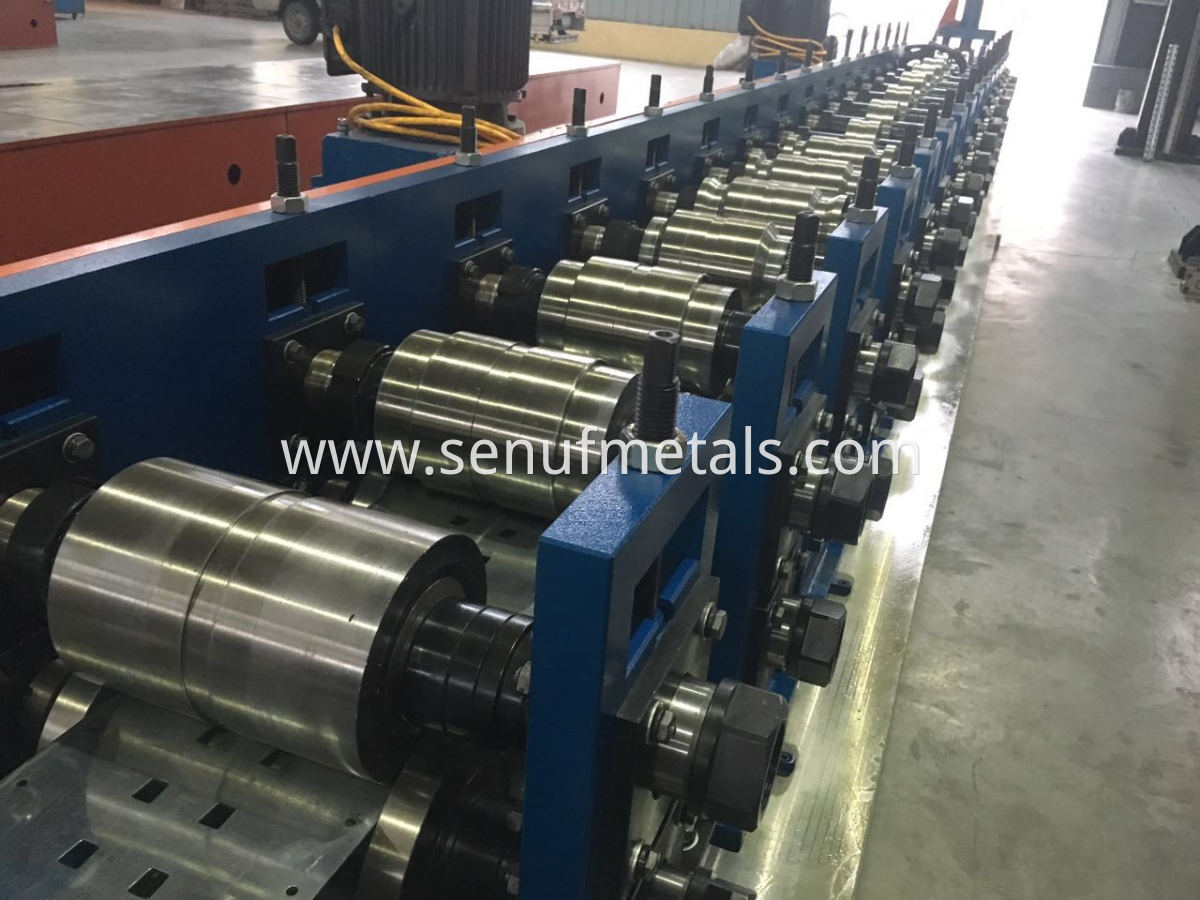

Roller stations: 16
Roller material: Gcr15
Roller shaft dia. and material: ￠75 mm, material is 45# forge steel, heat treatment
Motor: 15kw
