U channel making machine for roll-up door machine
- Product Description
Model No.: U channel
Brand: SUF
Control System: PLC
Motor Power: 4KW
Forming Speed: 12-15m/min
Certification: ISO
Customized: Customized
Condition: New
Control Type: Other
Automatic Grade: Automatic
Drive: Hydraulic
Structure: Horizontal
Transmission Method: Hydraulic Pressure
Shaft Material: 45#
Thickness: 0.4-1.0mm / 1.2-2.0mm
Rollers: 14
Rollers Material: 45# Steel With Chromed
Cutter Material: Cr12 With Heat Treatment
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, SHANGHAI
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED

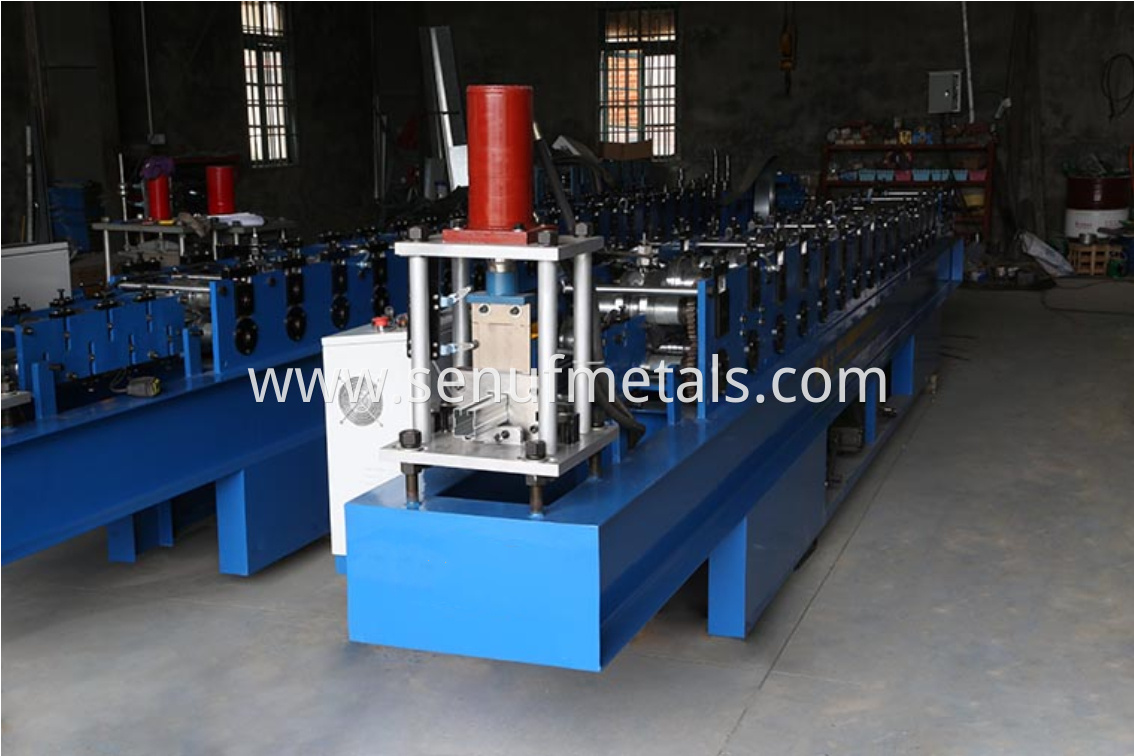

U channel making machine for roll-up door machine
U channel making machine for roll-up door machine, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats (or sometimes bars or web systems) hinged together. The door is raised to open it and lowered to close it. On large doors, the action may be motorized. It provides protection against wind and rain. In shutter form, it is used in front of a window and protects the window from vandalism and burglary attempts.
Main features of U channel making machine for roll-up door machine
The advantages of Roller Shutter Doors Panel Making Machine are as follows:
1. Accuracy profile,
2. Save space, more convenient,
3. Easy operation, low maintenance cost,
4. Stable and durable.
Detailed Images of U channel making machine for roll-up door machine
Machine parts
1. U channel making machine for roll-up door machine Guiding

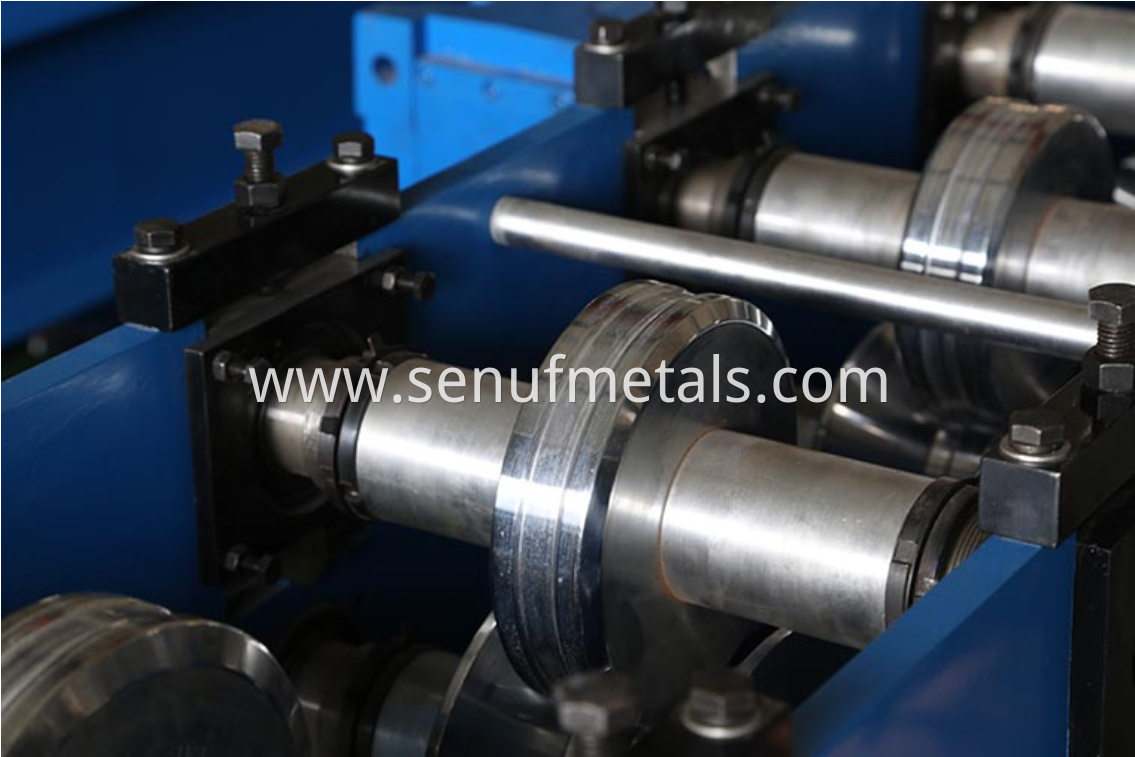

2. U channel making machine for roll-up door machine Rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,
Body frame made by 300# H type steel by welding.

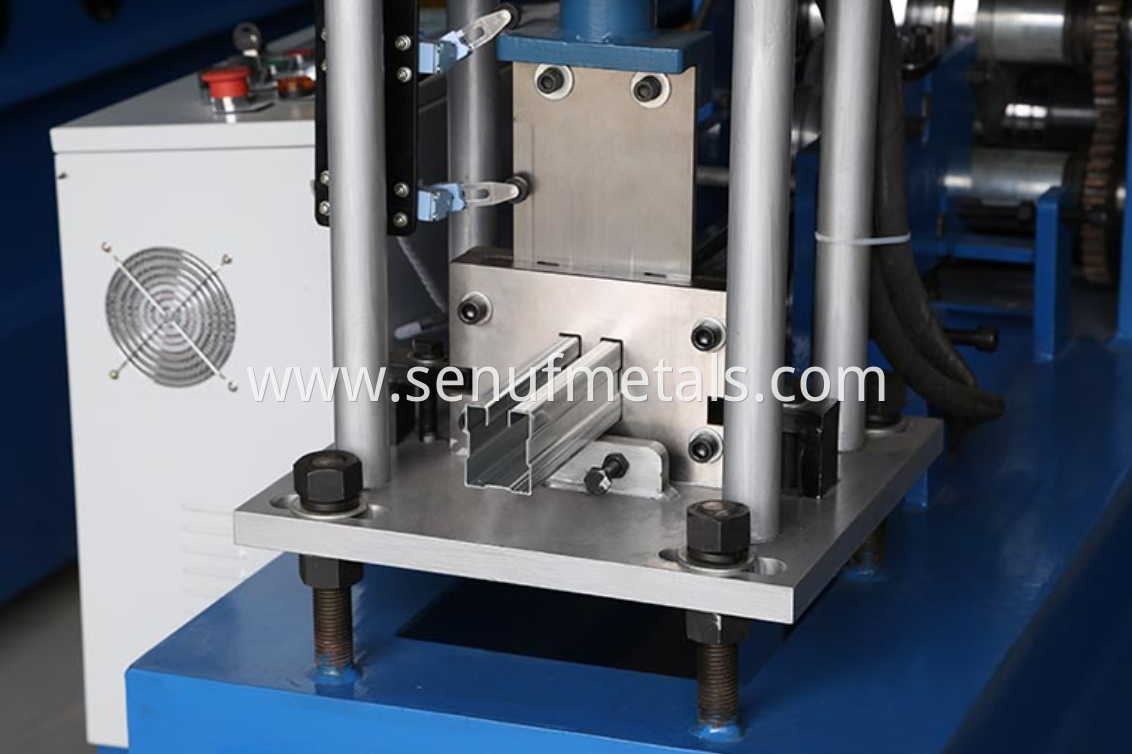

3. U channel making machine for roll-up door machine Cutter
Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding

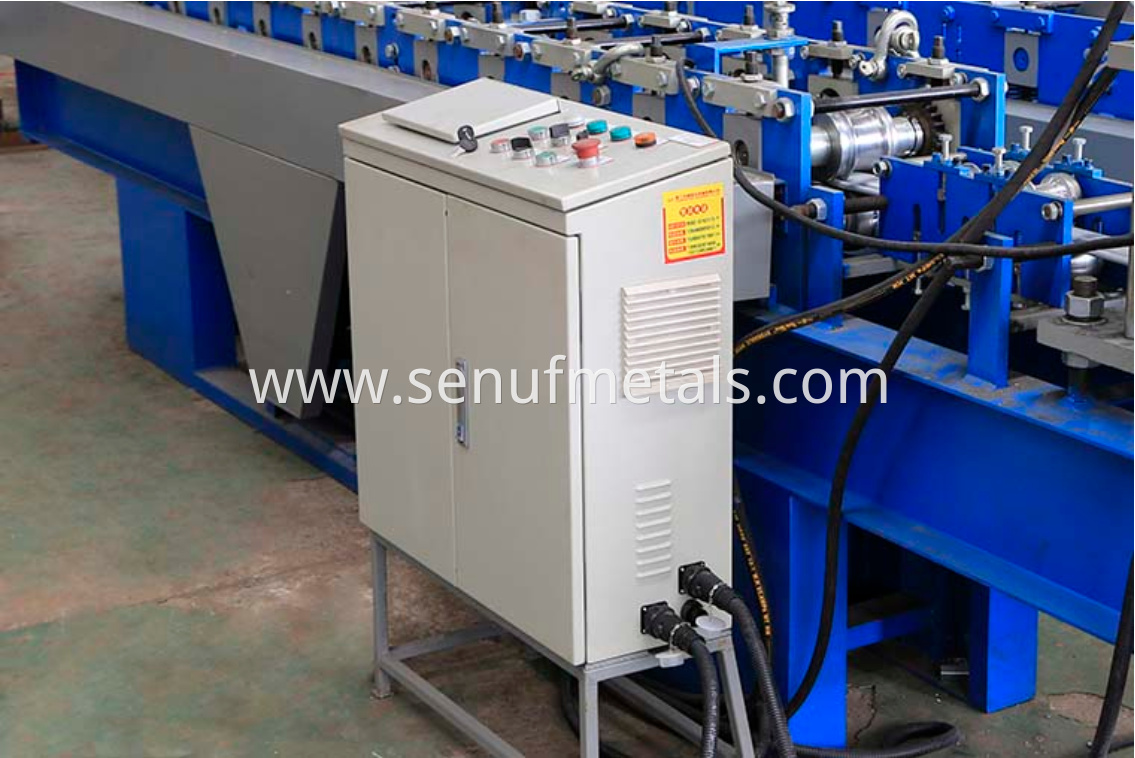

4. U channel making machine for roll-up door machine PLC control system

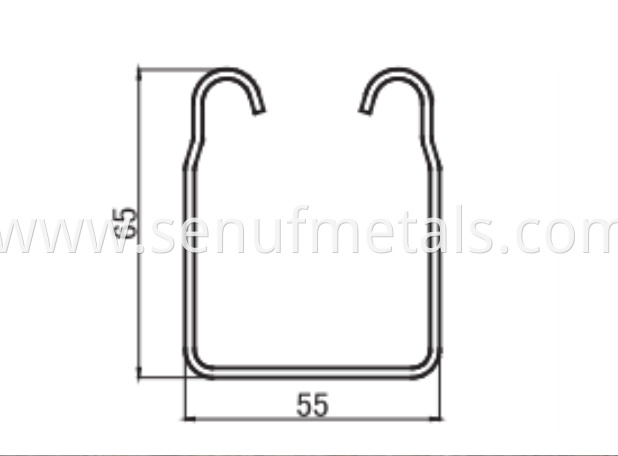

5. U channel making machine for roll-up door machine Sample display

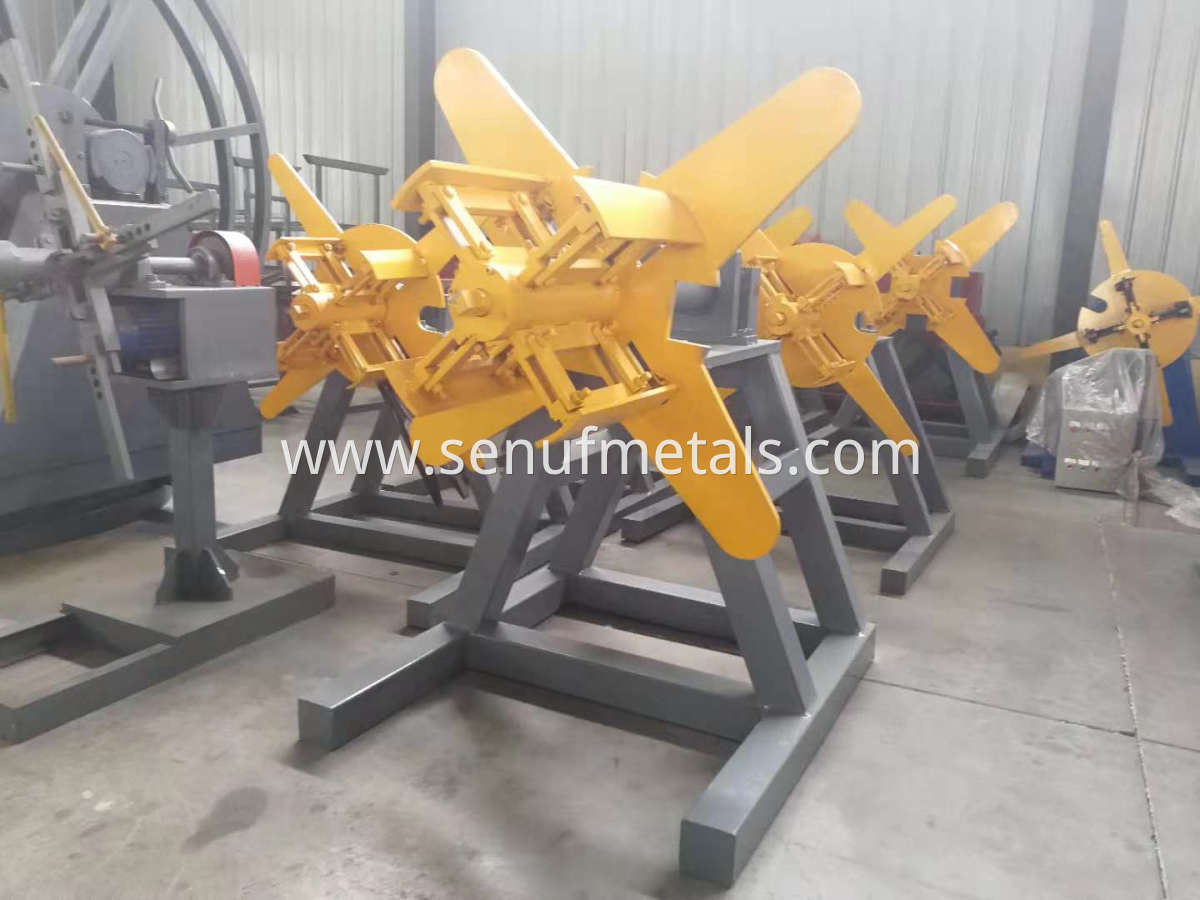

6. U channel making machine for roll-up door machine Decoiler
Manual Decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop,
Max feeding width: 300mm, coil ID range 470mm±30mm,
Capacity: 3 tons
7. U channel making machine for roll-up door machine Run-out table
Un-powered, one unit
Other details of U channel making machine for roll-up door machine
Shafts manufactured by 45#, Main shaft diameter 45/57mm, precision machined,
Motor driving, gear chain transmission, 14/19 steps to form,
Main motor: 4kw/5.5kw,
Frequency speed control, forming speed 12-15m/min.
PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
Product Categories : Cold Roll Forming Machine > Roller Shutter Door Forming Machine
