Steel plate floor tile decking sheet Roll Forming Machine

This type of Floor Tile Decking Sheet Rolling Machine has advantage including high strength, precise shape and size, easy to overlap. Steel Floor Tile Roll Forming Machine can be widely used in village, hotel, exhibition, vocation vallage, family construction and metal construction

Main feaures of Floor Steel Metal Deck Roll Forming Machine

The advanges of Steel plate floor tile decking sheet roll forming machine are as follows:

1. The machine produced floor decking sheet have the features of low cost, light weight but high strength, short building period, and re-cycle use.

2. Save material, no waste,

3. Easy operation, low maintenace cost,

4. One machine for 3 models for optional (by changing spacer)

Detailed Images of Steel plate floor tile decking sheet roll forming machine

Machine parts

1. Steel plate floor tile decking sheet roll forming machine manual pre-cutter

Brand: SUF, Original: China

Only for cutting the first piece and the end of piece of the sheet. For easy operation and save material: The precutter is conneted with PLC control system, PLC is calculating profile length with roll forming. Once material is required to change, PLC is calculating the length for total quantity and remid operator, production finishes and able to manual shearing material before roll forming so as to change material for new production. It is the advanced function and good for production to save material, no waste.

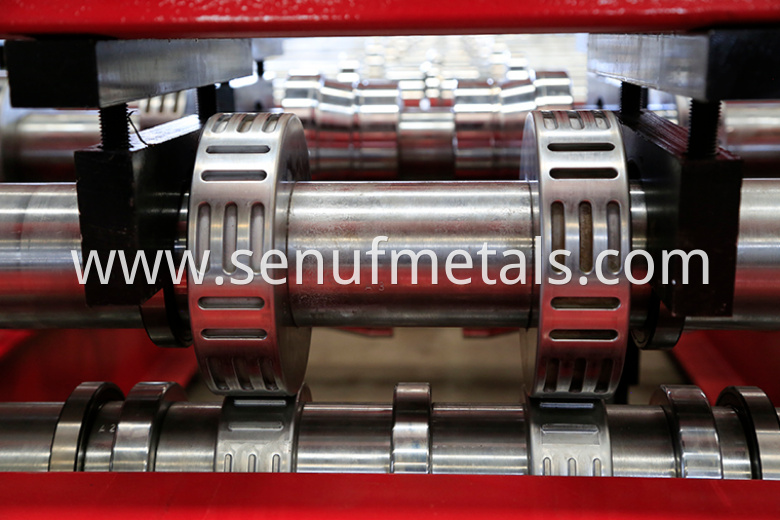

2. Steel plate floor tile decking sheet roll forming machine rollers

Rollers manufactured from high quality 45#steel, CNC lathes, Heat Treatment. with Hard-Chrome Coating for long working life.

Body frame made by 400H steel by welding, The material for embossing roller: bearing steel GCR15, heat treatment.

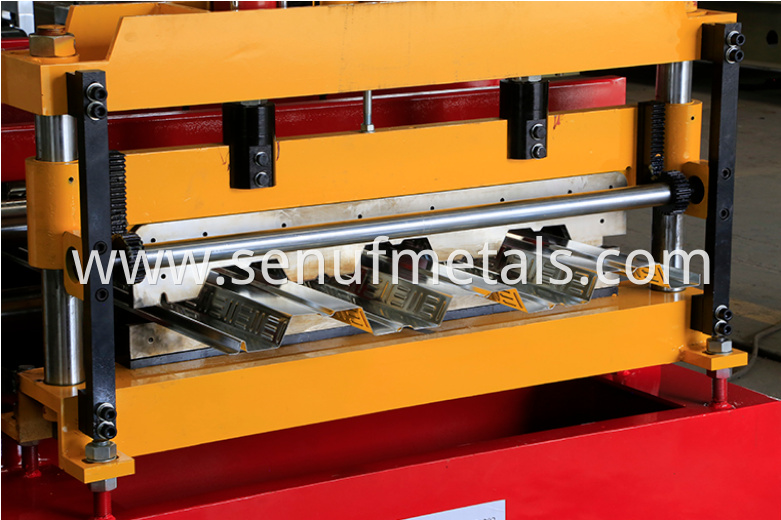

3. Steel plate floor tile decking forming machine post-cutter

Made by high quality mold steel Cr12 with heat treatment,

Cutter frame made from high quality 20mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

4. Steel floor tile decking roll forming machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508±30mm

Capacity: 5-9 ton

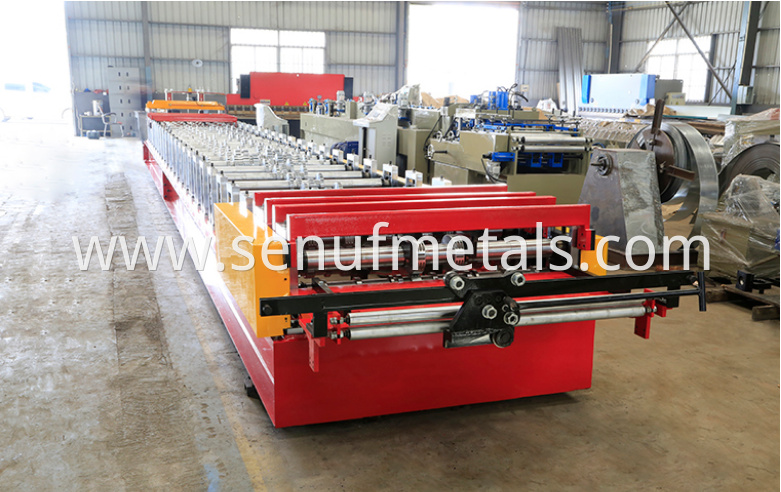

5. Floor tile decking sheet roll forming machine

Un-powered, one unit

Other detailes of Steel plate floor tile decking forming machine

Suitable for material with thickness 0.8-1.5mm

Shaft manufactured from 45#, Main shaft diameter Φ90mm, precision machined

Motor driving, gear chain transmission, 22 steps to form,

Main motor 18.5kw, Frequency speed control, Forming speed approx 12-15m/min

PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Taiwan Delta, Encoder brand: Omron)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc,

Cut-to-length tolerance≤±2mm,

Control voltage: 24V

User’s manual: English
