Steel floor plate roll deck making machine metal
- Product Description
Model No.: SUF
Brand: SUF
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Construction Works
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Philippines, Spain, Chile, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Philippines, Spain, Algeria, Nigeria
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Steel
Use: Floor
Productivity: 15 M/Min
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: Easy To Operate
Rolling Thinckness: 0.3-1mm
Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: More Than 5 Years
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine
Control System: PLC
Motor Power: 15kw
Voltage: Customized
Thickness: 0.8-1.5mm
Material Of Cutter: Cr12
Rollers: 22 Steps
Rollers Material: 45# Steel Heat Treatment And Chromed
Shaft Diameter And Material: ￠85mm, Material Is 45# Steel
Forming Speed: 15m/min
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, Express
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: XIAMEN
Payment Type: L/C, T/T, D/P, D/A, Paypal
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
- Picture Example:
-
Steel floor plate roll deck making machine metal studded floor tile
Steel floor plate roll deck making machine metal is made of galvanized steel plate after rolled cold bending forming, its section into a v-shaped, u-shaped, trapezoid or similar this several kinds of the shape of the waveform, mainly used for permanent template, can also be selected for any other purpose. The earliest type of pressure steel plate is used for roof panels in the roof of the factory, and after the pressure type steel plate used for floors is gradually classified as the Metal deck Roll Forming Machine.
Material:
Material Thickness: 0.8-1.5mm or 1.5-2.0mm
Applicable material: GI, cold roll steel with yield strength 235-550Mpa

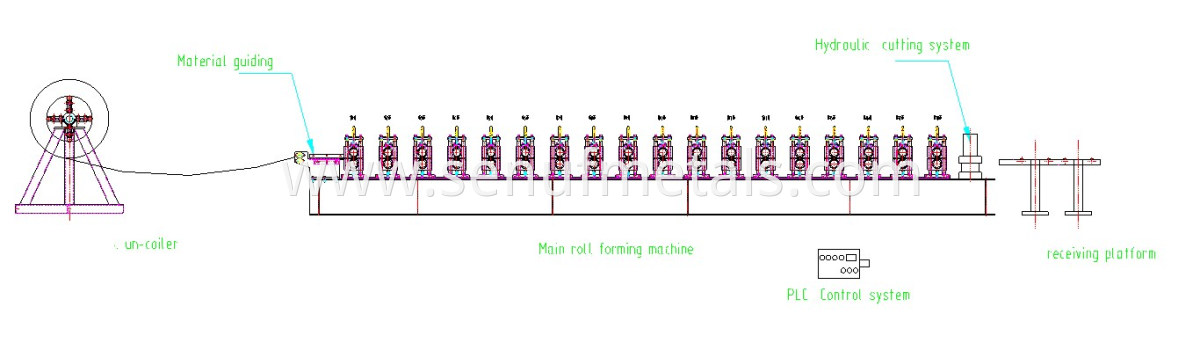

Working Process:
Machine Components:
1. Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 1250mm, coil ID range 508±30mm
Capacity: Max. 7 ton

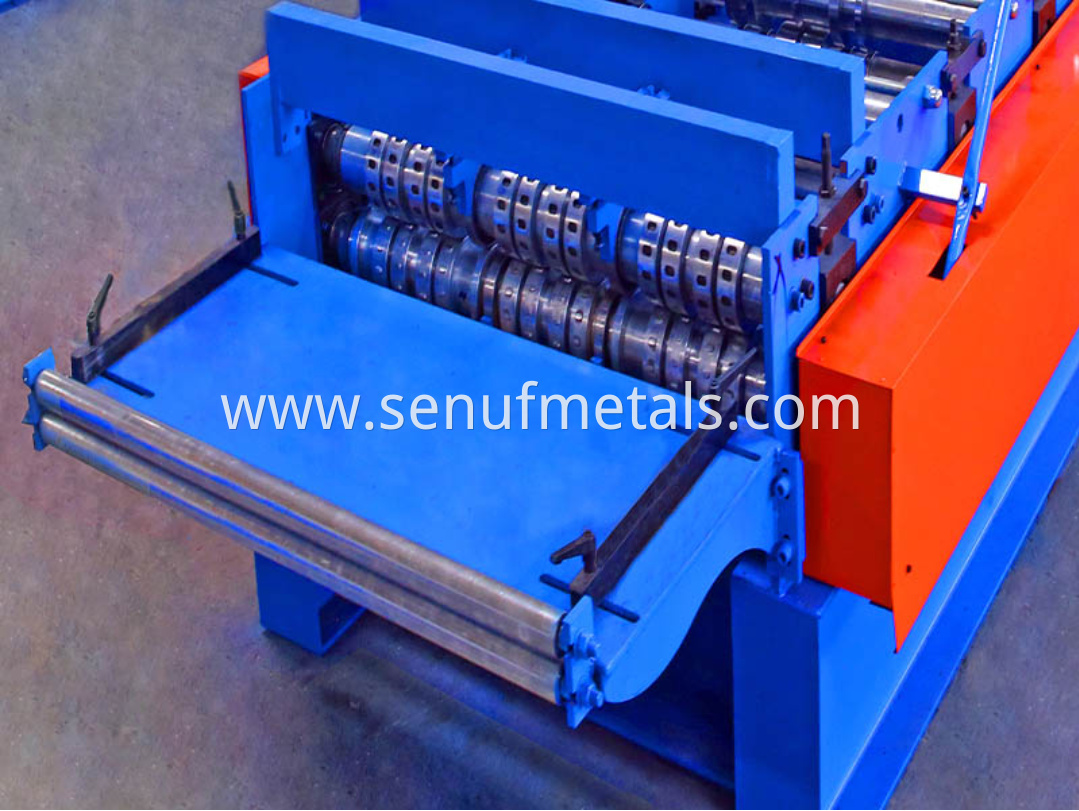

2. Feeding Guide Device:
Feeding guide device can control the material feeding width

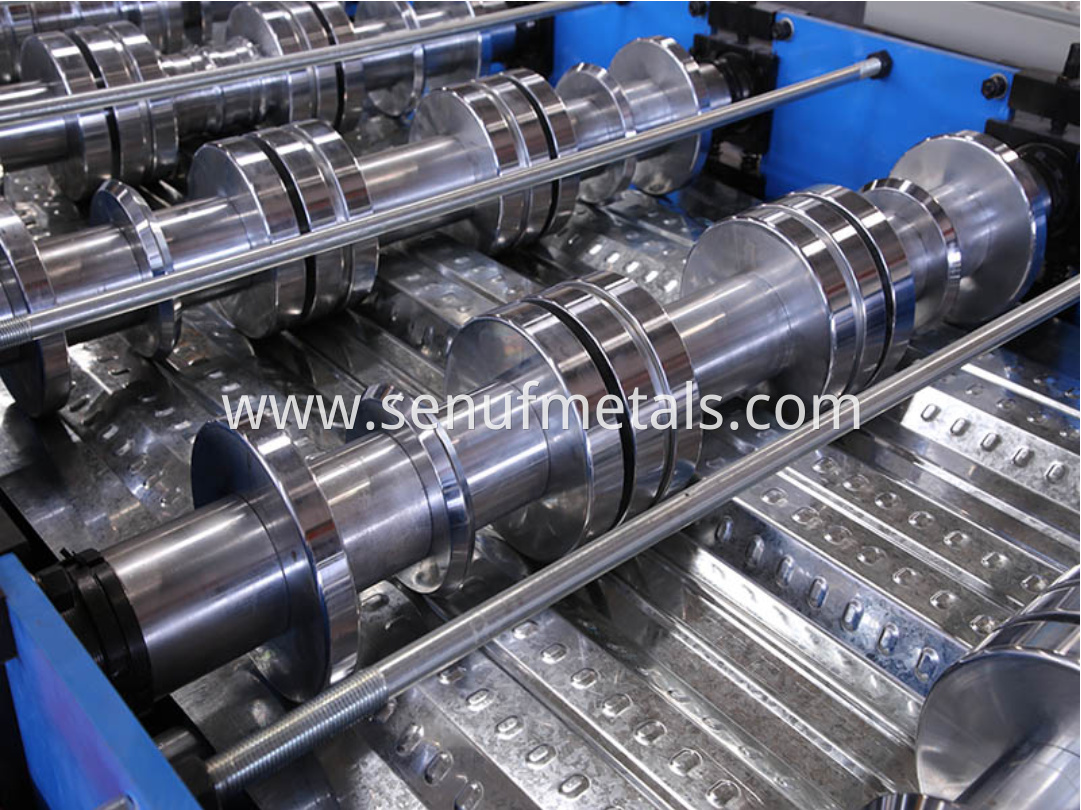

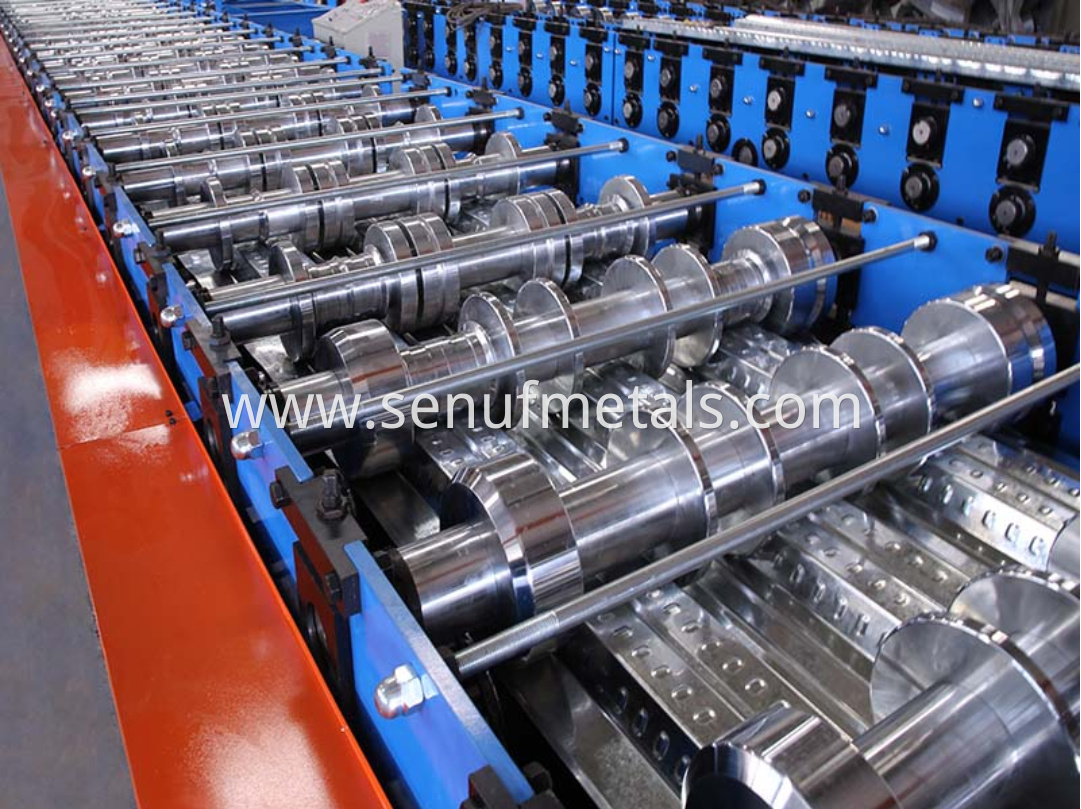

3. Main Machine:
Body frame made from H400 type steel by welding, side wall thickness: Q235 t18mm
Rollers manufactured from 45# steel, CNC leathers, heat treatment, hard chrome coated, with thickness 0.04mm, surface with mirror treatment (for longer life anti-rust)
The material for embossing roller: bearing steel Gcr15 for long working life, heat treatment
Shaft diameter: Φ90/95mm, precision machined
Gear/Sprocket driving, about 24 steps to form,
Main motor: 11*2kw, frequency speed control
Real forming speed: 0-20m/min(not include cutting time)

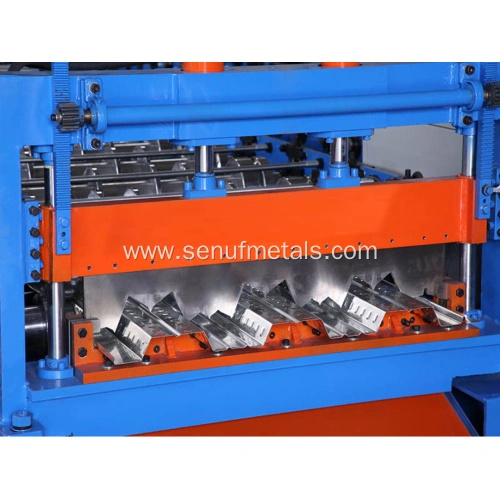

4. Post hydraulic cutting device:
Post to cut, stop to cutting, two pieces type of cutting blade design, no blanking
Hydraulic moto: 5.5kw, Cutting pressure: 0-12Mpa,
Cutting tool material: Cr12Mov(=SKD11 with at least one million times of cutting life), heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station

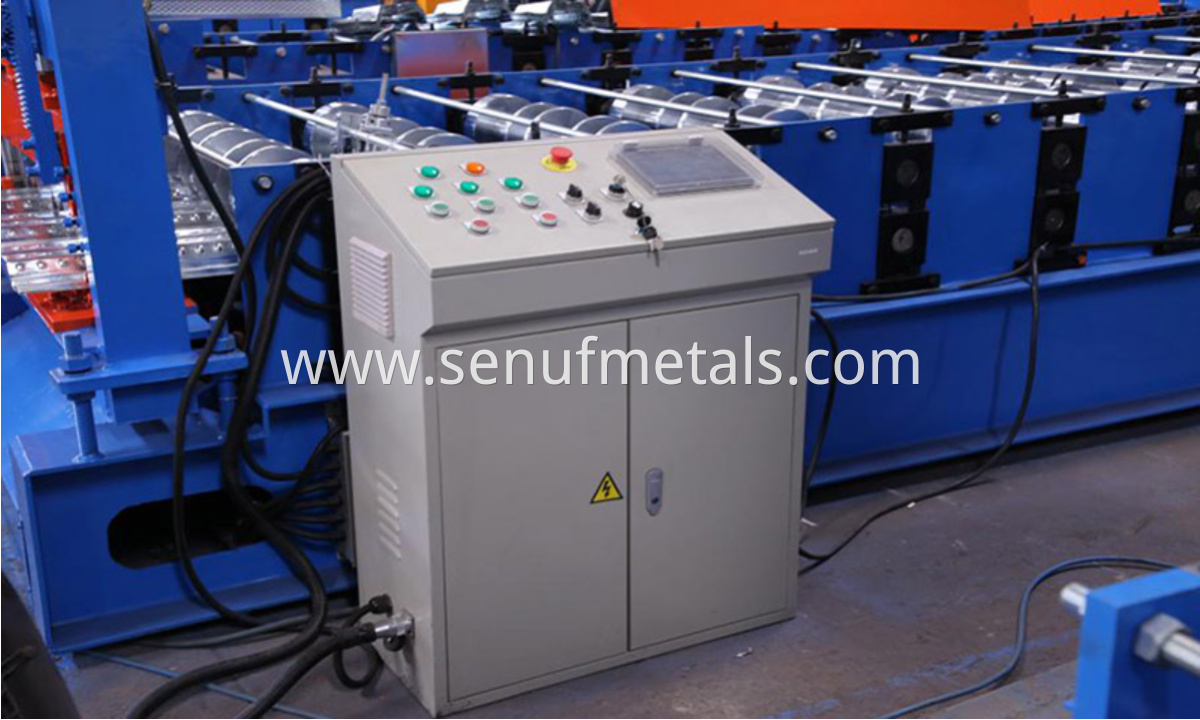

5. PLC control system:
Control the quantity and cutting length automatically
Input the production data (Production batch, pcs, length, etc) on the touch screen, it can finish the production automatically combined with: PLC, Inverter, Touch Screen, Encoder, etc

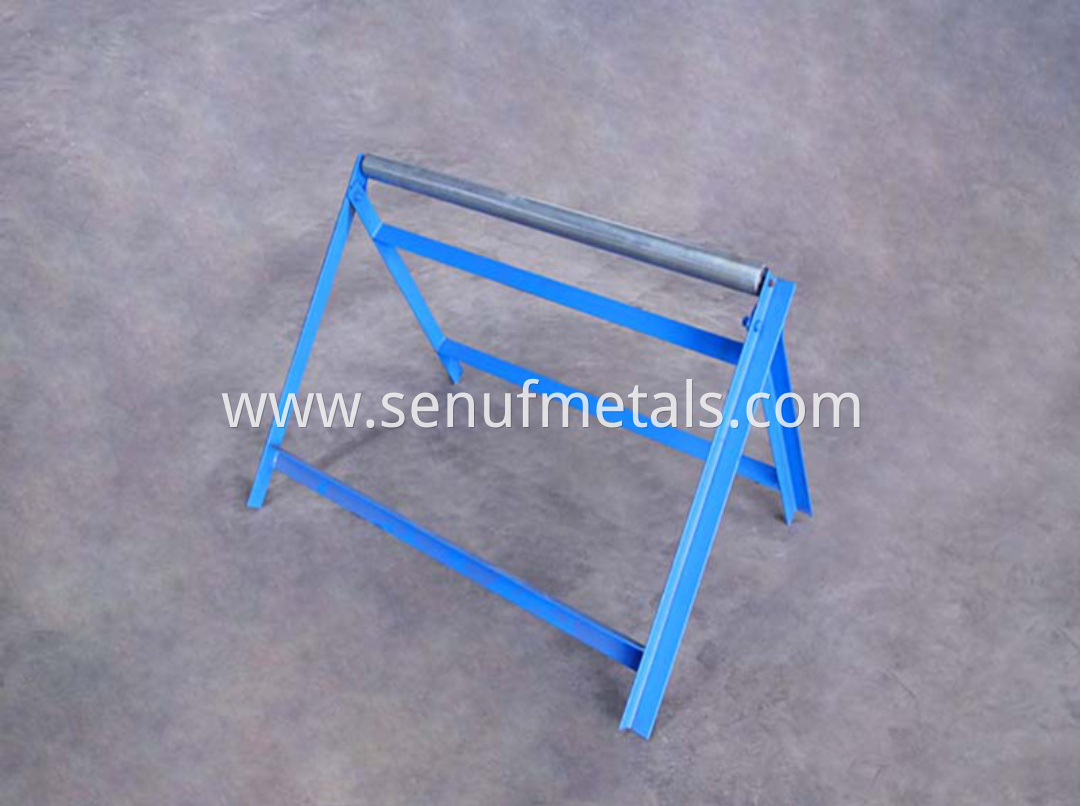

6. Exit Rack:
Un-powered, three units, with rollers on it for easy movement

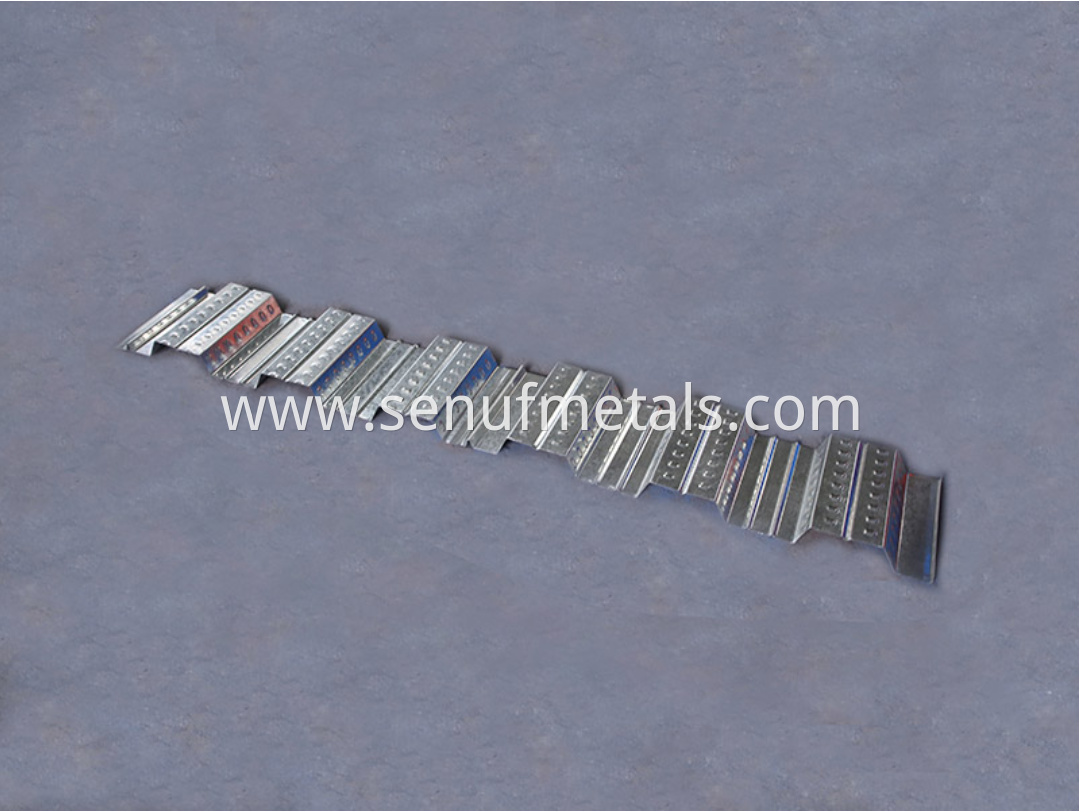

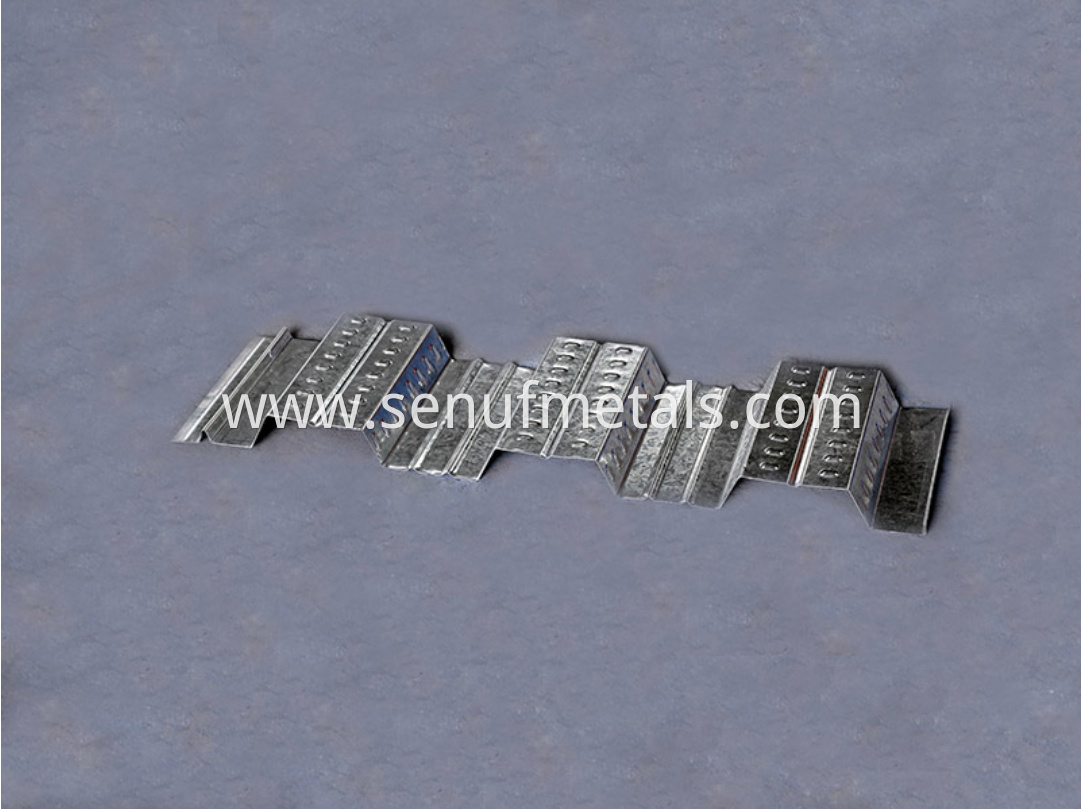

7. Product Show:
Packing Type:
Main maching body is naked and covered by plastic film (to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long distance transportation.
