Steel build material decking floor forming machine

Steel build material decking floor forming machine for American

The Floor Deck Roll Forming Machine is more and more requested from the customers.
As the manufacturer, we have rich experience to produce Light keel drywall Roll Forming Machine, Glazed Tile Roof Sheet Roll Forming Machine, Purlin Changeable Roll Forming Machine, Roller Shutter Door Forming Machine, Storage Rack Roll Forming Machine etc., and can provide some design concepts to match various demands.

Main features of Metal floor deck forming machine

The advantages of Metal Floor Deck Roll Forming Machine are asa follows:

1. The machine produced floor decking sheet have the features of low cost, light weight but high strength, short building period, and re-cycle use.

2. Save material, no waste,

3. Easy operation, low maintenace cost,

4. One machine for 3 models for optional (by changing spacer)

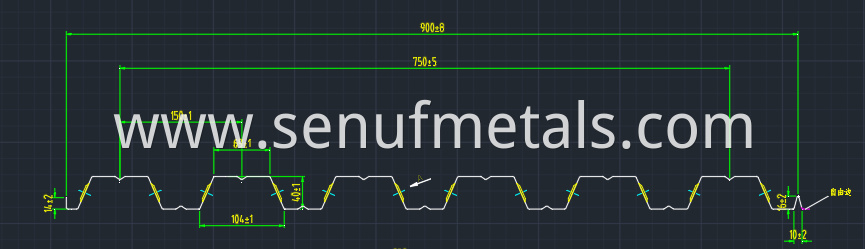

Drawing:

Detailed Images of Galvanized floor covering deck forming machine

Machine parts

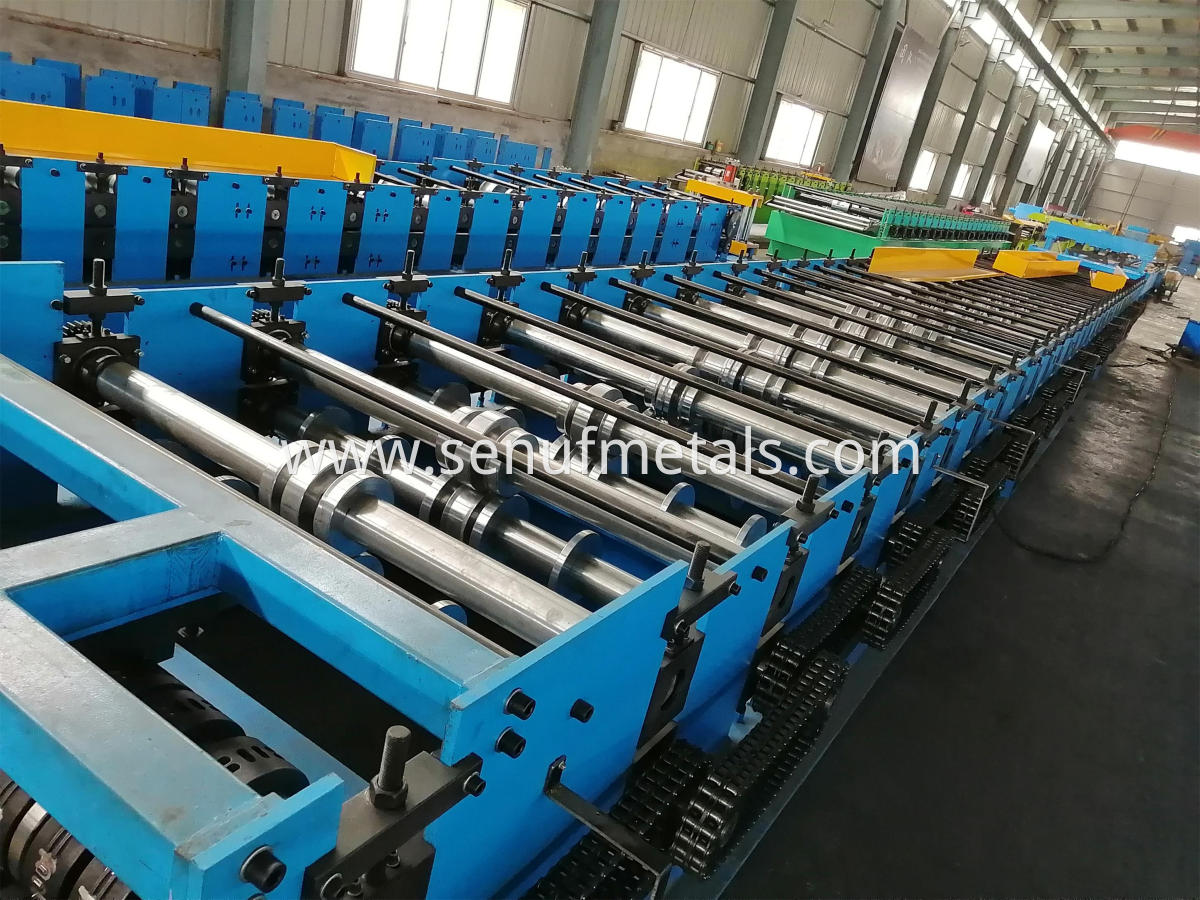

1. Metal floor covering deck tile forming machine rollers

Rollers manufactured from high quality 45#steel, CNC lathes, Heat Treatment. with Hard-Chrome Coating for long working life.

Body frame made by 400H steel by welding, The material for embossing roller: bearing steel GCR15, heat treatment.

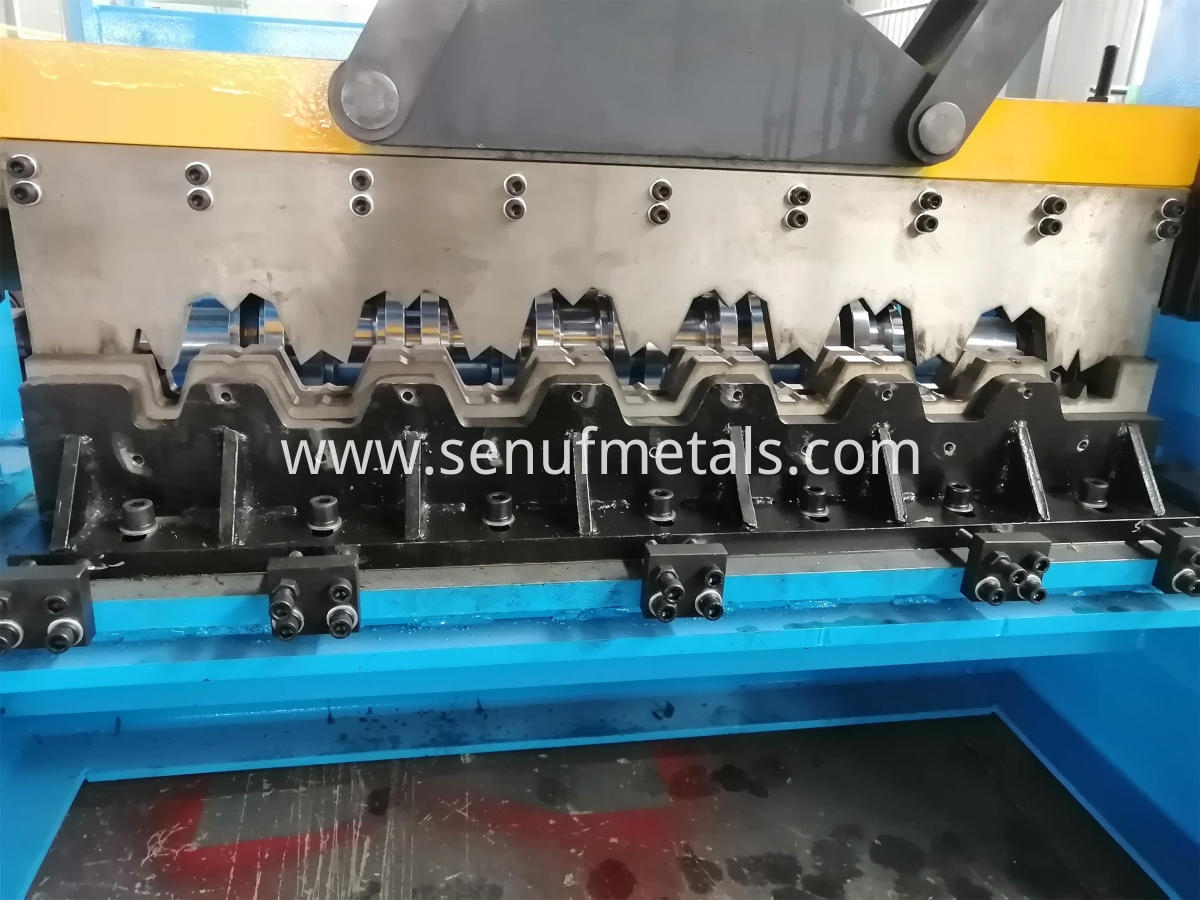

2. Metal floor covering deck tile forming machine post-cutter

Made by high quality mold steel Cr12 with heat treatment,

Cutter frame made from high quality 20mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

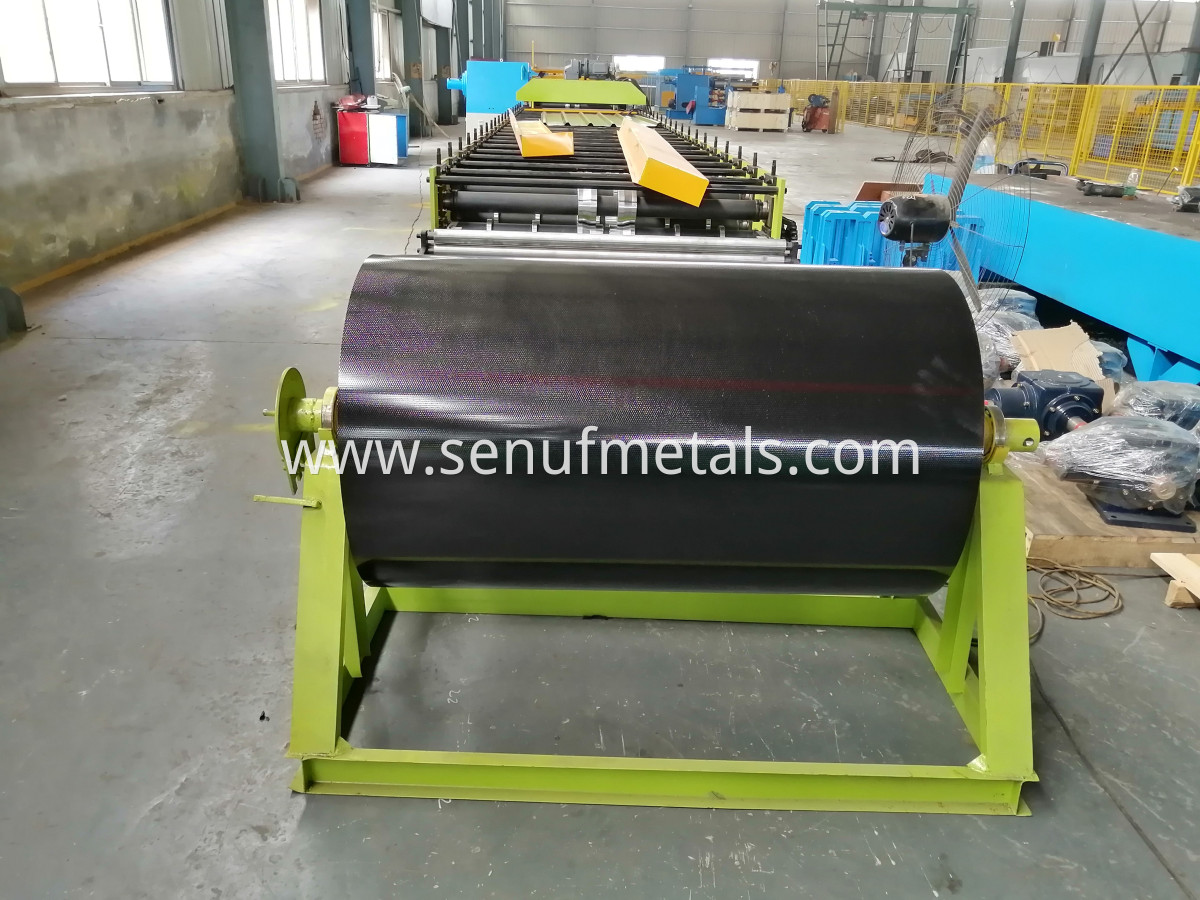

3. Metal floor covering deck tile forming machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1300mm, coil ID range 508±30mm

Capacity: 5 ton

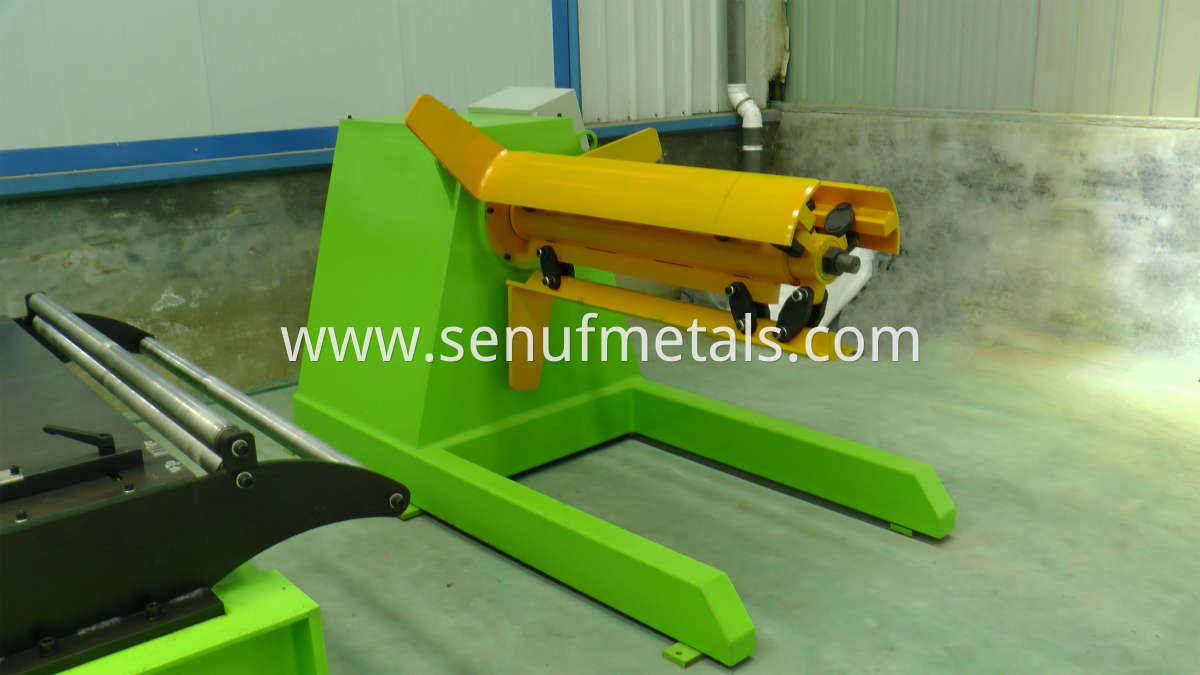

Or hydraulic decolier as optional

4. Metal floor covering deck tile forming machine

Un-powered, one unit

Other detailes of Metal floor covering deck tile forming machine

Suitable for material with thickness 0.8-1.5mm

Shaft manufactured from 45#, Main shaft diameter Φ90mm, precision machined

Motor driving, gear chain transmission, 22 steps to form,

Main motor 18.5kw, Frequency speed control, Forming speed approx 12-15m/min

PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Taiwan Delta, Encoder brand: Omron)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc,

Cut-to-length tolerance≤±2mm,

Control voltage: 24V

User’s manual: English
