Rugged Rib Exposed Fastener Metal Panel forming machine
- Product Description
Model No.: Rugged Rib Exposed Fastener Metal Panel forming machine
Brand: SUF
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Other, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Steel
Use: Roof
Productivity: 30 M/Min
Place Of Origin: China
Warranty Period: 1 Year
Core Selling Point: High-Accuracy
Rolling Thinckness: 0.3-1mm
Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm, Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Hot Product 2019
Core Component Warranty Period: 3 Years
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, Plc
WEIGHT: 29GA
Panel Type: Exposed Fastener Metal Panel
Panel Width Coverage: 36″
Metal Panel Substrate: aluminized zinc, Galvalume
Paint Finish Type: Siliconized Polyester
Gauges: 29 or 26 gauge
Rib Height: 5/8″
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, Express, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: XINGANG, TIANJIN, SHANGHAI
Payment Type: L/C, T/T, D/P, Paypal, D/A
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP, DEQ, DDP, DDU, Express Delivery, DAF, DES, FAS
- Selling Units:
- Set/Sets
- Package Type:
- NAKED

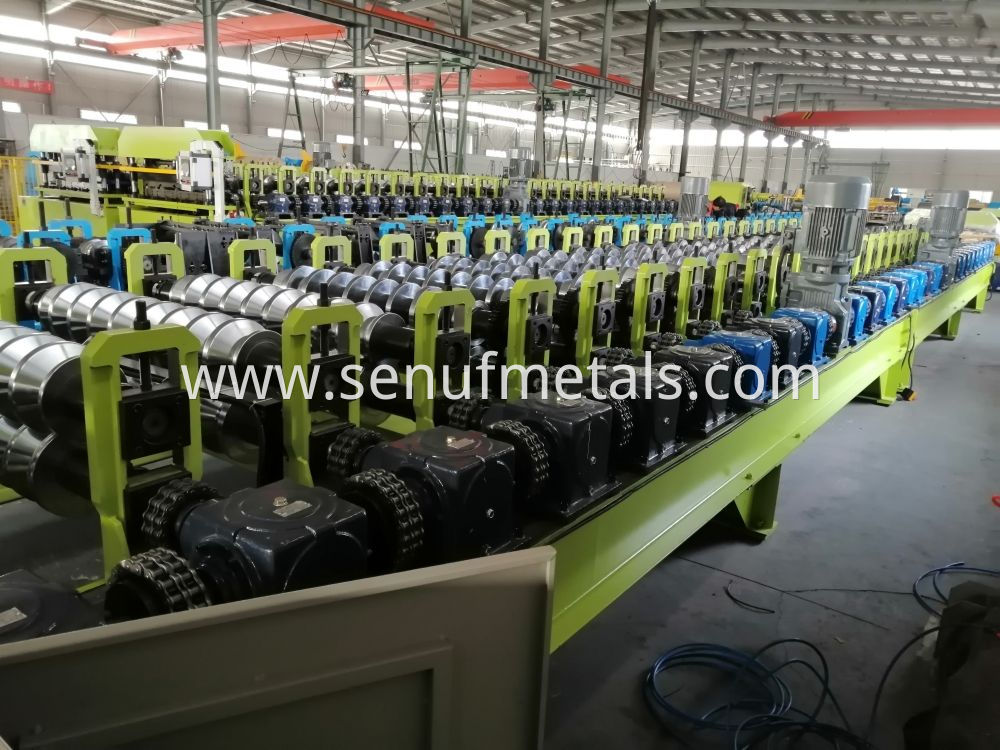

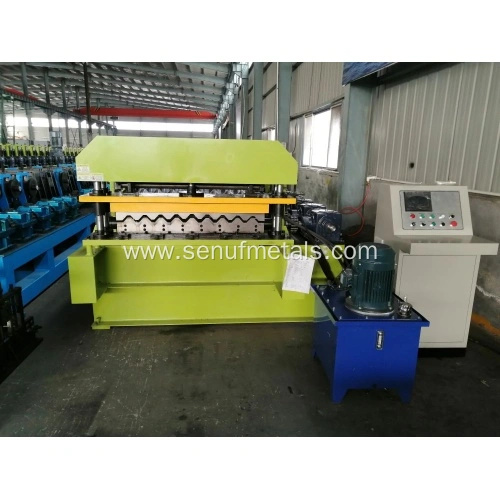

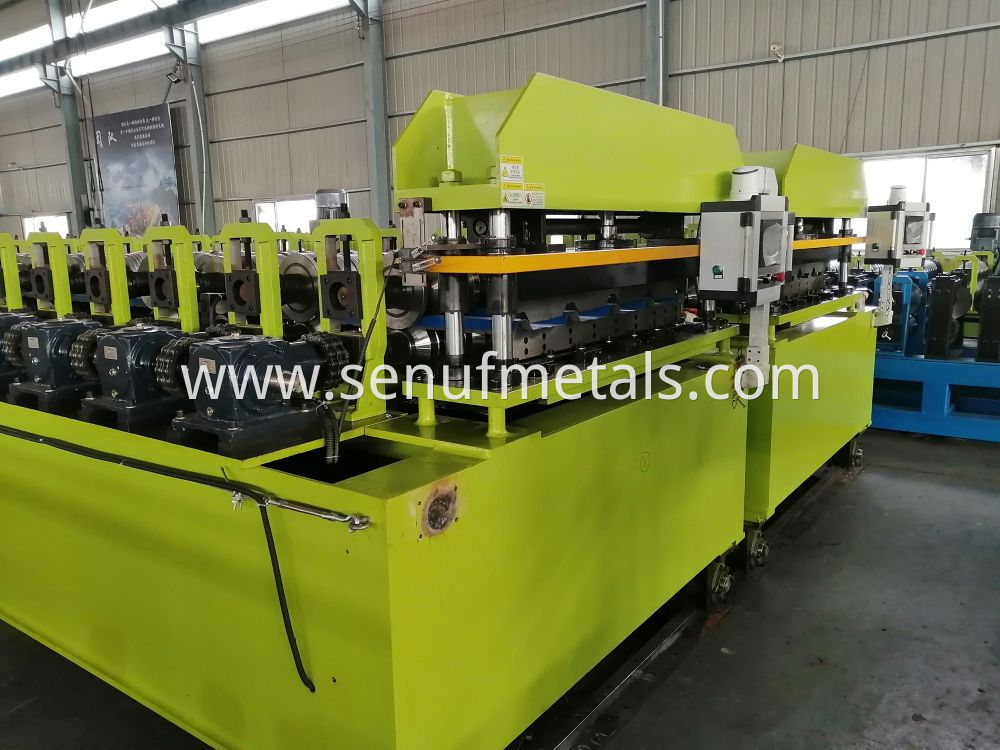

- Picture Example:
-
Rugged Rib Exposed Fastener Metal Panel forming machine
This R101 lamina roll former is popular in Mexico, Costa Rica, Hondulas, Guatemala, Colombia, Feeding width 1220mm for R101 and 914mm for R72, ( 59356280, only feed different width raw material, no need to change machine)
Technical Details

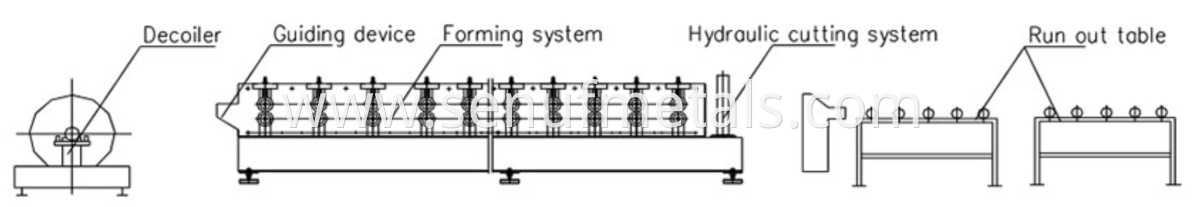

Machine Specifications Weight About 9000kgs Size About 11m x 1.7m x 1.5m (length x width x height) Color Main color: blue Warning color: yellow Suitable Raw Material Material PPGI and PPGL Coils Thickness 0.3-0.8mm Coil width 1220mm Yield Strength 235Mpa Main Technical Parameters Quantity of forming rollers stations 22 Diameter of forming rollers shafts 80mm Roll Forming Speed 15-20m/min Forming rollers material No.45 steel, coated with chromed treatment Cutter material CR12 mould steel, with quenched treatment Controlling system PLC and Converter Electric Power requirement Main motor power: 7.5kw Hydraulic unit motor power: 3kw Electric voltage According to customer’s requirement Layout drawing of machine (reference only)

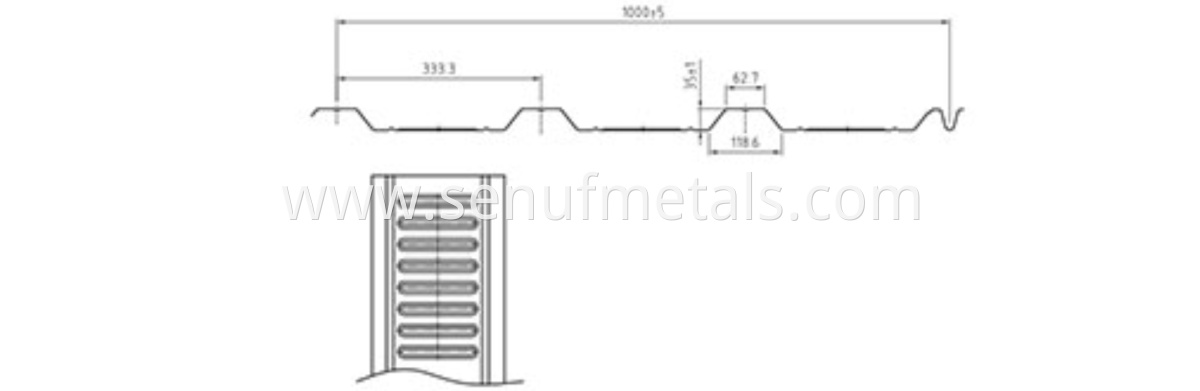

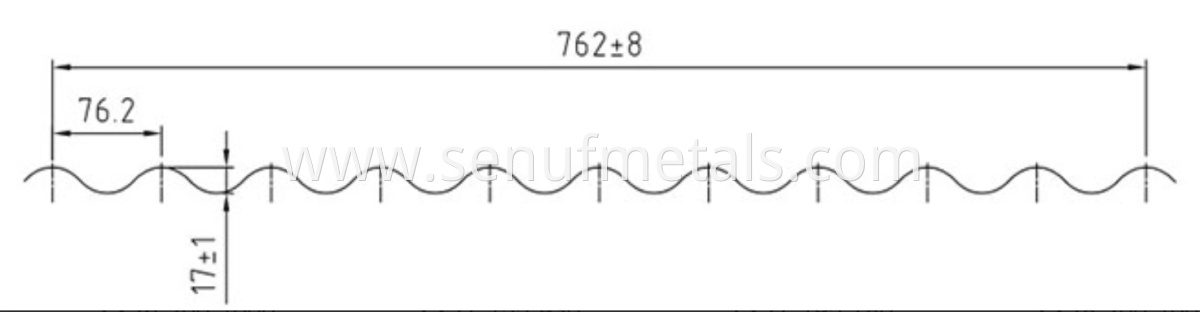

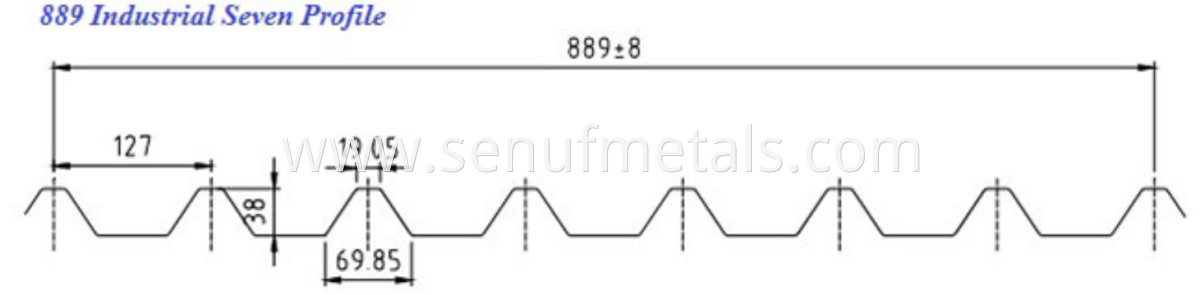

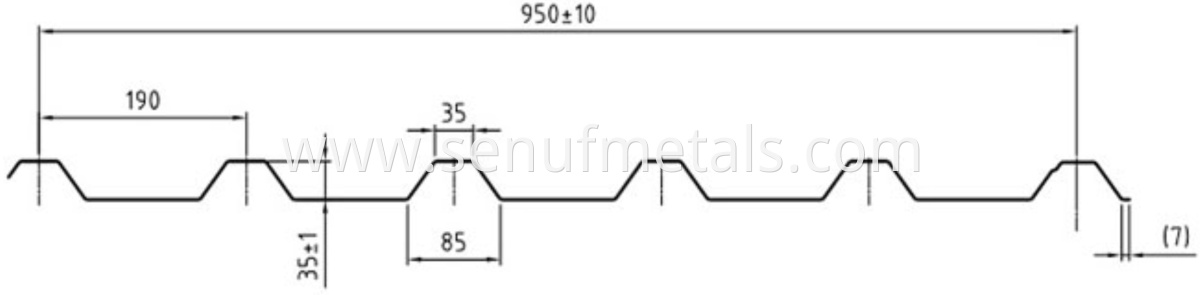

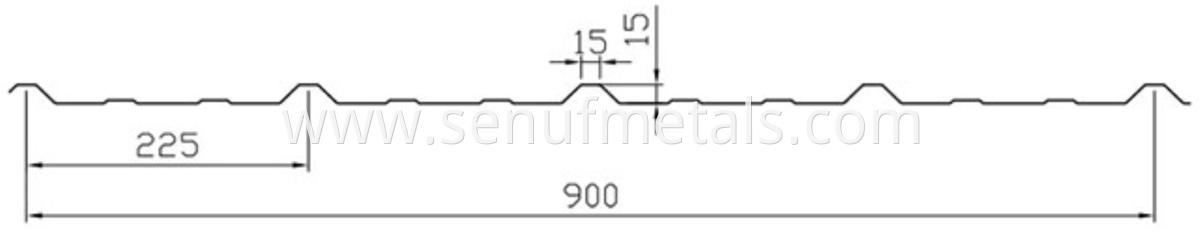

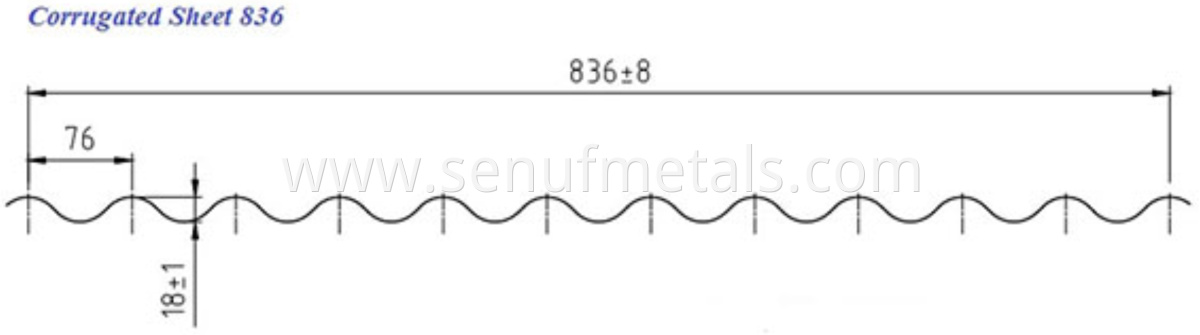

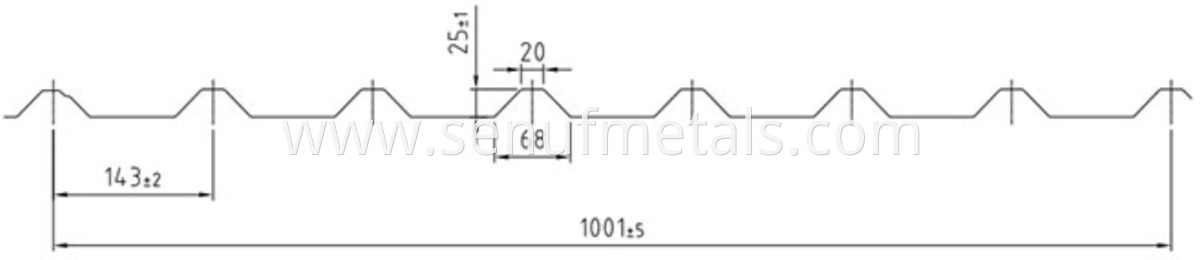

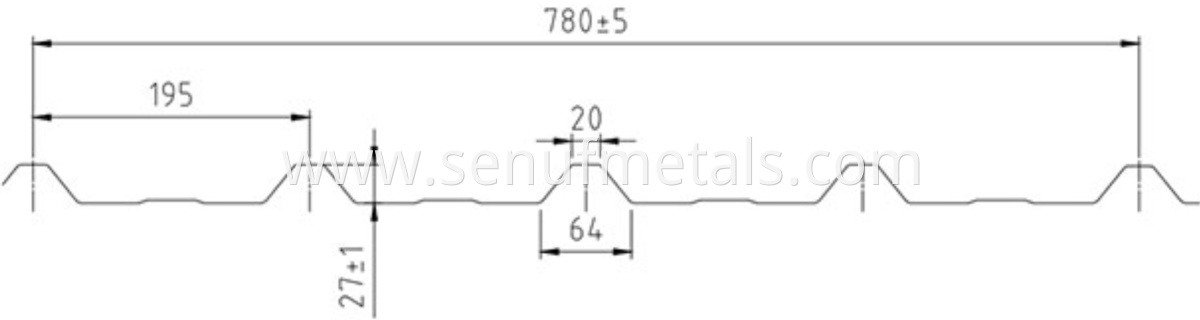

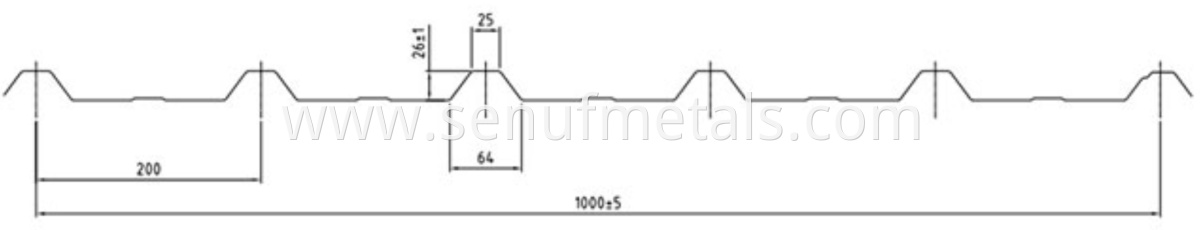

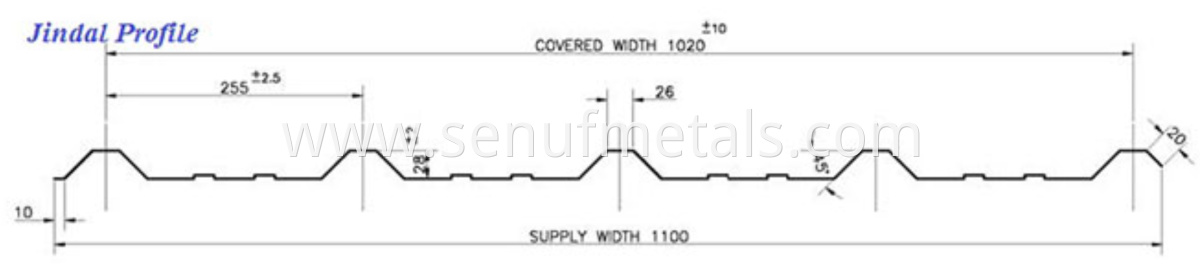

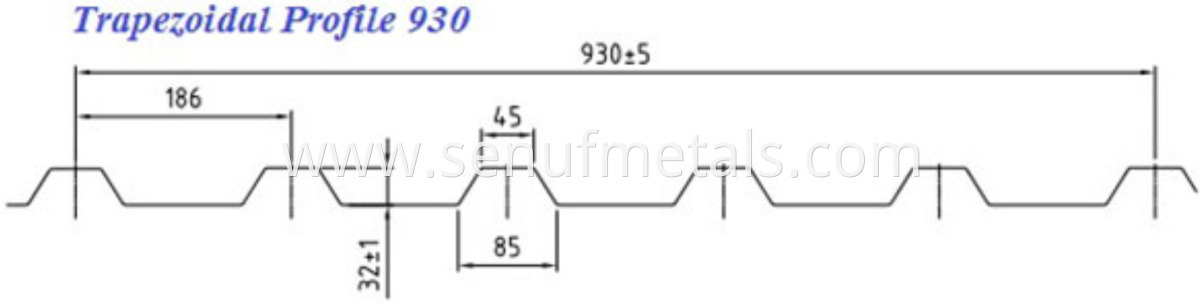

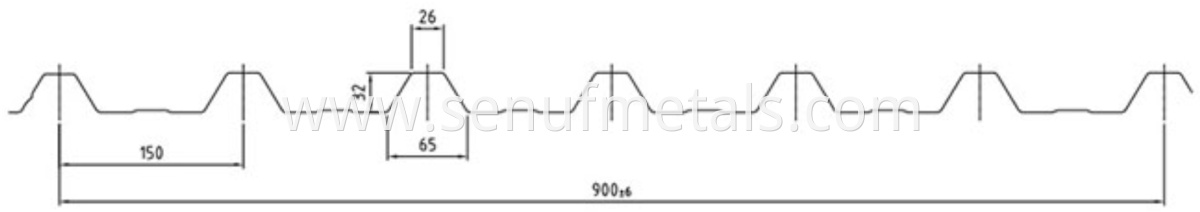

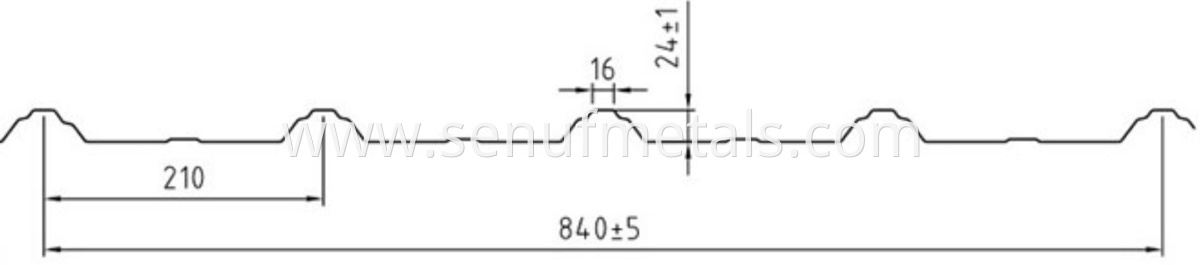

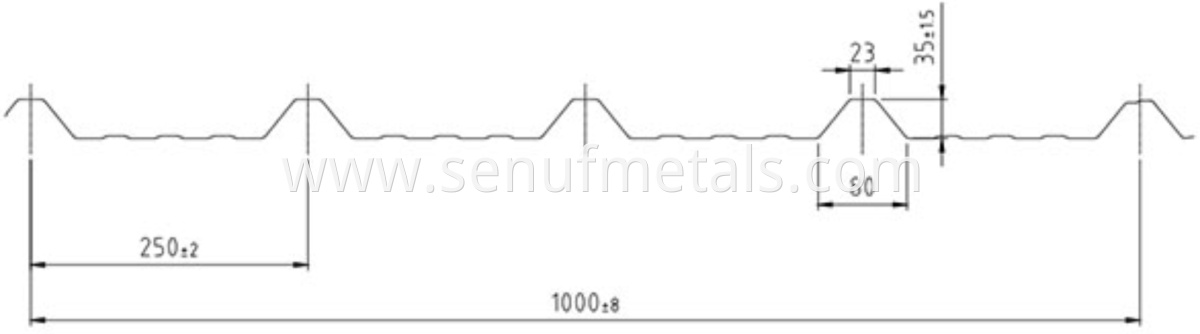

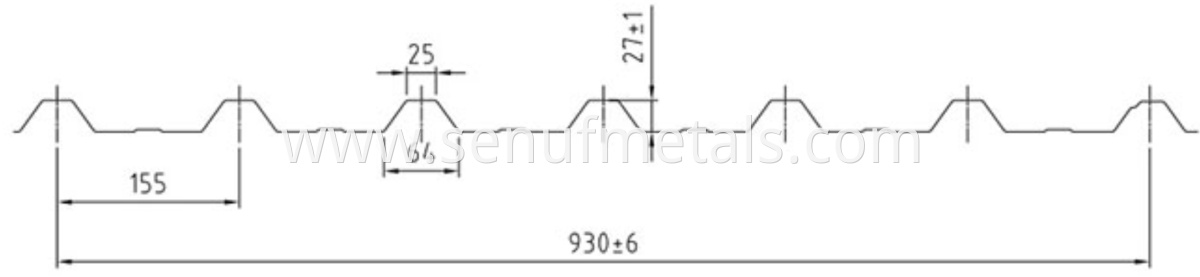

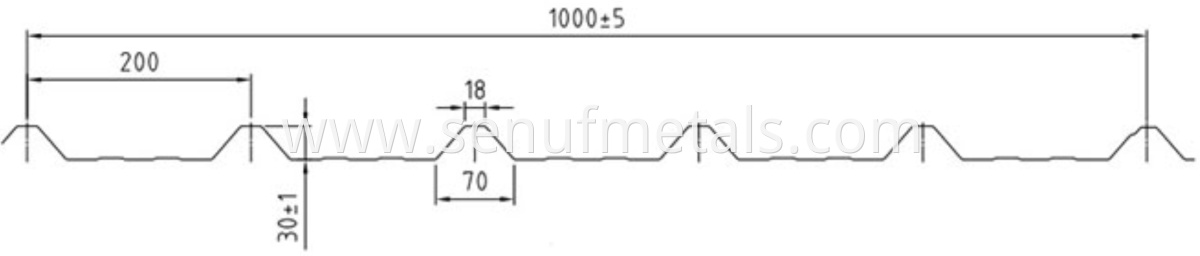

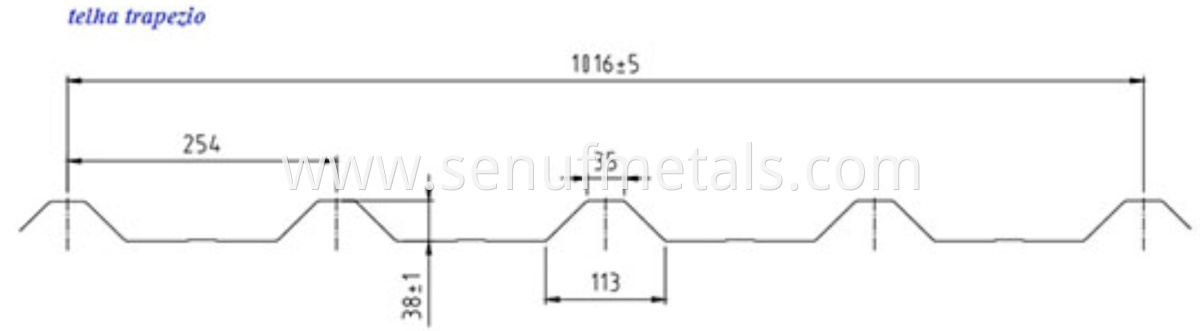

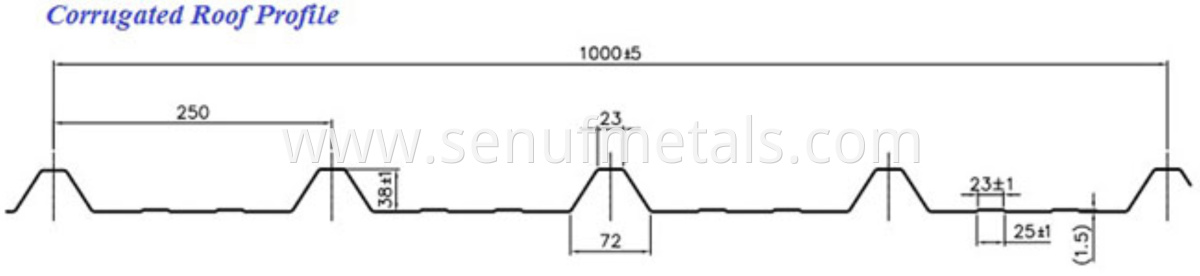

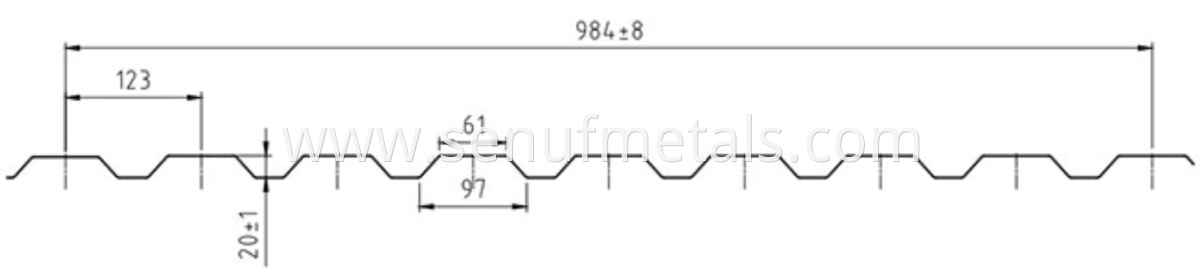

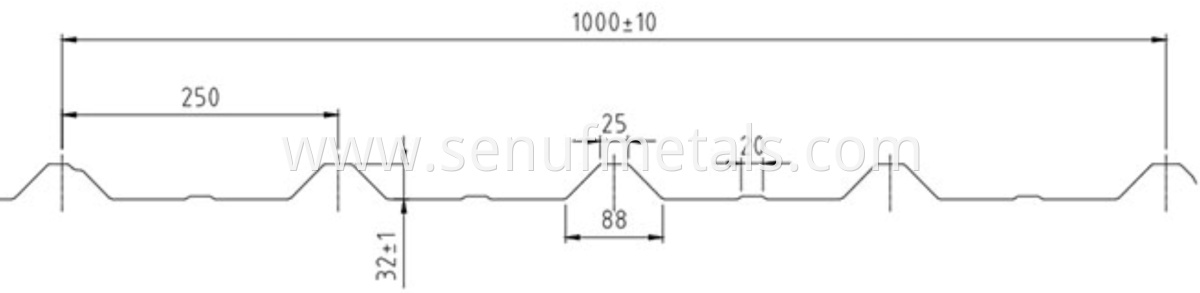

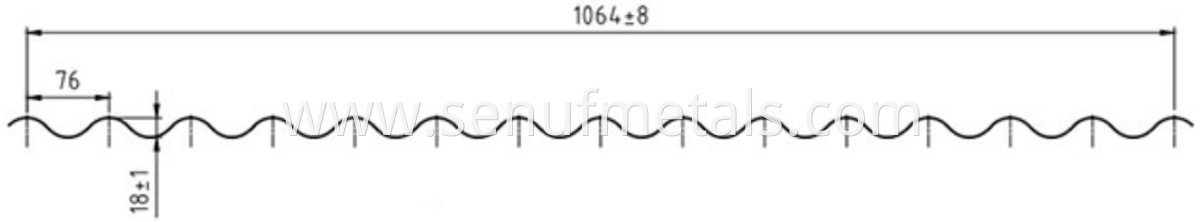

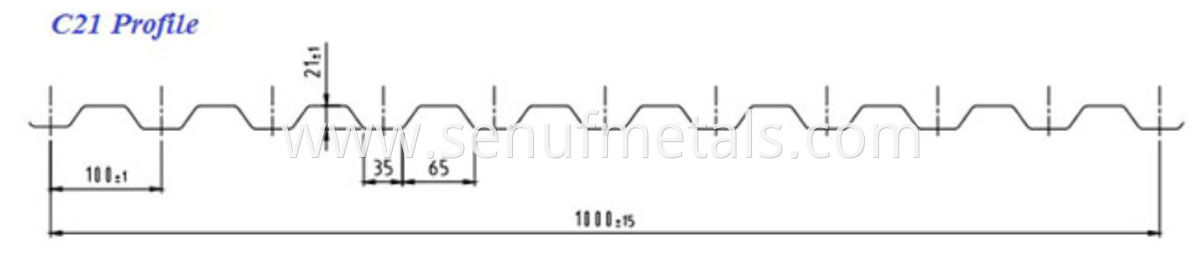

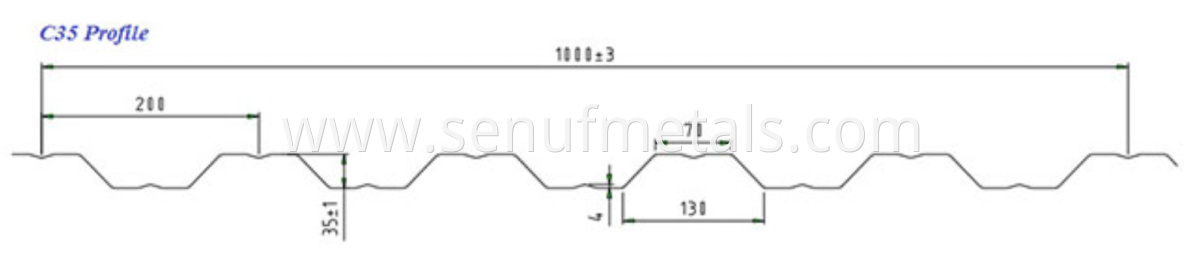

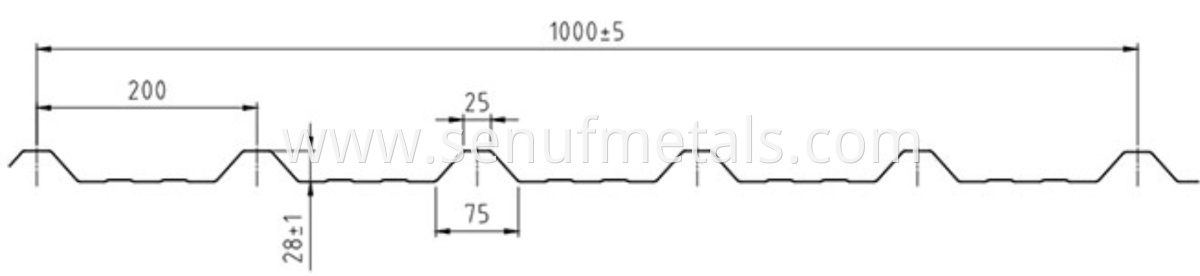

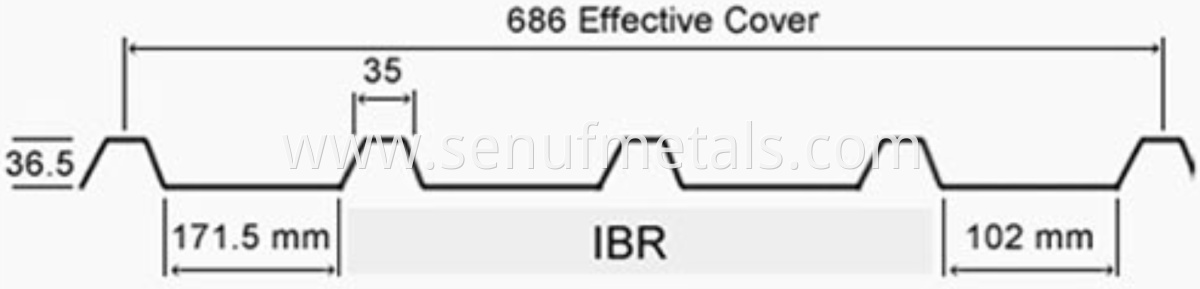

POPULAR PROFILE
We will design roofing Machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.

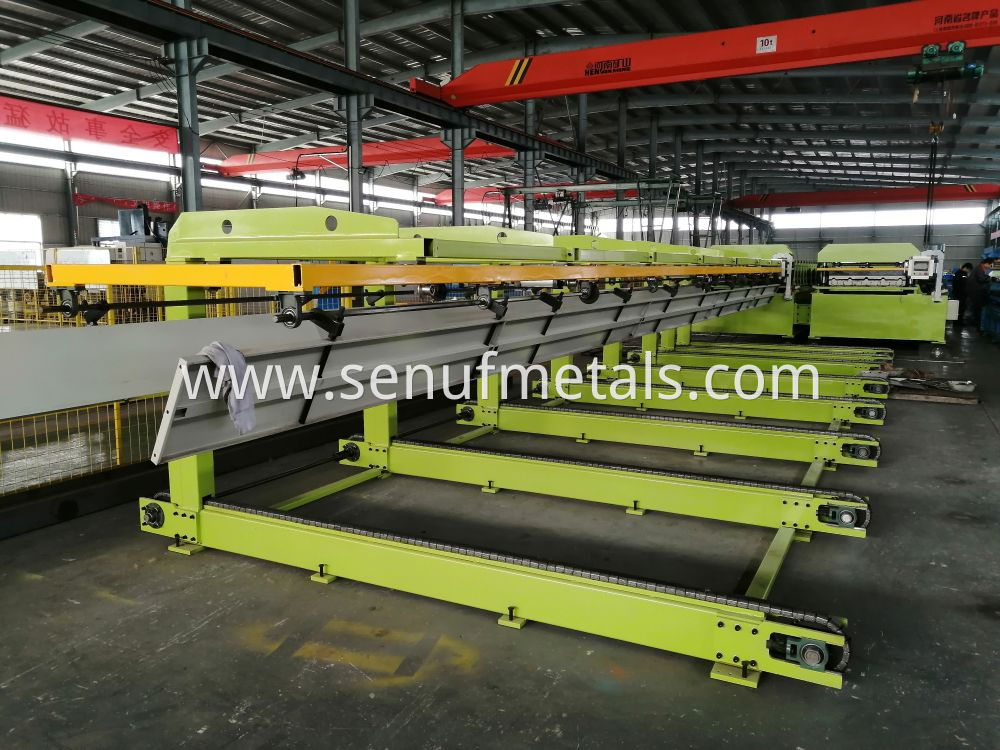

Decoiler- forming-cut – run out
