Roof Panel Rolling Forming machine
- Product Description
Model No.: Trapezoidal IBR steel plates machine
Brand: SUF
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Construction Works
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Philippines, Spain, Chile, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Philippines, Spain, Algeria, Nigeria
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Steel
Use: Wall
Productivity: 50 M/Min
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: Easy To Operate
Rolling Thinckness: 0.2-1.0mm
Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: More Than 5 Years
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, Plc
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, by train, Express
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: XIAMEN, TIANJIN, shenzhen
Payment Type: L/C, T/T, Paypal, D/P, D/A
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
Roof Use Double Layer Corrugated Profile Roofing Machine
Double Layer Roofing Machine of glazed tile and IBR tile rolling machine is designed to make the glazed tile and IBR tile by rolling forming machine in batch fully automatically. Glazed tile roof sheet Double Layer Corrugated Profile Roofing Machine is widely used in many kinds of industrial factory, civilian buildings, It has advantage of pretty appearance, durable using and so on. By the double layer design, it can save cost and space for the manufacturing. Here I will take the following drawing for example to show you how the machine is designed.

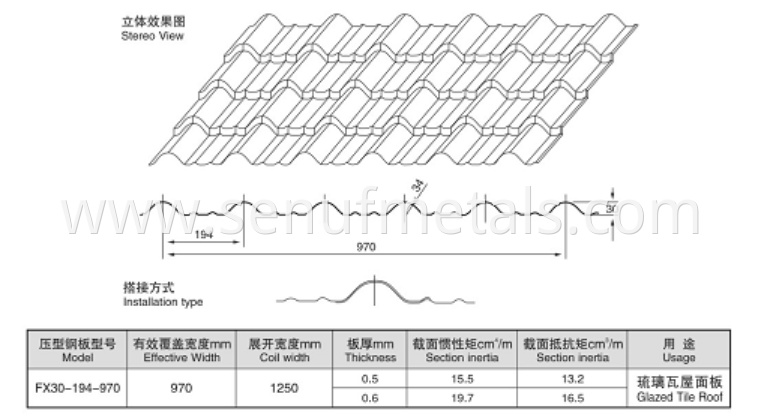

Glazed tile:

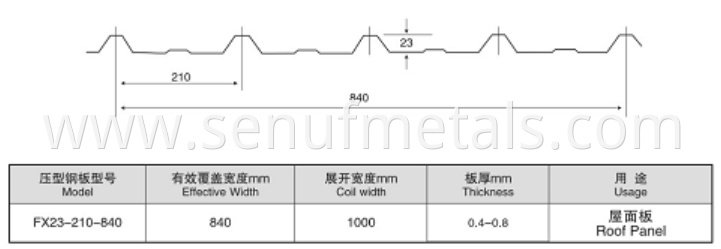

IBR tile:
Roof Use Double Layer Profile Roofing Machine
1. Material of the profile: GI or color steel
2. Thickness range: 0.3-0.8mm
3. Main motor power:7.5kw, AC motor, motor inside of main machine (Brand:Guomao of China) (according the final design)
4. Machine Voltage, Frequency, Phase: 380V/50Hz/3Phase or customized
5. Roll station: about 18 stations down layer and upper roller stations 16
6. Roller material: 45# steel with chromed
7. Shaft diameter: ￠70mm material: 45# steel with quenching and tempering
8. Machine Roll Forming speed: 15m/min
9. Transmission: by chain, one inch, single line
10. Roll former has leveling bolts in the base for adjust the leveling
11. Machine base frame adopt H beam welding steel
12. In the main Roll Forming Machine have 2 buttons for emergency stop if happen any malfunction.
13. Machine adopts new station to make machine more strong
14. To avoid accidents, all of drive part adopt protect cover
15. Color of machine: Blue and yellow (or base on customer request)
Meanwhile the customer also ordered the hydraulic Curving Machine using together with the double layer machine
