Mobile shelving making machine & post forming machine
- Product Description
Model No.: SF-307
Brand: SUF
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Other, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Hot Product 2019
Core Component Warranty Period: 2 Years
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Old And New: New
Place Of Origin: China
Warranty Period: 2 Years
Core Selling Point: Easy To Operate
Control Type: Plc
The Press Of Punching Machine: 100t
Voltage: Customized
Certification: ISO
Customized: Customized
Condition: New
Automatic Grade: Automatic
Drive: Hydraulic
Structure: Other
Transmission Method: Hydraulic Pressure
Thickness: 2.0-3.0mm
Forming Speed: 6m/min(including Punching And Cutting)
Driven: Chain
Rollers: 30
Rollers Material: Cr12
Motor Power: 15kw*2
Shaft Diameter And Material: ￠95 Mm, Material Is Gcr15
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, FUJIAN, SHANGHAI
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
Mobile shelving making machine & post forming machine
Material:
Material thickness: 2.0-3.0mm,
Applicable material: GI, cold roll steel, with yield strength G340-550Mpa.

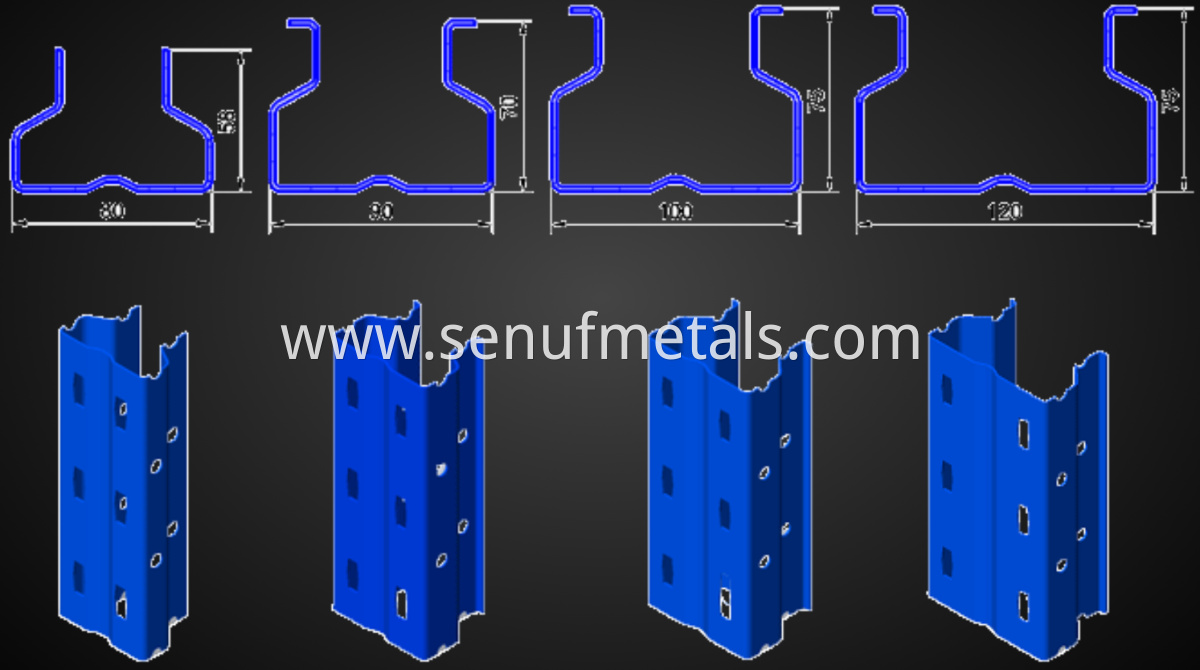

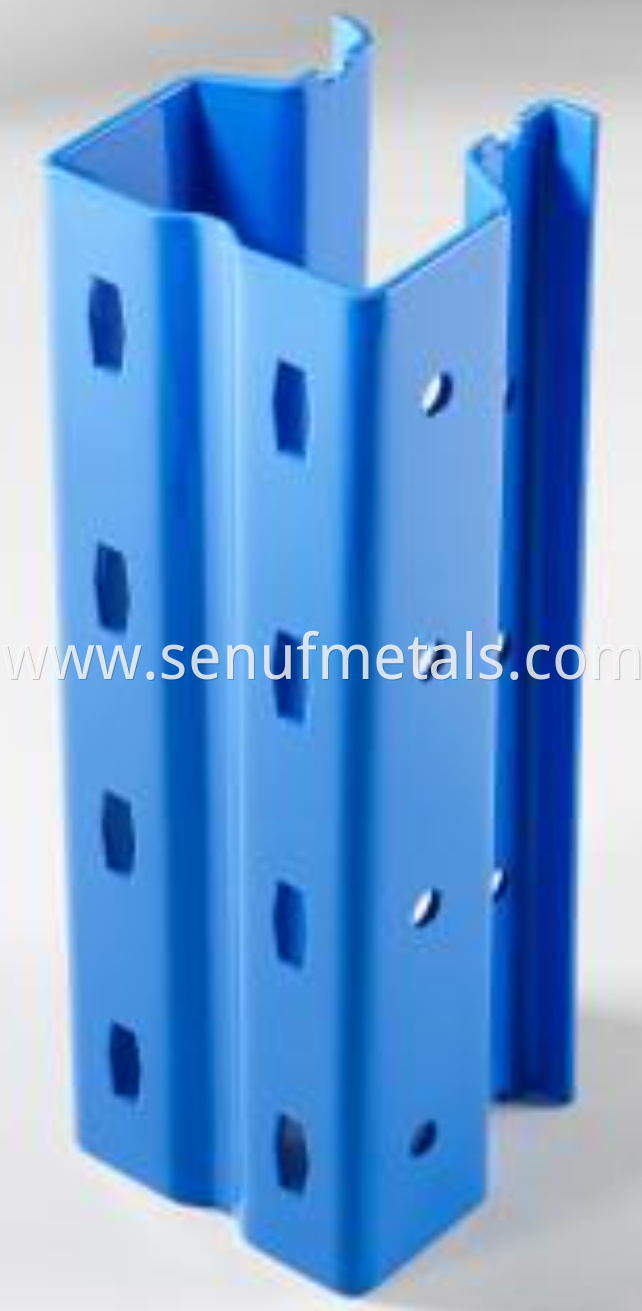

Sketch of upright

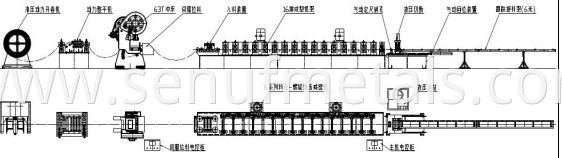

Working Process:

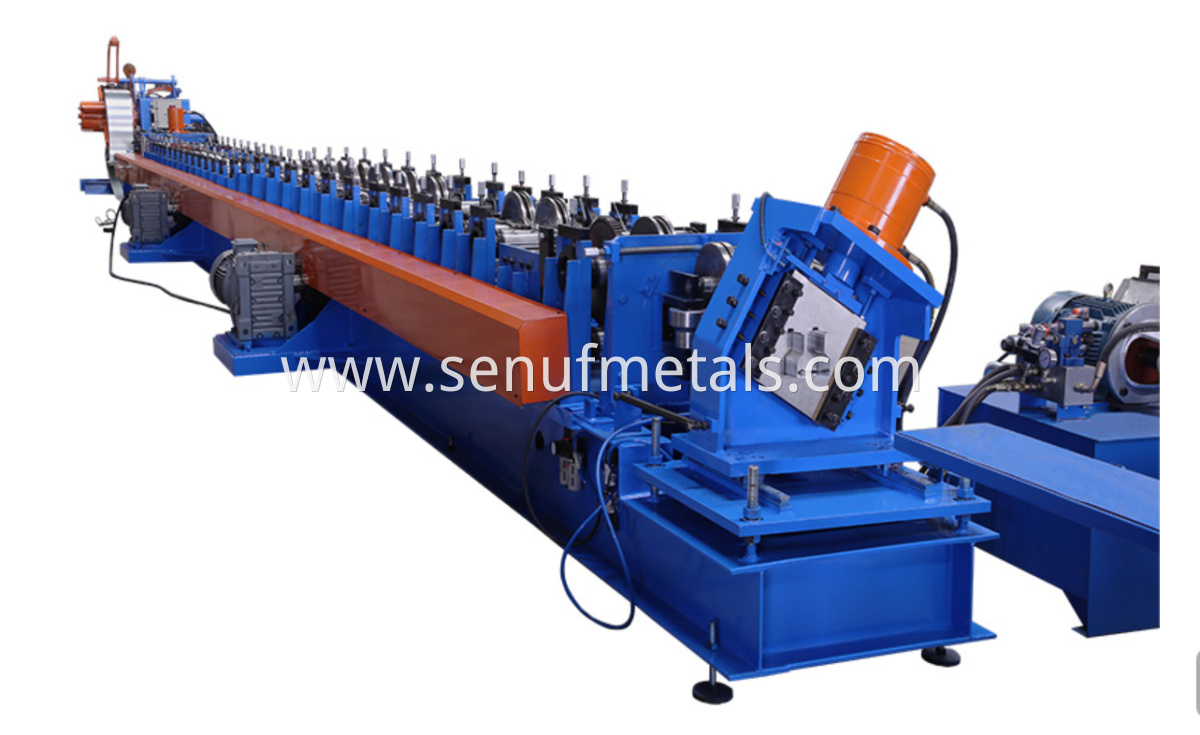

Upright Rack Roll Forming Machine
Introduction
The rack Roll Forming machine consists of de-coiler, servo feeder, hole press, main roll forming machine and hydraulic shear units. The products made by rack roll forming machine are used as racks and shelves for supporting the daily commodities in supermarket, shops and factory warehouse.
Used for : Tire rack, bicycle display rack, mobile ladder, rack-supported mezzanine, structural mezzanine.
Machine Components:

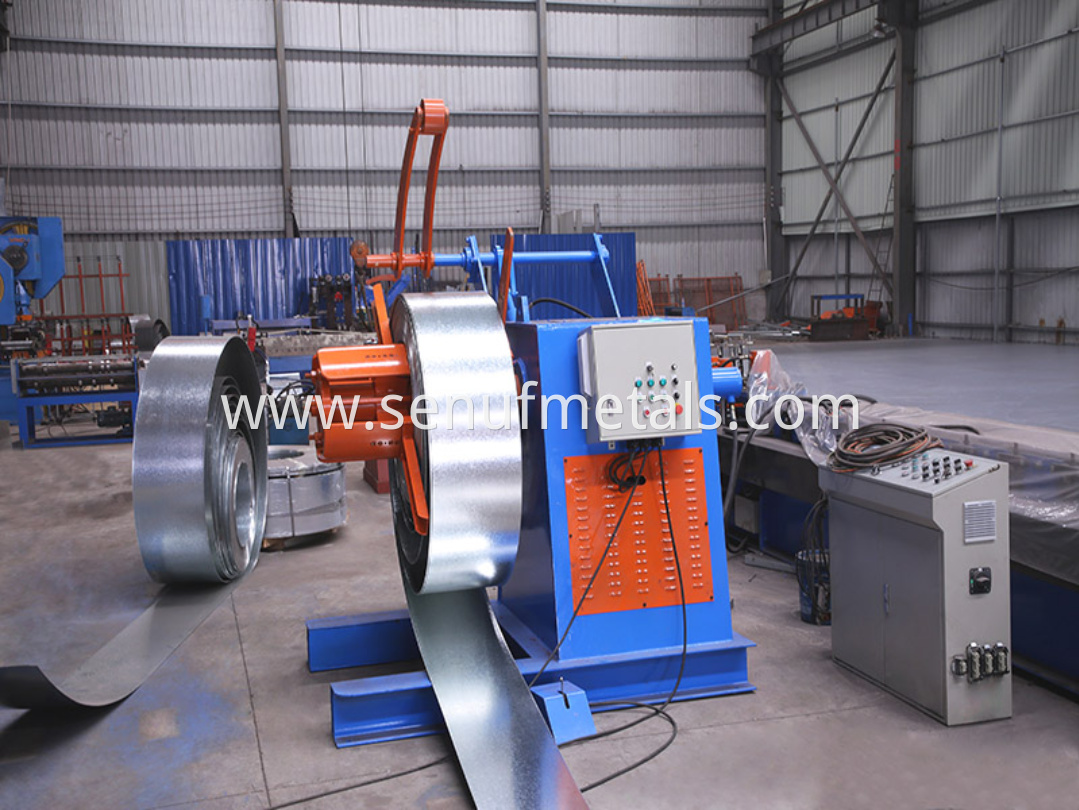

① 5 tons hydraulic Decoiler:
Hydraulic control steel coil inner bore shrinkage and stop ,
Max. feeding width: 600mm,
Coil ID range: 508±30mm, OD: 1500mm,
Max capacity: 5 tons, motor: 3kw, frequency speed control,
Oil pump motor: 3kw, with press arm,
Add automatic feeding power and self-stop device

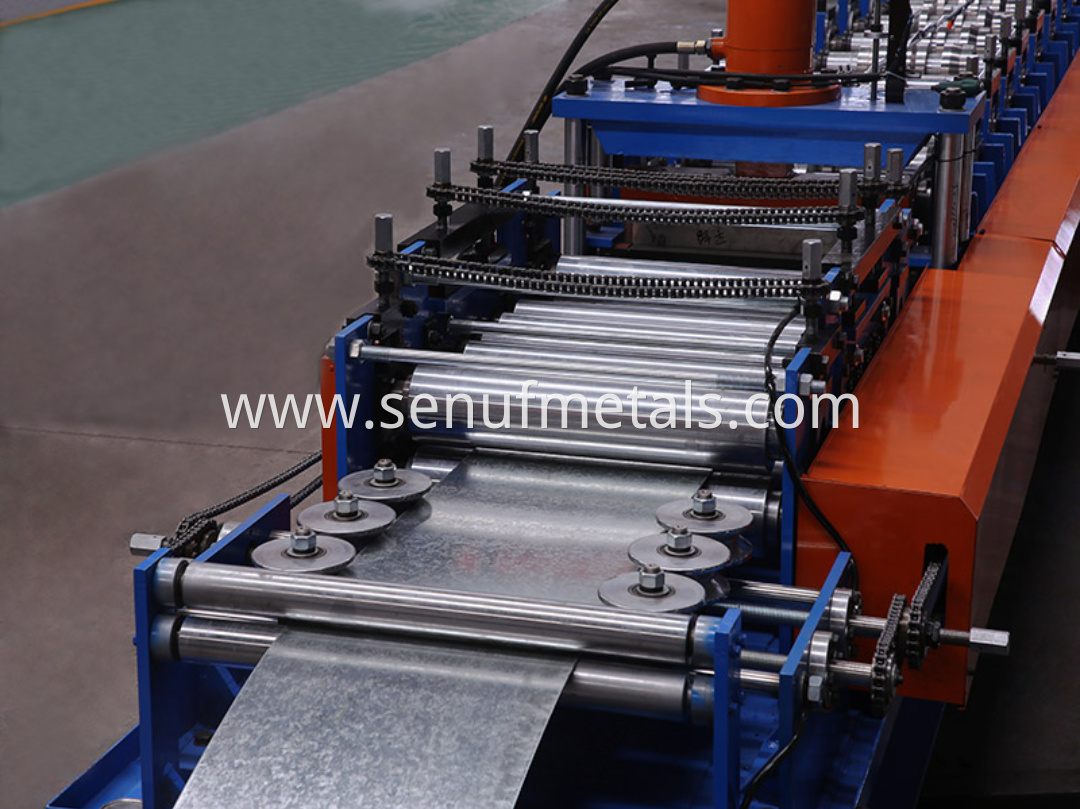

② Leveling System:
Up 3+ Down 4, totally 7 shafts leveling device,
With feeding material guide, body frame made by H450 type steel by welding,
Wall panel thickness: 20mm, Q235,
Shafts manufactured by 45#steel, diameter 90mm, tone plated with hard chrome coated, precision machined.

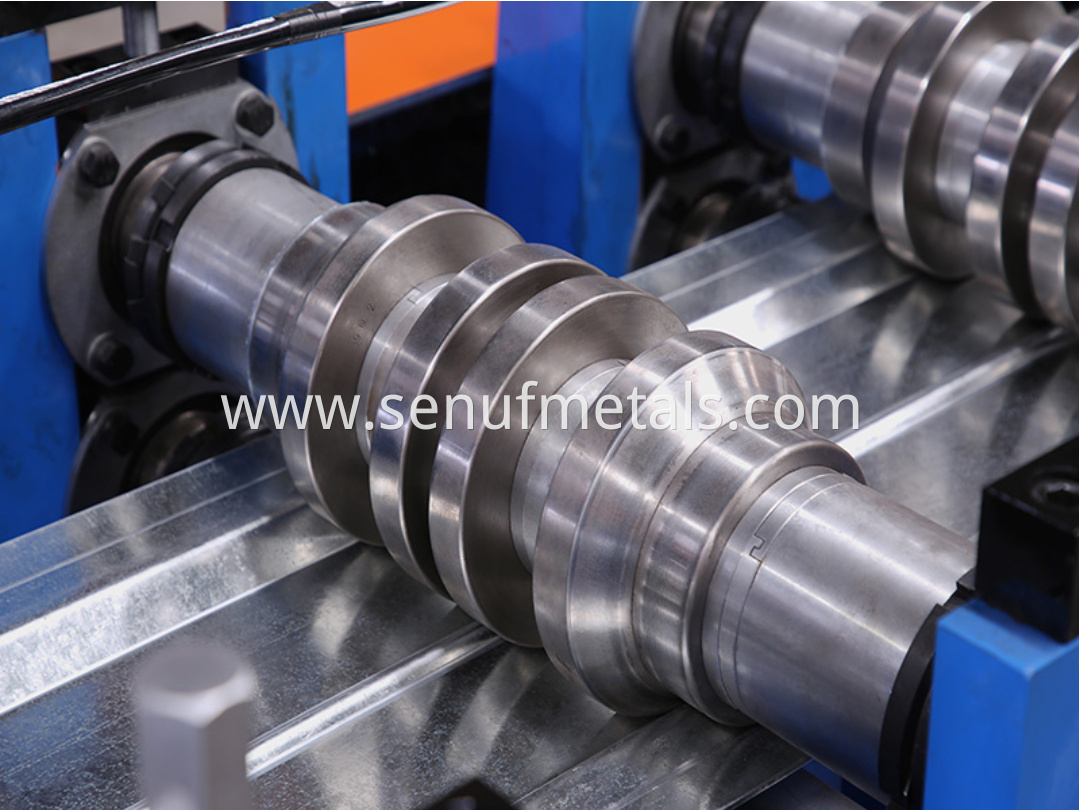

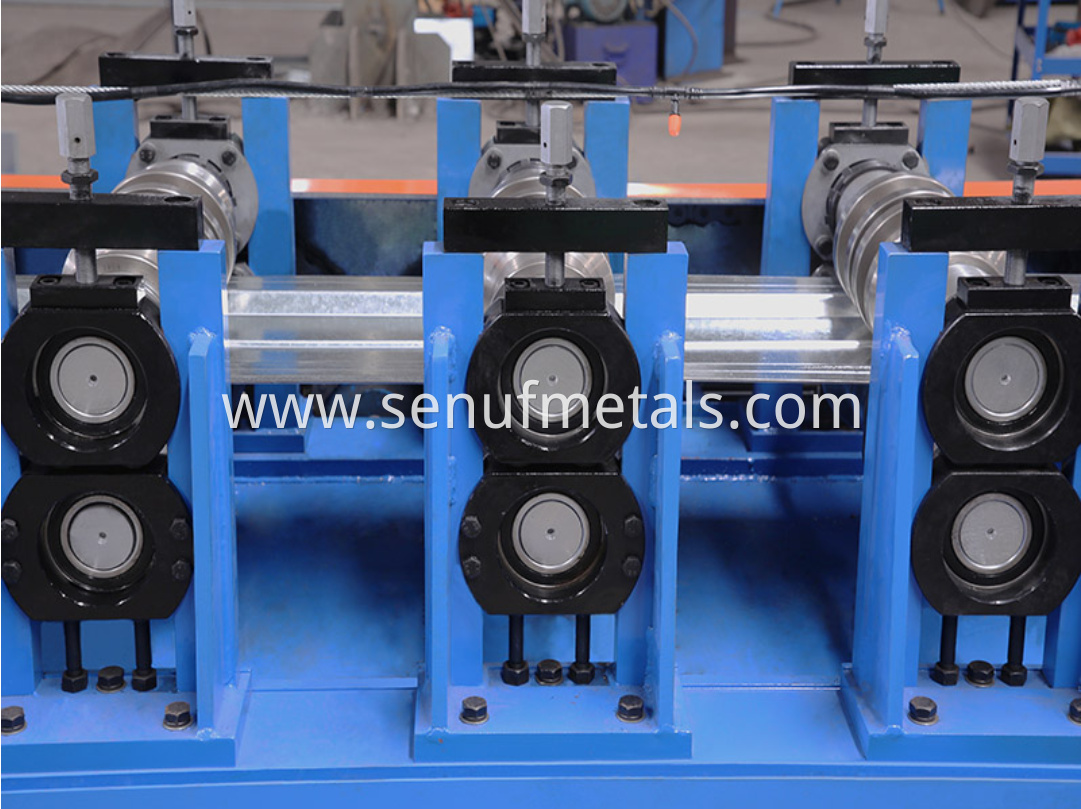

③ Main forming machine:
Body frame made by H450 steel by welding,

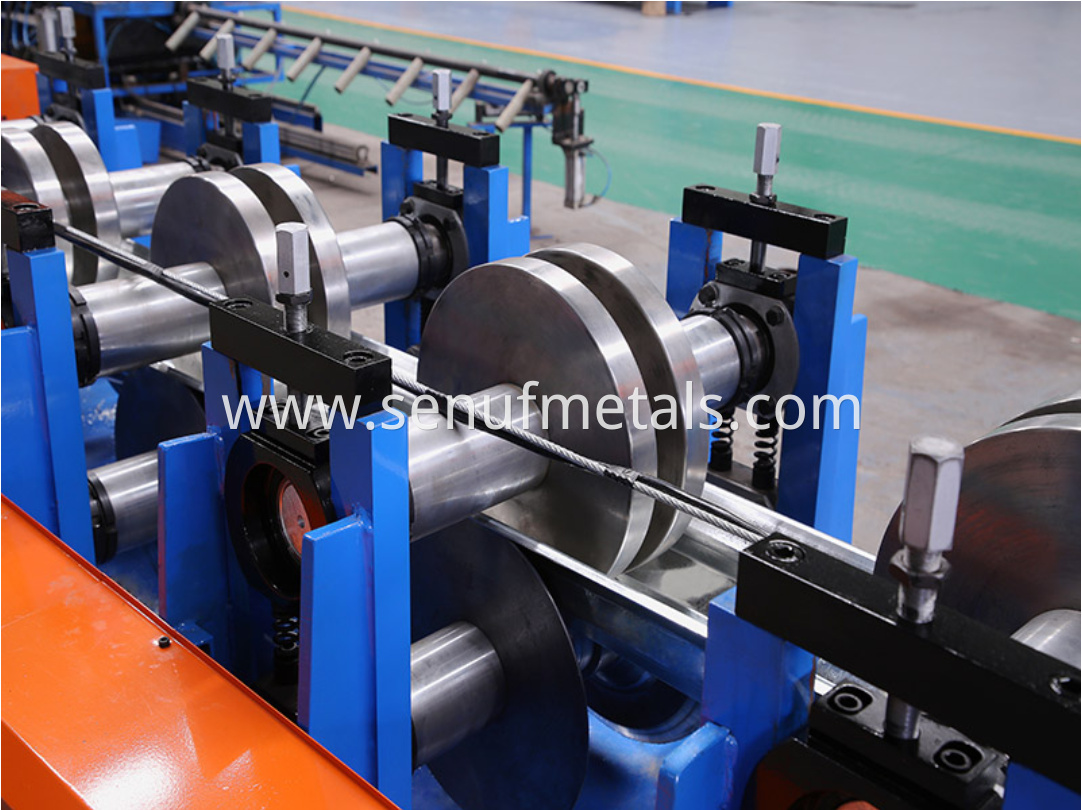

Rollers manufactured by CR12 steel, CNC lathes, heat treatment, hard chrome coated, with thickness 0.04mm, surface with mirror treatment (for longer working life and anti-rust),
Shafts diameter 95mm, precision machined,
Gear / Sprocket driving, 30 steps to form,
Main motor: 15kw*2, frequency speed control,

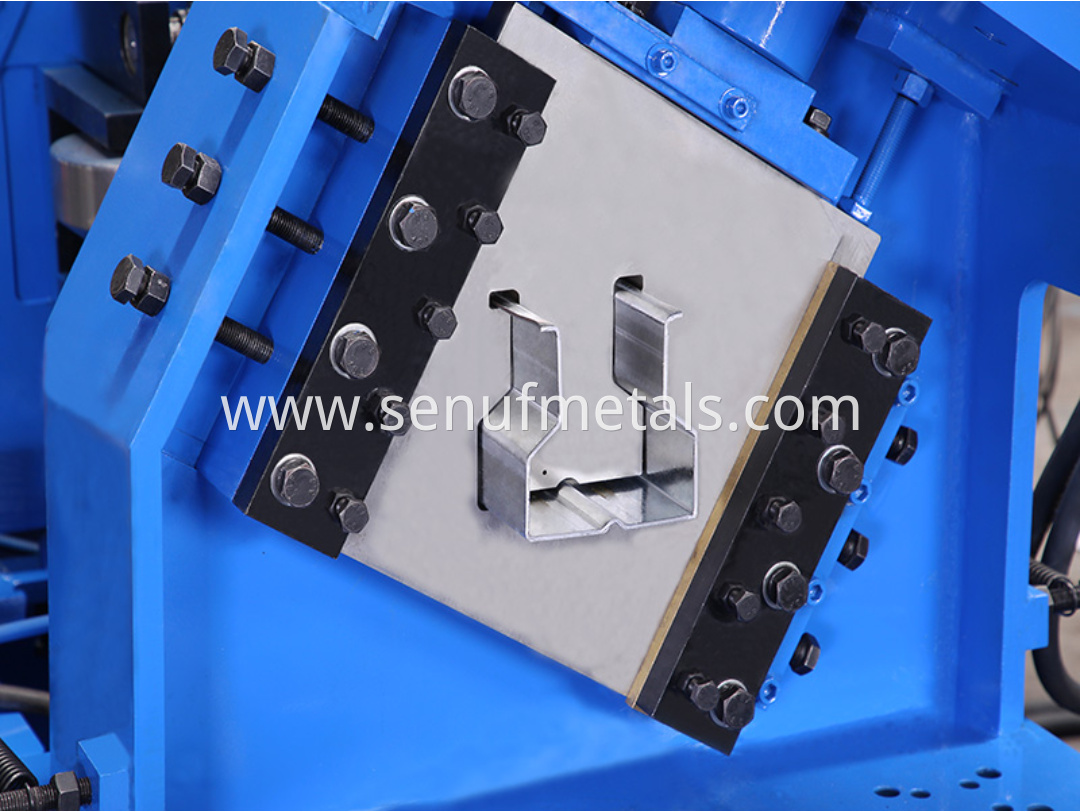

④ Hydraulic cutting device:
Post cut, stop to cut, twp pieces of cutting blades, no blanking,
Hydraulic motor: 7.5kw, cutting pressure: 0-14Mpa,
Cutting tool material: Cr12Mov(=SKD11 with at least one million times of cutting life), heat treatment to HRC58-62 degree,

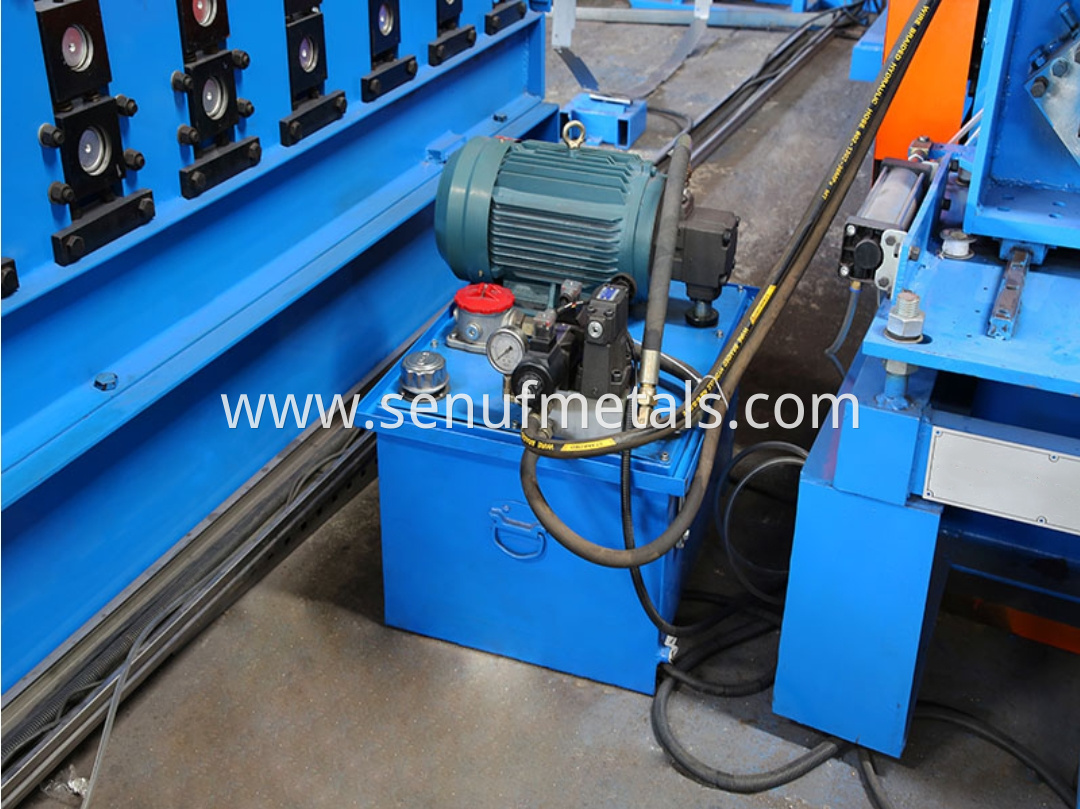

The cutting power is provided by the independent engine hydraulic station,

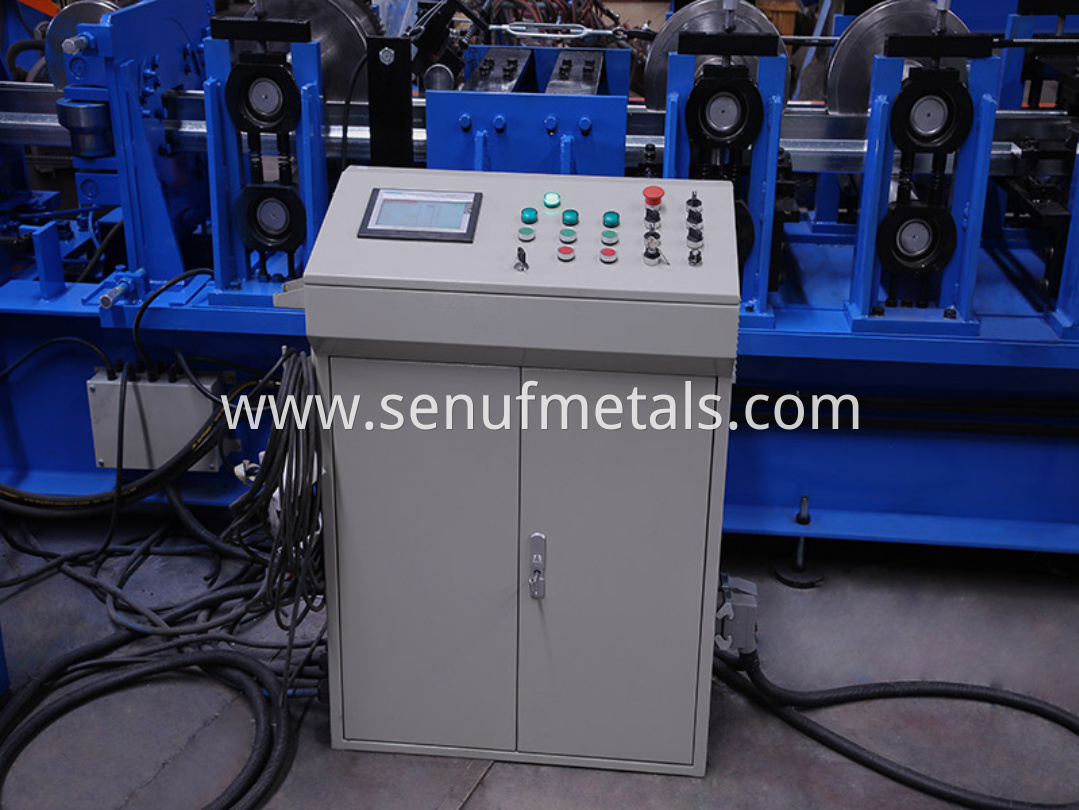

⑤ PLC control system:
Control the quantity and cutting length automatically,
Input the production data (production batch, pcs, length etc.) on the touch screen, then the machine can produce automatically,
Combined with: PLC, inverter, touch screen, encoder, etc.

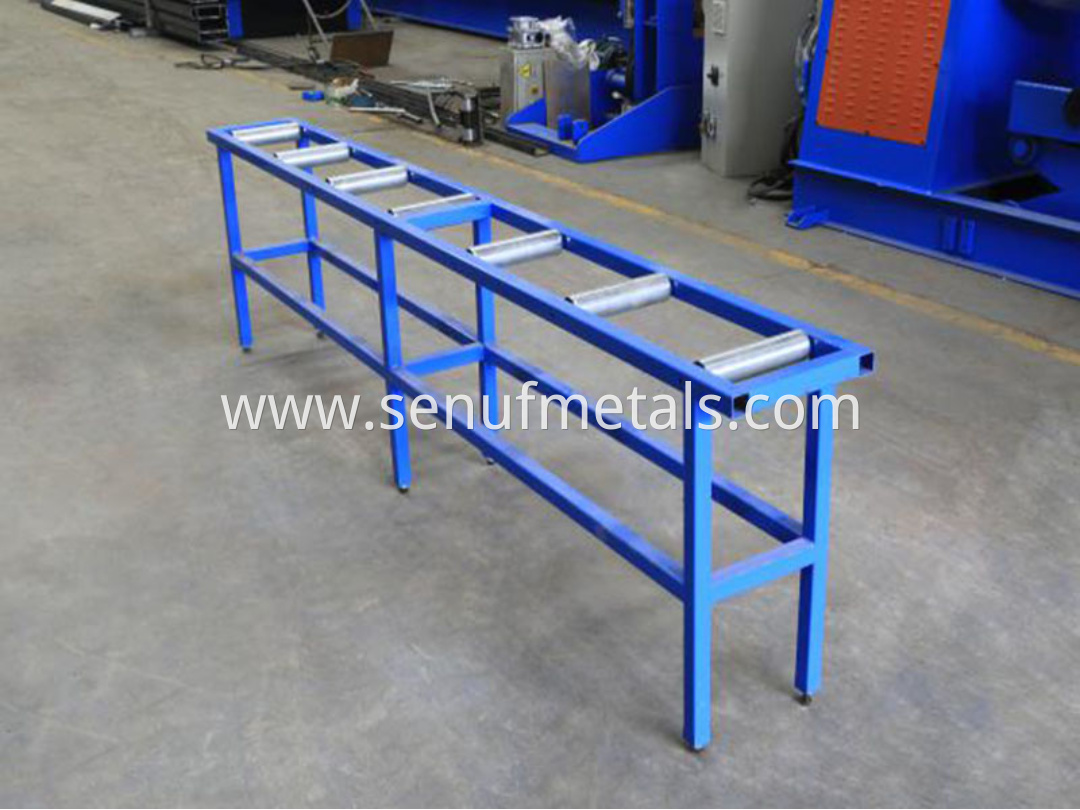

⑥ Exit Rack:
Un-powered, two units, with rollers on it for easy movement.

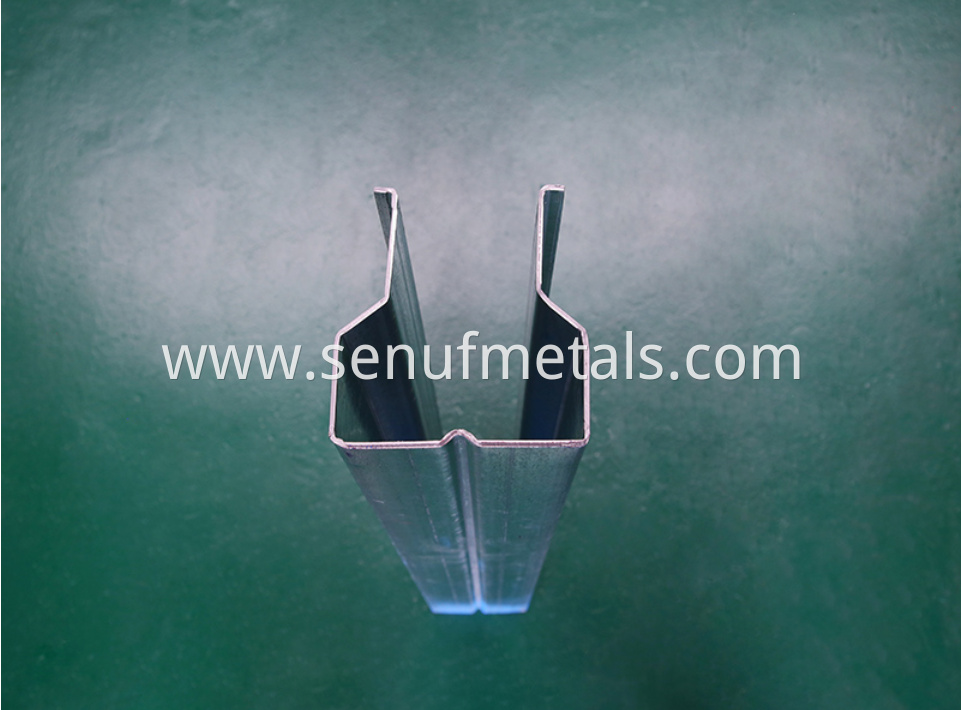

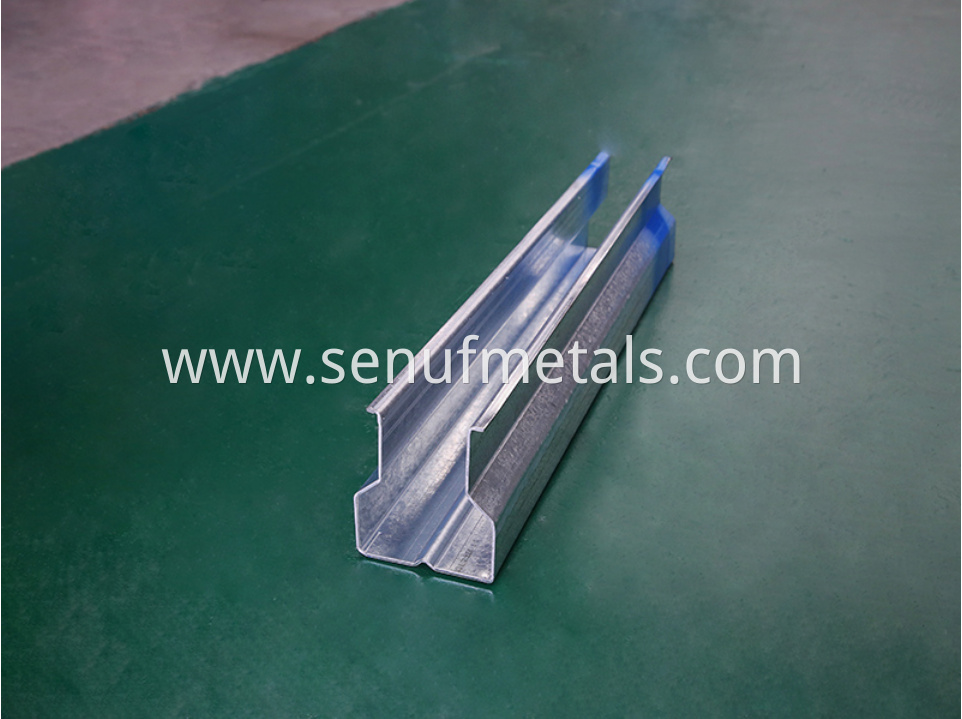

⑦ Samples:
After-Sale Service:
1. The warranty is 12 months after the client receives the Machines, within the 12 months, we will courier the replacement parts to the client for free,
2. We offer technical support for the entire life of our machines,
3. We can send our technicians to install and train the workers in the clients’ factory.
