Lintel Roll Forming Machines
- Product Description
Model No.: SF-308
Brand: SENUF
Certification: CE
Hole: with Hole
Feature: Corrosion Resistance
Surface Treatment: Hot Galvanizing
Material: Carbon Steel
Type: Tray
Delivery Time: 60 Days
Floor Space: 29*3M
Motor Power: 52kw
Advantage: Sheet Material Coil Material Can Be Out. Free Conversion Of Various Specifications, No Need To Change The Roller
Packaging: many kinds packing as customers demand/ export package
Productivity: 50Tons/ 8 hours
Transportation: Ocean, Land, Air
Place of Origin: hebei china
Supply Ability: 500 SETS
Certificate: ISO9001
HS Code: 84552210
Port: Tianjin, Shanghai, Ningbo
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- many kinds packing as customers demand/ export package

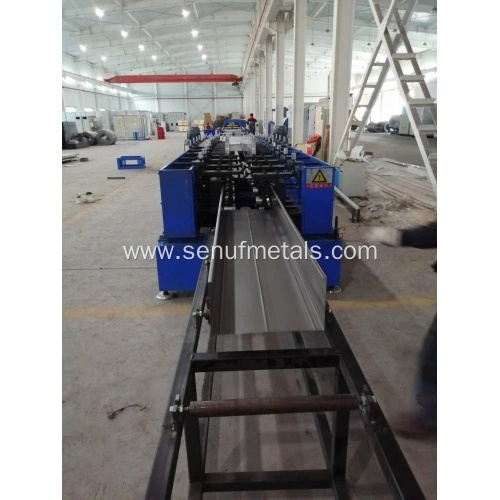

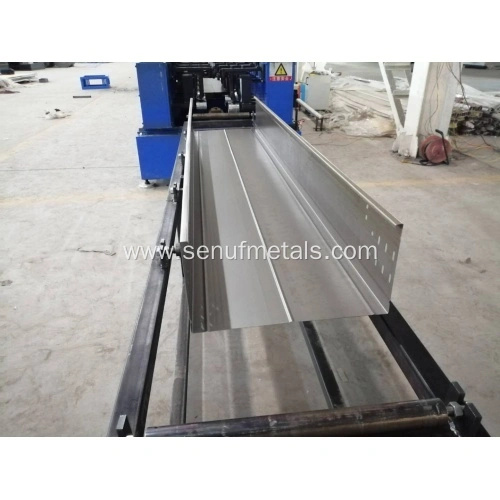

Steel channel lintel cable tray is a structural horizontal block that spans the space or opening between two vertical supports. It can be a decorative architectural element, or a combined ornamented structural item. It is often found over portals, doors, windows and fireplaces. All lintels are produced by Galvanized steel or Stainless steel, it make the construction system more and more strong.
Specifications: 100-800mm
Rolling thickness: 0.8–2.0mm
Rolling speed: 6-8 meters / per minute
Host form: Cantilever
Operation mode: PLC control, manual control, remote control control

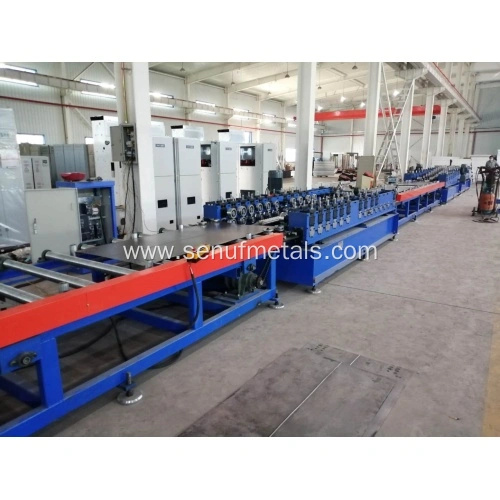

Bridge molding machine One sets: open – calibration + punching + shear – Siamese conversion platform – small side molding machine – 6M convey platform – molding – outlet
IN PARAMETER
Decoiler with straightener
Width：≤456mm
Thickness:≤2.5mm
Inner diameter: 450-530mm
Max loading weight:2T
Rollers of straightener: 7 rollers
Punching machine
Width:≤456mm
Thickness:≤3.2mm
Material:Mild steel
Punching force:125T
Power:15KW

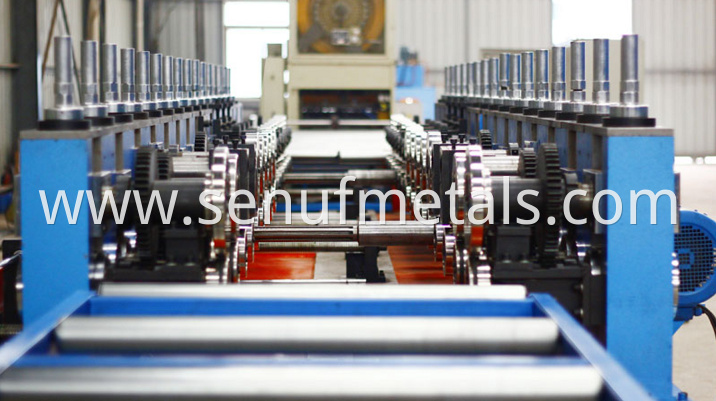

Forming machine and Hydraulic cutting
Roller number: 11 sets
Drive type:Gear drive
Diameter of forming rollers:φ75m
Speed: 10-20 m/min
Material of forming rollers:Gcr15
Hardness :HRC58-62°
Main motor:11Kw.control by frequency converter
Hydraulic cutting
Cutting type:hydraulic cutting
Pump:7.5Kw
Cutting according to the setting length
Collecting Table
