IBR/Trapezoid roof sheet roll forming machine
- Product Description
Brand: SUF
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Other, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Steel
Use: Roof
Productivity: 30 M/Min
Place Of Origin: China
Warranty Period: 5 Years
Core Selling Point: High-Accuracy
Rolling Thinckness: 0.3-1mm
Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm, Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 3 Years
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, Plc
Packaging: Naked OR CUSTOMIZATION
Productivity: 500 sets / year
Transportation: Ocean, Land, Air, by train
Place of Origin: China
Supply Ability: 500 sets / year
Certificate: ISO / CE
HS Code: 84552210
Port: Tianjin, Xiamen, Shanghai
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- Naked OR CUSTOMIZATION
Metal IBR Trapezoidal Roof Sheet Roll Forming Machine
We are among the leading names in industry, engaged in producing an exclusive range of Ridge Cap Roof Sheet Roll Forming Machine. We have developed Double Layer Roof Sheet Roll Forming Machine as per the industry standards. Owing to Floor Deck Roll Forming Machine easy manufacturing process, excellent performance and effective solutions, Purlin Changeable Roll Forming Machine are widely appreciated.
Technical parameters:
1. Raw materials: Galvanized coils, Pre-painted coils, Aluminum coils
2. Material thickness range: 0.35-0.8mm
3. Forming speed: 10-15m/min
4. Rollers: 16-20 rows(according to drawings)
5. Material of rollers: 45# steel with chromed
6. Shaft material and diameter: 75mm, material is 45#steel
7. Material of body: 400H steel
8. Wall panel: 20mm Q195 steel(all with electrostatic spraying)
9. Controlling system: PLC
10. Main power: 7.5KW
11. Material of cutting blade: Cr12 mould steel with quenched treatment
12. Voltage: 380V/3Phase/50Hz (customized)
13. Total weight: about 4 tons
5 Tons Hydraulic Decoilers:
Inner Diameter: 450-600mm
Outer Diameter: 1500mm
Coil Width: 1300mm
Leveling:
Keep materials straight, and the width can be adjusted by manual.
Main Roll Forming:
1. Machine frame: 400H Steel
2. Transmission: Chain
3. Forming steps: 16-20 steps
4. Shaft Diameter: 75mm
5. Roller Material: 45# steel with chromed
6. Forming Speed: 10-15m/min
7. Motor: 7.5KW

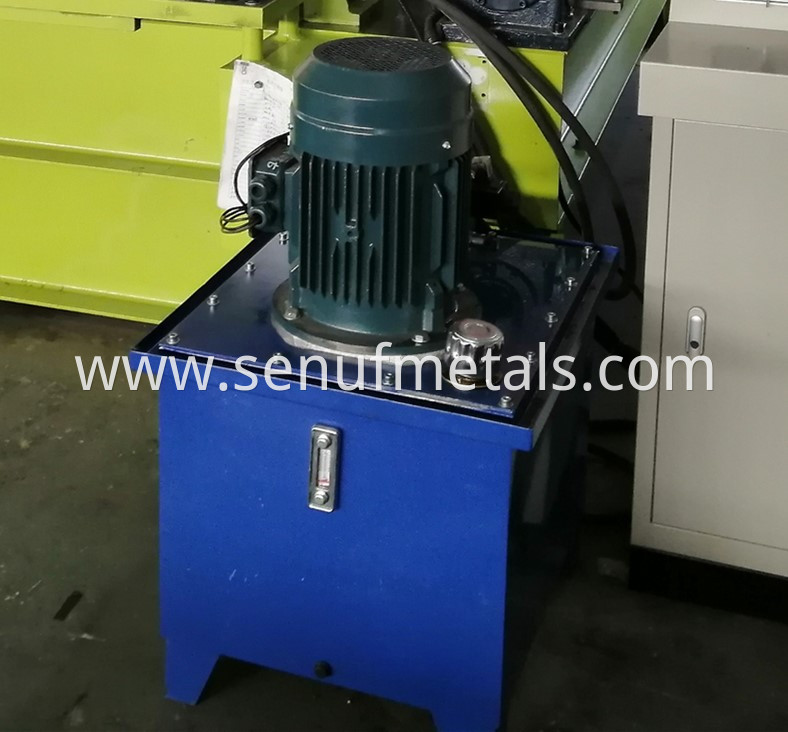

Hydraulic station:
1. Power of the oil pump: 4kw
2. Hydraulic oil :40#

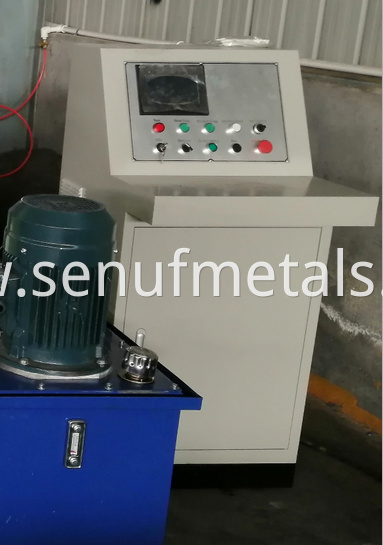

Control System: PLC
Brand: Delta
Language: Chinese and English (as required)
Function: Automatic control the cutting length and quantity, easy to operate and use.

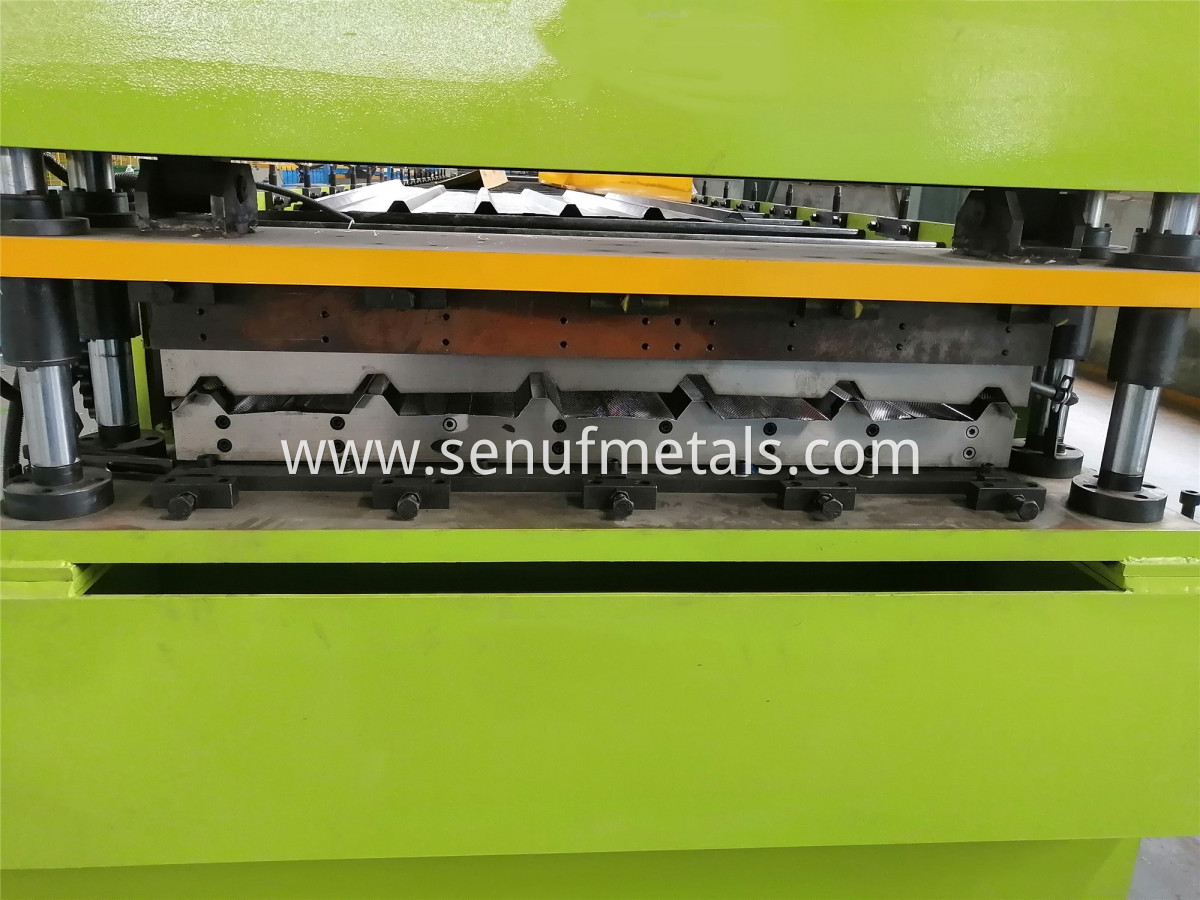

Hydraulic cutting:
Cutter Material: Cr12 mould steel with quenched treatment
Cutting Tolerance: ±1.5mm
