IBR 686 /890 Profile Roll Forming MachineS
- Product Description
Model No.: SUF
Brand: SUF
Applicable Industry: Construction Works
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Philippines, Chile, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Spain, Algeria, Nigeria, Egypt
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Steel
Use: Wall
Productivity: 30 M/Min
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: Easy To Operate
Rolling Thinckness: 0.3-0.8mm
Feeding Width: 1200mm, 900mm, 915mm, 1220mm
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2019
Core Component Warranty Period: 1 Year
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine
Controlling System: PLC
Certification: ISO
Usage: Wall
Tile Type: Colored Steel
Condition: New
Customized: Customized
Transmission Method: Hydraulic Pressure
RAW MATERIALS: Galvanized Coils, Pre-painted Coils, Aluminum Coils
Material Of Rollers: 45# Steel With Chromed
Material Thickness Range: 0.35-0.8mm
Rollers: 21 Rows(according To Drawings)
Voltage: 380V/3Phase/50Hz (customized)
Packaging: Naked
Productivity: 500 sets / year
Transportation: Ocean, Land, Air, Express
Place of Origin: China
Supply Ability: 500 sets / year
Certificate: ISO / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, SHANGHAI
Payment Type: L/C, T/T, Paypal
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP, DEQ, DDP, DDU
- Selling Units:
- Set/Sets
- Package Type:
- Naked
IBR 686&890 Profile Roll Forming Machine
The finished product of IBR 686&890 Profile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. Galvanized Metal Decking Roll Forming Machine has the advantage of beautiful, classical appearance and grace taste.
Components:
5 Tons Hydraulic Decoiler
Leveling
Main Roll Forming
Hydraulic station
PLC Control system
Hydraulic cutting
Receving table
Technical parameters:
1. Raw materials: Galvanized coils, Pre-painted coils, Aluminum coils
2. Material thickness range: 0.35-0.8mm
3. Forming speed: 10-15m/min
4. Rollers: 16-20 rows(according to drawings)
5. Material of rollers: 45# steel with chromed
6. Shaft material and diameter: 75mm, material is 45#steel
7. Material of body: 400H steel
8. Wall panel: 20mm Q195 steel(all with electrostatic spraying)
9. Controlling system: PLC
10. Main power: 7.5KW
11. Material of cutting blade: Cr12 mould steel with quenched treatment
12. Voltage: 380V/3Phase/50Hz (customized)
13. Total weight: about 4 tons
5 Tons Hydraulic Decoilers:
Inner Diameter: 450-600mm
Outer Diameter: 1500mm
Coil Width: 1300mm

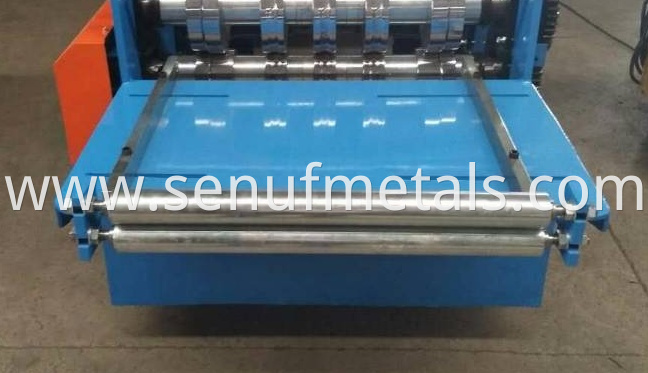

Leveling:
Keep materials straight, and the width can be adjusted by manual.

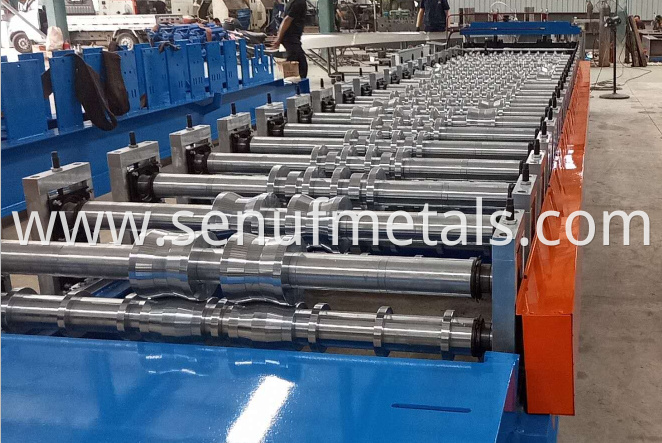

Main Roll Forming:
1. Machine frame: 400H Steel
2. Transmission: Chain
3. Forming steps: 16-20 steps
4. Shaft Diameter: 75mm
5. Roller Material: 45# steel with chromed
6. Forming Speed: 10-15m/min
7. Motor: 7.5KW

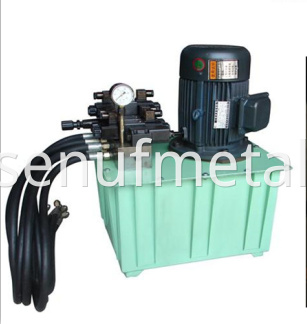

Hydraulic station:
1. Power of the oil pump: 4kw
2. Hydraulic oil :40#

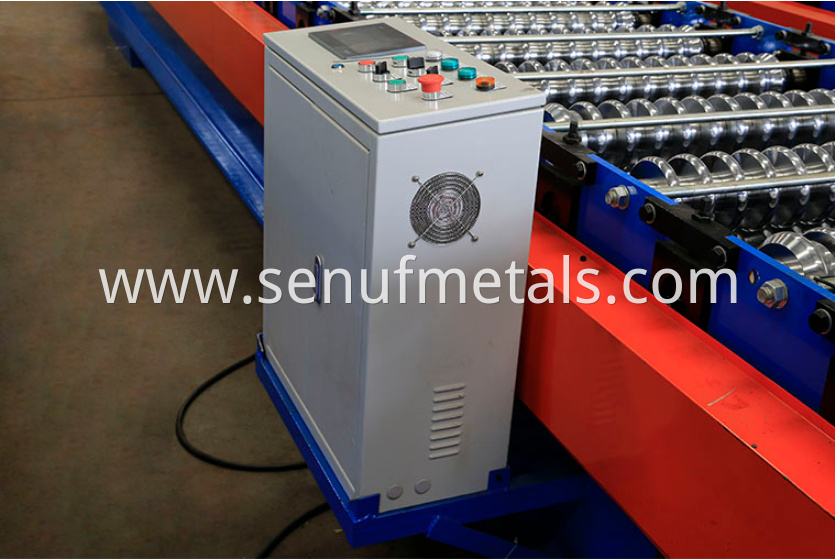

Control System: PLC
Brand: Delta
Language: Chinese and English (as required)
Function: Automatic control the cutting length and quantity, easy to operate and use.

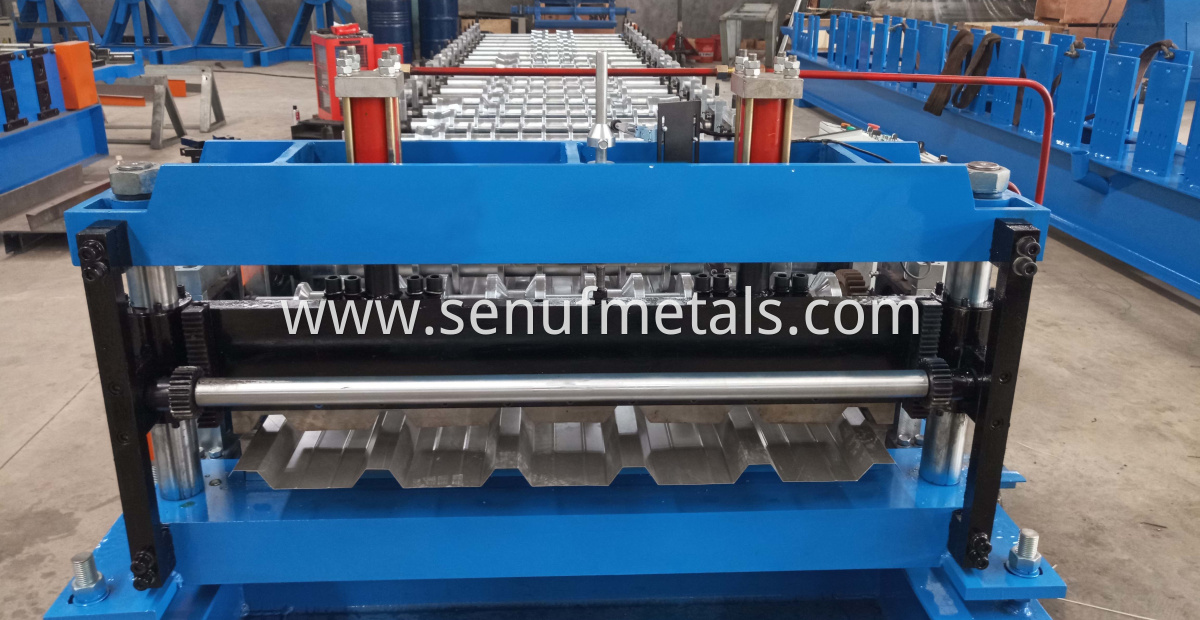

Hydraulic cutting:
Cutter Material: Cr12 mould steel with quenched treatment
Cutting Tolerance: ±1.5mm
