High Precision Light keel roll forming machine
- Product Description
Model No.: SF-1001
Brand: senuf
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Hot Product 2019
Core Component Warranty Period: 5 Years
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Old And New: New
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: Easy To Operate
Warranty: 1 Years
Certification: Other
Condition: New
Customized: Customized
Automatic Grade: Automatic
Structure: Horizontal
Transmission Method: Electric
Type: Light Keel Forming Machine
Brand Name: SENUF
Voltage: 38v, 50hz
Weight: 5000kgs
After-sales Service Provided:: Online Support, Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support
Material Thickness:: 0.25-0.8mm
Production Capacity: 25-45m/min
Life Time: At Least 5 Years
Packaging: many kinds packing as customers demand
Productivity: 10SETS per month
Transportation: Ocean, Land, Air, by train
Place of Origin: hebei china
Supply Ability: 1000sets/year
Certificate: ISO9001
HS Code: 73089000
Port: Xingang, Shanghai, QINGDAO
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- many kinds packing as customers demand
Light Steel Keel Metal Profile Roll Forming Machine
|
Name |
Light Steel Keel Sheet Metal Profile Cold Roll Forming Machine Manufacturer |
|
Suitable Material |
Colored or galvanized steel coil, HRB60 or equivalent |
|
Thickness Range |
0.3-0.8 mm |
|
Coil Width Range |
According to your actual drawing. |
|
Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
|
Dimension |
About 4.8*0.8*1.2 m(L*W*H), as per the drawing |
|
Cutting |
Automatically stop and cutting when it comes to the set length. |
|
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Working Flow
Decoiler sheet guiding-Roll Forming-Measure length-Cutting-Panels to product stand
Product Details
|

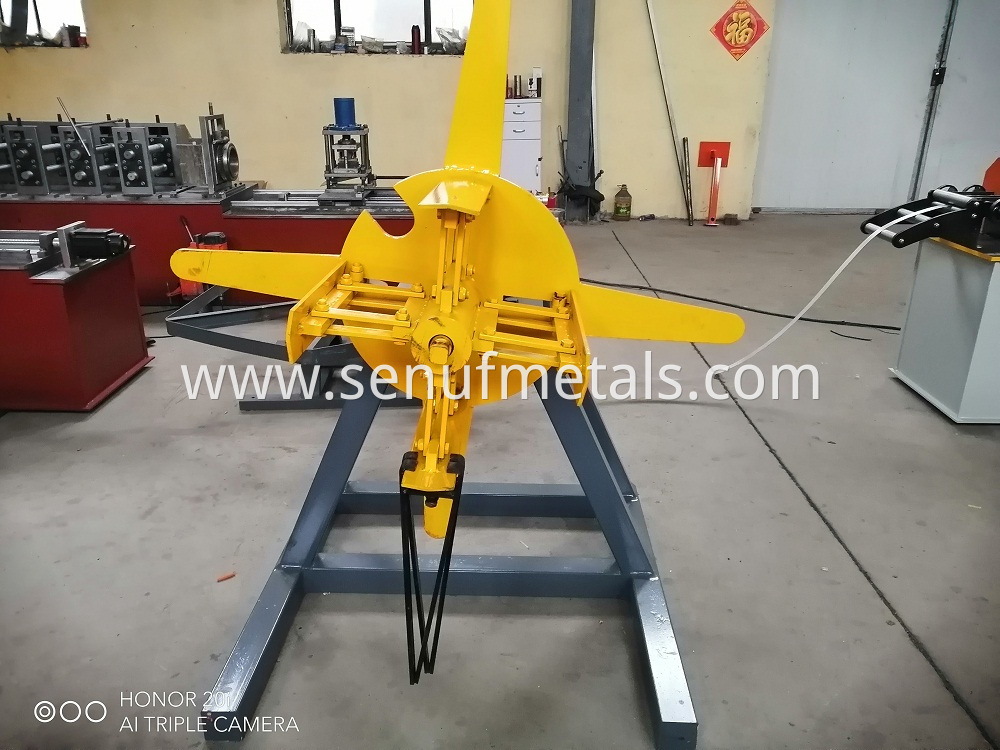

uncoiler |
|
|
Loading capacity |
1.5 T |
|
Inner diameter |
470-530 mm |
|
Steel coil width |
300 mm. According to your actual drawing. |
|

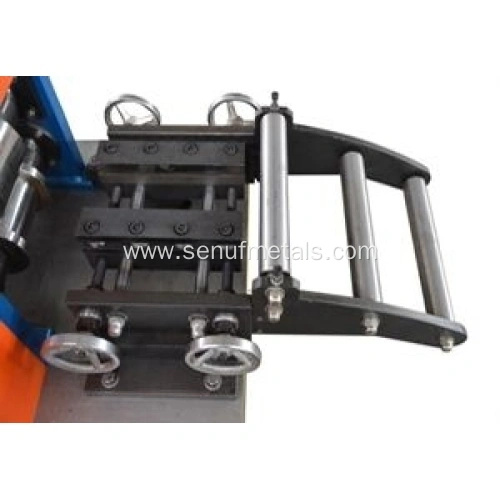

feeding table |
|
It is used to control the width and position of the steel sheet. |
|
The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel. |
|
main frame |
|
|
Material |
350 H steel |
|
Feature |
more table, no shaking |
|

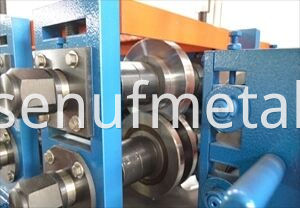

forming rollers |
|
|
Material |
High grade 45# steel. |
|
Roller stations |
11-16 stations. According to your actual drawing |
|

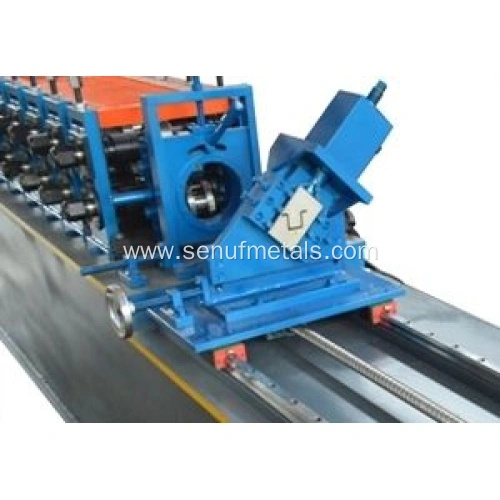

cutting system |
|
|
Material of blade |
Cr12MOV, much better than normal Cr12 material |
|
Hydraulic power |
3KW |
|

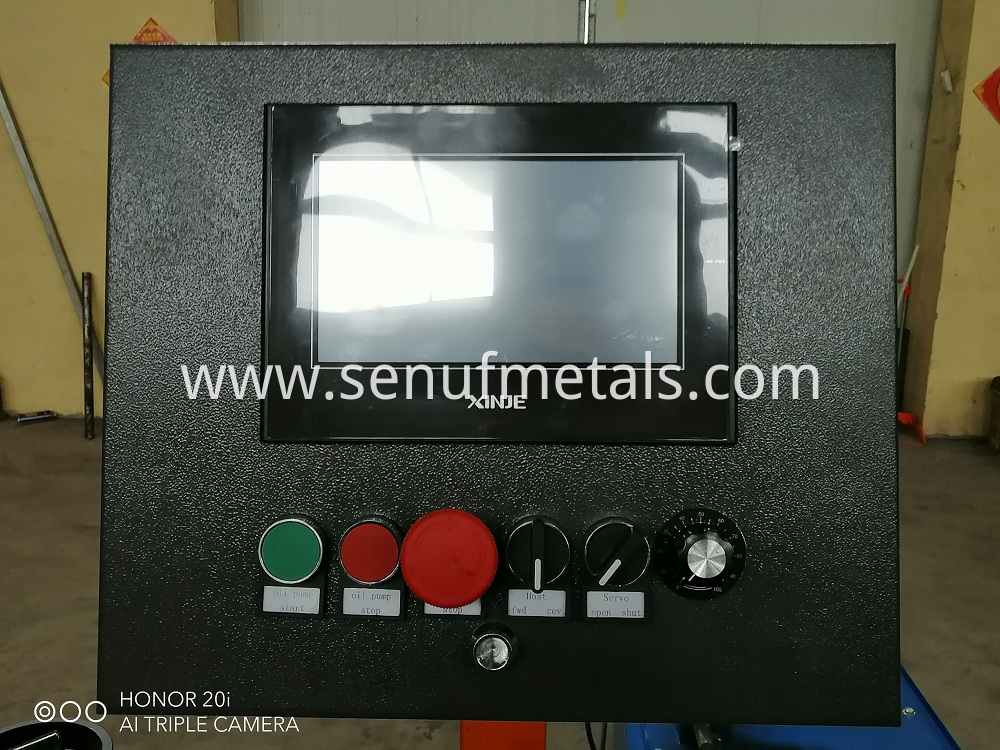

control cabinet |
|
|
Suitable power |
380V, 50Hz, 3phase or according to your need. |
|
Feature |
The whole process is automatically controlled by the computer. <span style="font-size:12p Products categories |
