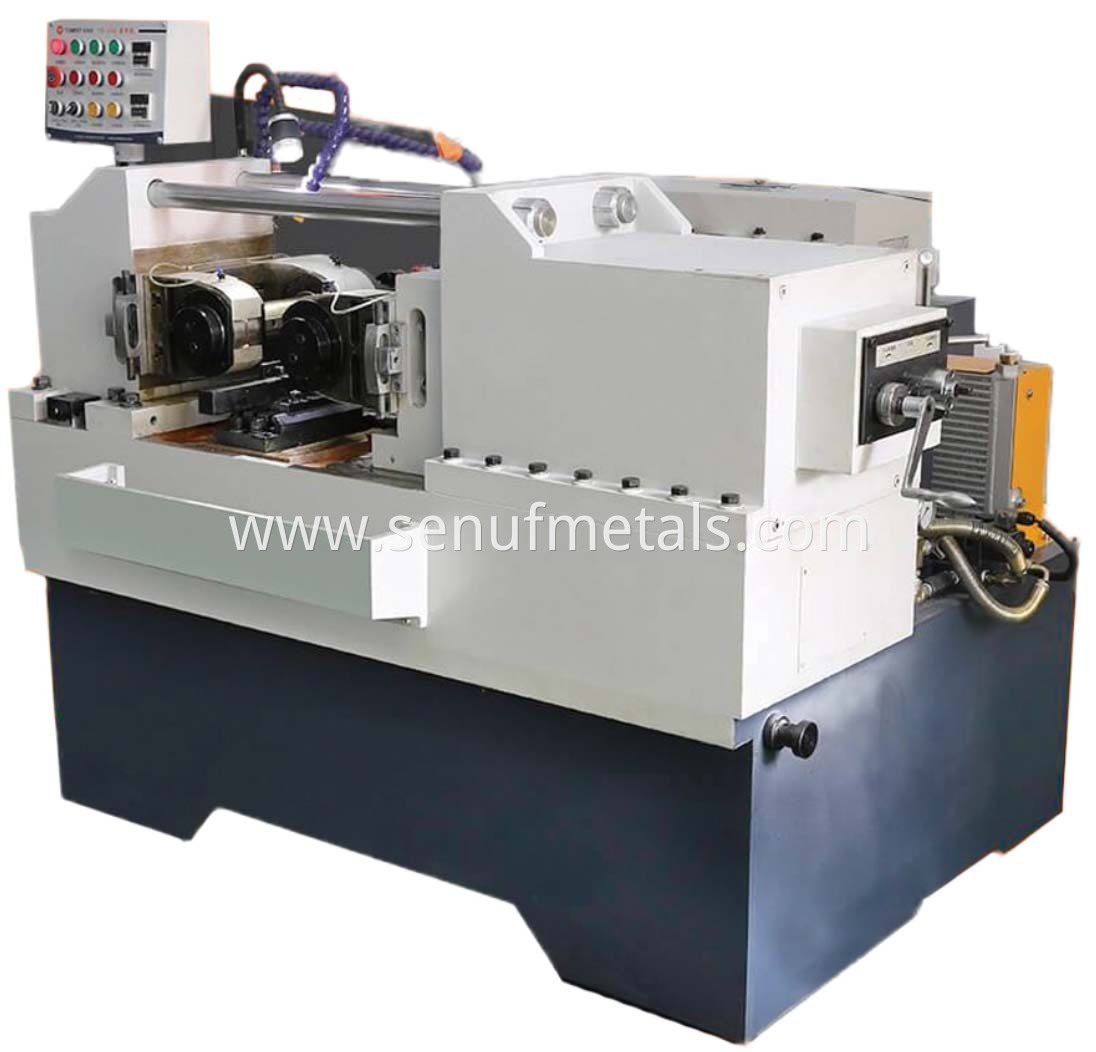

feeding thread rolling machine knurling spline machine
- Product Description
Model No.: SF094
Brand: senuf
Warranty: 1 Year
Bolt Die Type: BSPT
Bolt Die Material: Tool Steel
Bolt Die Size: 5″-6″
Model: 4 inch
Type: Light
Voltage: 3-380V 50Hz
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
Dimension: 1600*1500*1600mm
Production Capacity: 4-25(pcs/min)
Power(W): 4042W
Weight: 1270KG
Color: White Or Customised
Dimension(L*W*H): 1600*1500*1600mm
Application: Connectors, Bicycles, Auto Parts
Packaging: plywood pakage, plastic film
Productivity: 500pcs per year
Transportation: Ocean, Land, Air, Express
Place of Origin: tianjin
Supply Ability: 80 sets one month
Certificate: iso
HS Code: 84633000
Port: Tianjin, Xiamen, Shanghai
Payment Type: L/C, T/T, D/P, Paypal
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- plywood pakage, plastic film
- Picture Example:
-
This model is widely praised for its rational price, easy maintenance and high quality. besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller embossing roller. the through screw made with this machine in hebei standard parts base has been exported to US Canada and Europe.
Specification:
| Pressure of roller max: | 150KN | Rotary speed of main shaft: | 36, 47, 60, 78(r/min) |
| Working dia: | 4-48mm | Feed speed of movable shaft: | 5mm/s |
| OD of roller: | 120-170mm | Thread length: | no limits |
| BD of roller: | 54mm | Main power: | 4kw |
| Roller width max: | 100mm | Hydraulic power: | 2.2kw |
| Dip angle of main shaft: | +-5degree | Weight: | 1700kg |
| Center distance of main shaft( stroke): | 120-240mm | Size: | 1500*1380*1140mm |
