double deck roll forming machine
- Product Description
Model No.: SUF-DD
Brand: senuf
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Construction Works, Garment Shops
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Italy, Pakistan, Morocco, United States, United Kingdom, Turkey, Canada, Egypt, Philippines, Spain, Chile, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Philippines, Spain, Algeria, Nigeria
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 3 Years
Core Components: Engine, Plc, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Old And New: New
Place Of Origin: China
Warranty Period: 3 Years
Core Selling Point: Easy To Operate
Certification: Other
Condition: New
Customized: Other
Automatic Grade: Automatic
Structure: Other
Transmission Method: Electric
Double Deck Roll Forming Machine: Double Deck Roll Forming Machine
Packaging: naked
Productivity: 100SETS per mouth
Transportation: Ocean, Land, Air, Express, by train
Place of Origin: hebei china
Supply Ability: 300sets/ year
Certificate: ISO9001
HS Code: 73063900
Port: Xingang, Shanghai, Qingdao
Payment Type: L/C, T/T, D/P, Paypal, D/A
Incoterm: FOB, CFR, CIF, EXW, CIP, CPT, FAS, FCA, DDP, DEQ, Express Delivery, DAF, DDU, DES
- Selling Units:
- Set/Sets
- Package Type:
- naked
Double Deck Roll Forming Machine
Product Description
This kind of machine make two type of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site operation.
This machine is composed of feed leading table, main forming machine, cutting device, hydraulic station, computer control system and so on.
The switch of up layer and down layer is easy completed: change the button on the control box and the clutch to guide the power.
The optional devices: normal decoiler and hydraulic decoiler.
The model of the each sheet can be designed according to customers’ requirements.
1.Processes:
Manual decoiler—Roll forming machine—PLC system—Hydraulic system—Mold pressing-Post cut—Stacking
2. Technique parameters of the processing lie
(1) Suitable material: colored armor plate
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: both decks is 1000mm

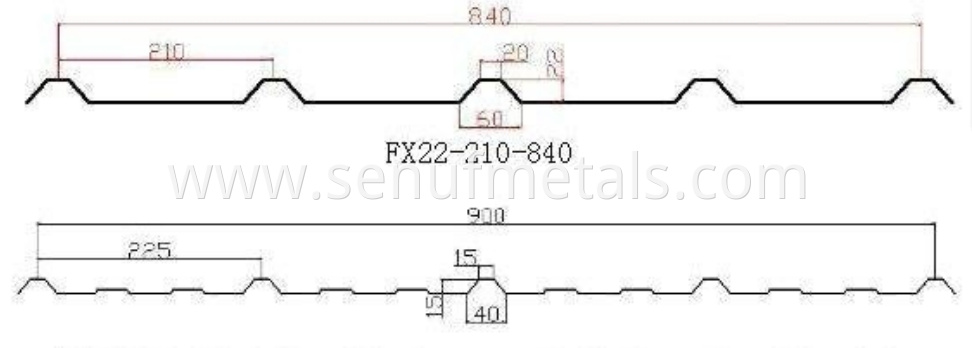

(4) Output width of first deck :900mm
(5)Output width of second deck :840mm
(6) Productivity :12m/min
(7) Roller steps :11 rows
(8) Roller material: 45# steel
(9) Diameter of active shaft: 70mm
(10) Wall thickness of the main forming machine: 12mm steel plate
(11)Main forming machine body : 300mmH steel
(12) Transmission chain is25.4mm, ;
Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.
(13) Cutting hydraulic systerm adpats CDF-10 gear pump, the motor power is 4kw, no noise, work stably, long life expentancy.
(14) PLC control systerm, easy to operate, high precision and work stably.
(15) Dimensions of major structure:6200mm*1650mm*1510mm
