Direct factory machines making steel door roller machine
- Product Description
Model No.: SUF
Brand: SUF
Control System: PLC
Motor Power: 4KW
Forming Speed: 12-15m/min
Shaft Material: 45#
Thickness: 0.4-1.0mm / 1.2-2.0mm
Rollers: 14
Rollers Material: 45# Steel With Chromed
Cutter Material: Cr12 With Heat Treatment
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN
Payment Type: L/C, T/T, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
Direct factory Machines making steel door roller machine
Steel Shutter Door Roller Machine consists of decoiler, sheet guiding equipment, Roll Forming section, cutter, supporter, hydraulic system and control system. The roller shutter slat which made by this machine has neat external appearance, even ripples, high utilization and strong strength.
Main features of Shutter door roller machine
The advantages of Door making machine are as follows:
1. Three types of material thickness for optional: 0.4-0.6mm for single phase power supply machine, 0.7-1.2mm even 1.5mm for 3 phase power supply machine,
2. Save space, more convenient,
3. Easy operation, low maintenance cost,
4. Stable and durable.
Detailed Images of Roller Shutter Door Forming Machine
Machine parts
1. Roller slat shutter door Forming Machine door making machine Guiding
2. Roller slat shutter door Forming Machine Rollers
Rollers manufactured by high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,
Body frame made by 300# H type steel by welding.
3. Roller Shutter Door Roll Forming Machine Cutter
Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding
4. Roller shutter door Forming Machine PLC control system

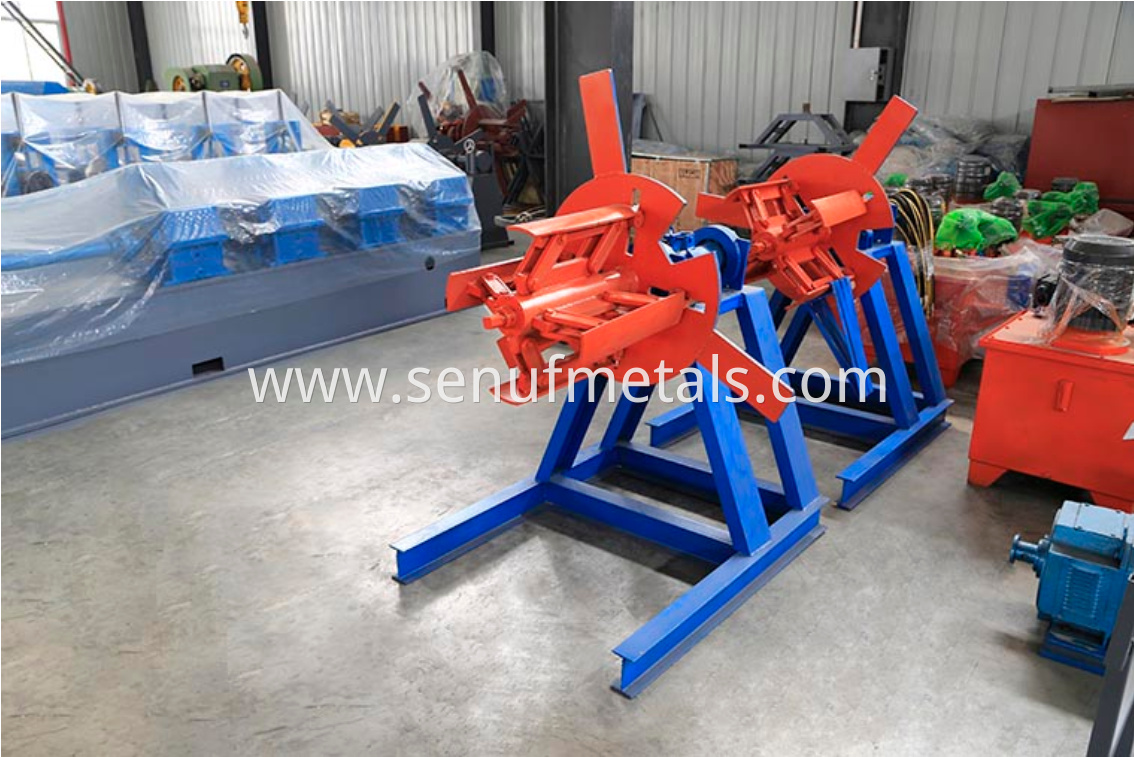

5. Roller slat shutter door Forming Machine Decoiler
Manual Decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop,
Max feeding width: 300mm, coil ID range 470mm±30mm,
Capacity: Max 1.5 tons
6. Roller Shutter Door Automatic Cold Roll Forming Machine Run-out table
Un-powered, one unit
Other details of Roller slat shutter door Forming Machine door making machine
Shafts manufactured by 45#, Main shaft diameter 45/57mm, precision machined,
Motor driving, gear chain transmission, 14/19 steps to form,
Main motor: 4kw/5.5kw, Hydraulic decoiler: 2.2kw/3.75kw
Frequency speed control, forming speed 12-15m/min.
PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
