Here are the CZU Purlin Bracket Roll Forming Machine, 21 rollers tation, 90mm diameter shaft, Cr12 roller material, hydraulic cutting.

C/Z purlin interchangeable Roll Forming machine has been designed to produce both C and Z steel purlins with any sizes available. The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine.

Detailed images of CZ shaped steel forming machine

Machine parts

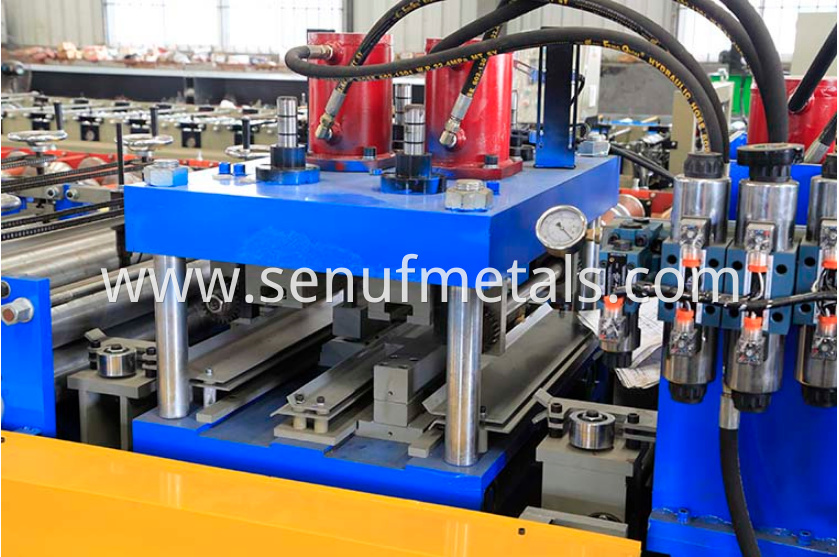

(1) CZ purlin machine punching system

Brand: SUF Original: China

with 3 cylinder (one cyinder for single hole and 2 cylinders for dual holes)

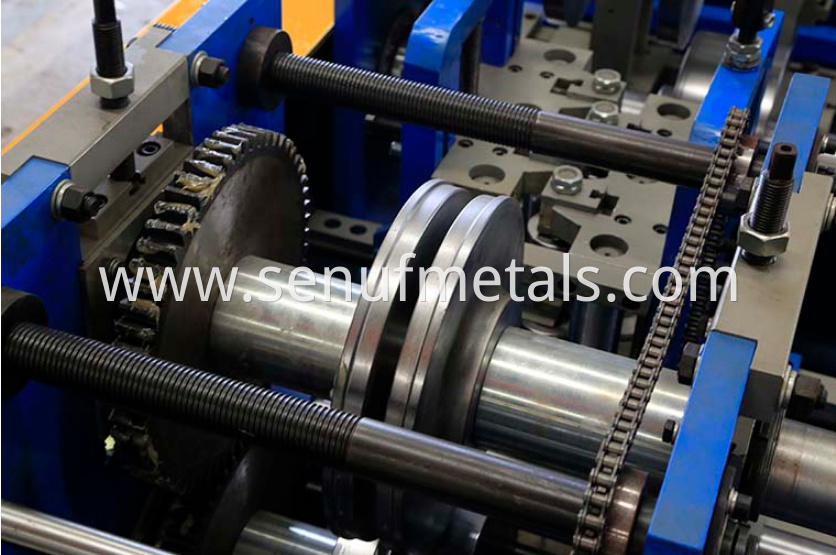

(2) CZ purlin machine rollers

Rollers manufacured from high quality bearing steel Gcr15, CNC lathes, Heat Treatments,

With black treatment or and-Chrome Coating for options:

With feeding material guide, body frame made from 450# H type steel by welding

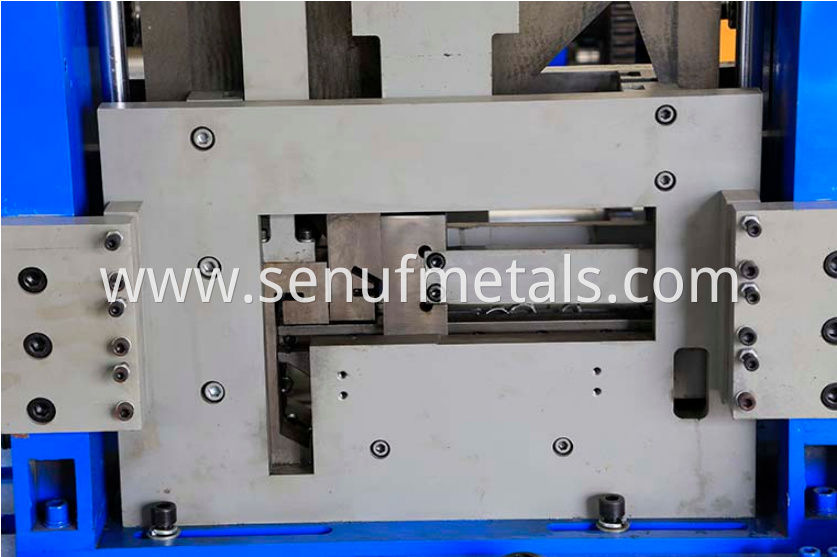

(3) CZ purlin machine post cutter

Patened universal post-cutter, no need to change cutter for different size,

Made by high quality mold steel Cr12Mov with heat treatment,

Cutter frame from high quality 30mm steel plate by welding,

Pre-punching & Pre-cutting, stop to punch, stop to cut,

Hdraulic motor: 7.5kw, hydraulic pressure range: 0-16Mpa,

(4) CZ purlin machine decoiler

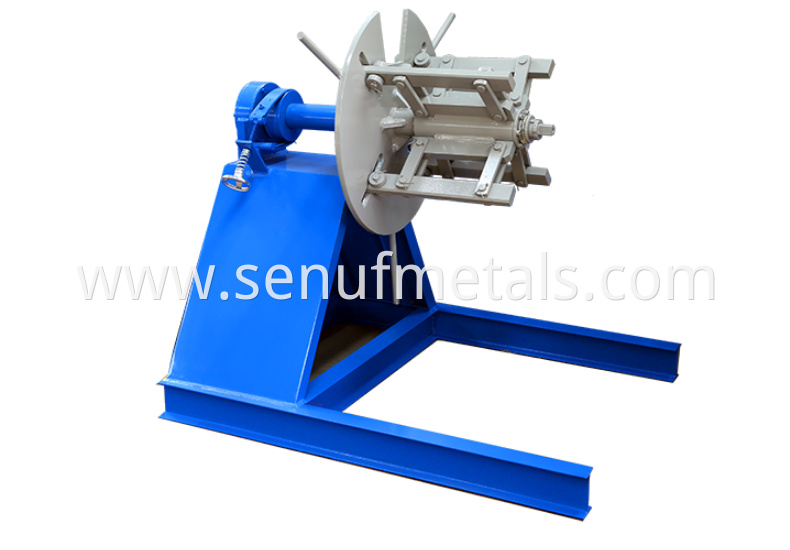

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 500mm, coil ID range 470mm±30mm,

Capacity: Max 4 tons

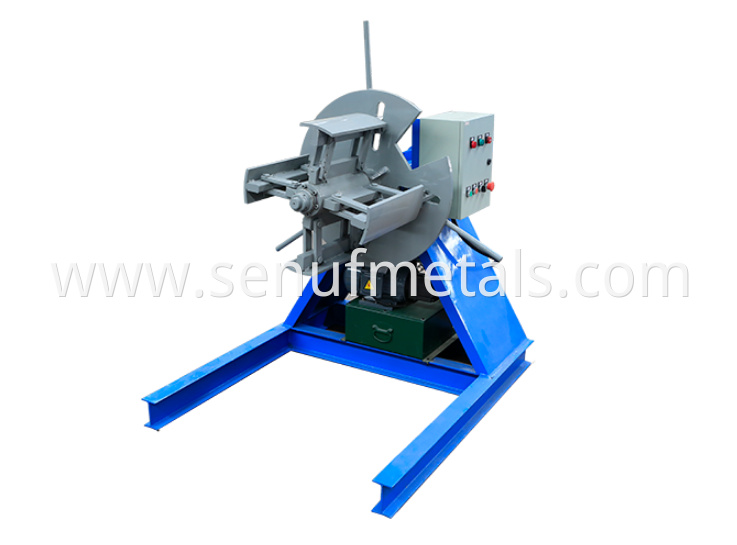

With 5 tons hydraulic decoiler for optional:

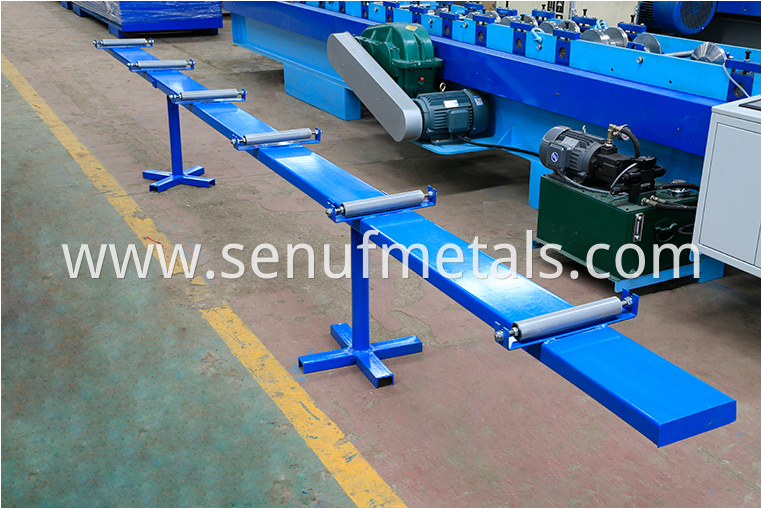

(5) CZ purlin machine exit rack

Un-powered, two sets
