Cost Effective Metal Double Layer Aluminium Roofing Machine

Short Description:

Send email to us

Product Detail

Product Tags

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SUF

Brand: SUF

Frame Thickness: 25mm

Thickness: 0.3-0.8mm

Voltage: Customized

Certification: ISO

Usage: Floor

Tile Type: Colored Steel

Condition: New

Customized: Customized

Transmission Method: Machinery

Roll Station: 18 Stations Down Layer And Upper 16

Roller Material: 45# Chrome

Shaft Diameter And Material: ￠70mm, Material Is 445#

Forming Speed: 8-22m/min

Supply Ability & Additional Information

Packaging: NAKED

Productivity: 500 SETS

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN, TIANJIN

Payment Type: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: NAKED

Cost Effective Metal Double Layer Aluminium Roofing Machine

This kind of Double Layer Aluminium Sheet Roofing Machine used in simple house, steel plants and other wall board production. The miximum speed can be 35m/min, greatly improving the production efficiency.The finished sheet are widely used in some temporary construction as wall or roof panel, for example, The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.

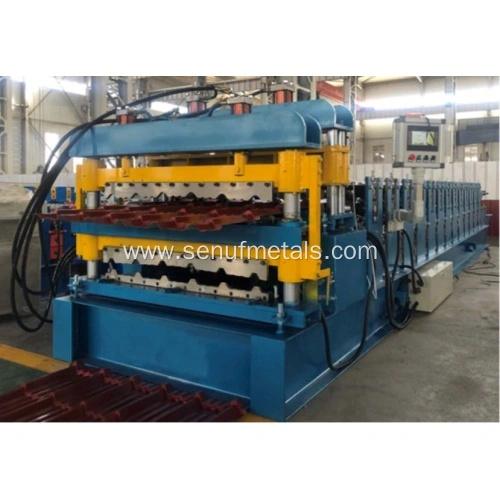

Double layer 1

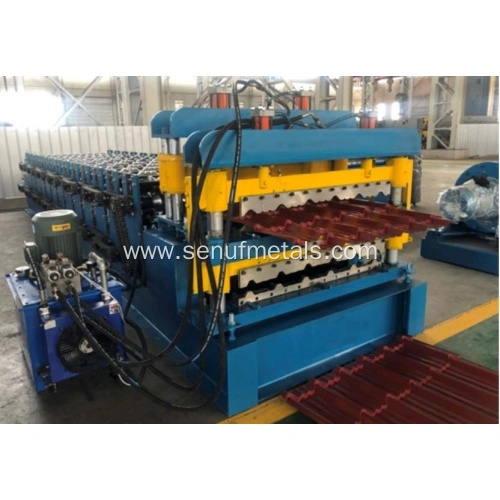

Double layer

Double layer roof sheet forming machine pre-cut

double layer forming machine (4)

Un-coiler System

<span style="margin: 0px; padding: 0px;" style Manual decoiler

<span style="margin: 0px; padding: 0px;" styleUsage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by Roll Forming system
Loading-capacity:5T
Uncoiling-width:1000/1200/1250mm

<span style="margin: 0px; padding: 0px;" style

Inner-diameter: 450-550mm

<span style="margin: 0px; padding: 0px;" styleGuide device<span style="margin: 0px; padding: 0px;" style

<span style="margin: 0px; padding: 0px;" style

Double layer machine (2)

Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

Main Roll Forming Machine

Double layer roof sheet forming machine pre-cut

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame: 350 H steel

Drive mode: chain

Material of rollers: 45# steel, surface hard chromium plating.

Length of the main part: 8650*1650*1500mm

Voltage:380V/50HZ3Phase

Roller fixer: middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers: 18 rollers

Cutter device

double layer forming machine(5)
