Corrugated Sheet Roll Forming Machine
- Product Description
Model No.: SUF-011128
Brand: SUF
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Garment Shops, Restaurant, Home Use, Building Material Shops, Retail, Advertising Company, Food Shop, Machinery Repair Shops, Printing Shops, Manufacturing Plant, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Japan, Thailand, Spain, Russia, Mexico, India, Pakistan, Indonesia, Saudi Arabia, Peru, Brazil, Malaysia, Australia, Sri Lanka, Romania, None, Tajikistan, Morocco, Bangladesh, Kenya, South Africa, Argentina, Kazakhstan, South Korea, Ukraine, Chile, Uae, Kyrgyzstan, Colombia, Nigeria, Algeria, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Mexico, Australia, United States, Pakistan, Indonesia, Chile
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Gear, Motor, Gearbox
Old And New: New
Place Of Origin: China
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
0.3-0.7MM: 0.3-0.7MM
Packaging: SUITABLE FOR SHIPPING
Productivity: 500 SETS
Transportation: Ocean, Land, Air, by train
Place of Origin: CHINA
Supply Ability: 500 SETS PER MONTH
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, Shanghai
Payment Type: L/C, T/T, D/P, Paypal
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- SUITABLE FOR SHIPPING
- Picture Example:
-
1.Technical parameter
|
Material: PPGI/GI |
|
|
Equipment operation |
Automatically |
|
Voltage |
380V 50HZ 3 Phases or as your requirement |
|
Thickness of sheet（mm） |
0.3mm–0.7mm |
|
Material width（mm） |
1200mm |
|
Formed width(mm) |
988mm |
|
Productivity |
15-16m/min |
|
Roller Stations |
16-17 |
|
Dia of Roll Shaft |
70mm |
|
The size |
7600mmx1600mmx1500mm |
|
Material of rollers |
45#steel |
|
Total power（kw） |
9.5kw |
|
Hydraulic Stations Power |
4.0KW |
|
Power of main molding core |
5.5KW(cycloidal planetary gear speed reducer) |
● Feeding platform(with pinch roll)
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

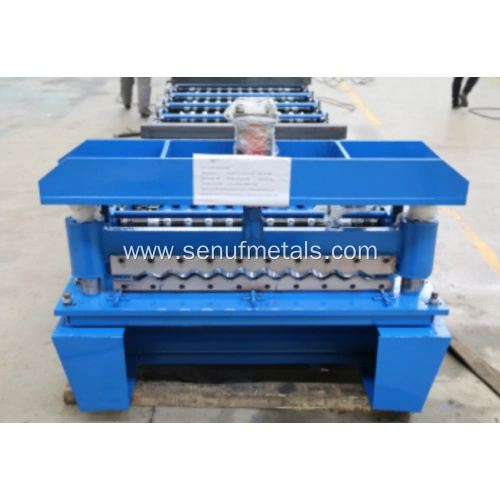

● Main molding core

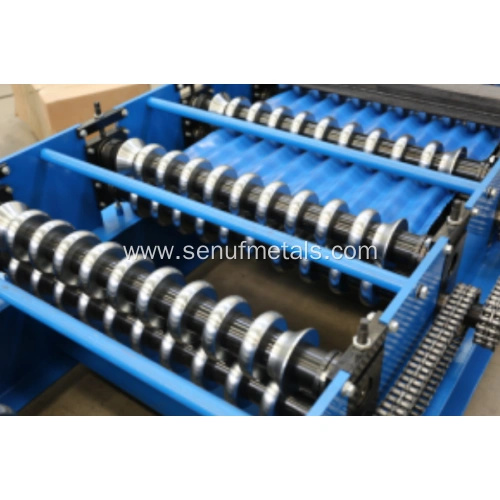

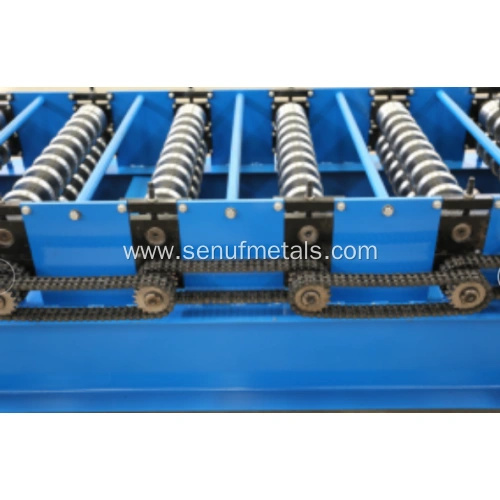

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Material of rollers:45# steel, surface hard chromium plating.
Main power: 5.5kw（cycloidal planetary gear speed reducer）
● Automatic shearing system
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine
● Computer control system(imported computer)
It adopts Delta PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC is Delata, Inverter is Delta, the other Electron component is Schneider.
● Manul Decoile can bear 7 tons
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Inner diameter: 450-508mm
Can bear the max width of the coil is 1300mm
Can bear the max tons is 7 tons
Size of it is 1700mmx1500mmx1000mm
