Cable Tray Roll Forming Machine line
- Product Description
Model No.: SUF CAB529
Brand: senuf
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Status: New
Place Of Origin: China
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Other, Advertising Company
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Automatic High Speed Light Keel Roll: Professional Manufacturer Cable Tray Roll Forming Machine
Packaging: FOR EXPORTING
Productivity: 2000 sets/year
Transportation: Ocean, Land, Air
Place of Origin: CHINA
Supply Ability: 2000sets/year
Certificate: ISO9001
HS Code: 84518000
Port: Xingang, Shanghai, Qingdao
Payment Type: L/C, T/T, D/P, Paypal
Incoterm: FOB, CFR, CIF, EXW, DEQ, CIP, CPT, FCA, FAS, DDP, DDU
- Selling Units:
- Set/Sets
- Package Type:
- FOR EXPORTING
Professional Manufacturer Cable Tray Roll Forming Machine
Product Description
Professional Manufacturer Cable Tray Roll Forming Machine,
The feasures of our product
1.Nice apperance.
2. High efficiency.
3.Low noise and good quality.
4.Easy control.
1.technical processing
decoiler–leveling-servo feeding–punching–cutting–feeding frame–forming machine–out table
2.main equipment
decoiler.main forming machine.hydraulic cutting, electric cutting , electric system, hydraulic system, product stand
S.N equipment name QuantityWeight
1. hydraulic decoiler 1 set 5T
2. leveling machine 1 set 2T
3. servo feeding device 1 set 1T
4.punching machine 1 set 31T
5. main Roll Forming machine 1 set 28T
6. hydraulic cutting machine 1 set 1.5t
7. control system 1 set 0.1T
8. out tables 2 units 1T
9.spare part 1 package 0.1T
3.technical parameter
3.1 Decoiler
3.1.1 the width of material sheet:150-860mm
3.1.2 the thickness of material sheet:0.6-1.0mm
3.1.3 the inner of diameter:508mm
Range ofexpanding:480mm-520mm
3.1.4 maximun outer diameter:1300mm
3.1.5 the maximum loading of decoiler:8t
Usage:lt is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system.
Loading capacity 10T
Uncoiling width 508mm(according to the profile)
Inner diameter: 480-520mm
Feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process, 4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.
3.2cutting machine
Material of axis 45#steel
Number 3 up.4 down
Diameter of axis 65mm
Forming round Material bearing steel(GR15), quenching60-62°
3.2.1hydraulic cutting
3.2.2blade and mould material:Cr12 steel with quenched treaded 60-62
3.3control system
3.3.1PLC
3.3.2coder
3.4hydraulic system
3.4.1power:22kw

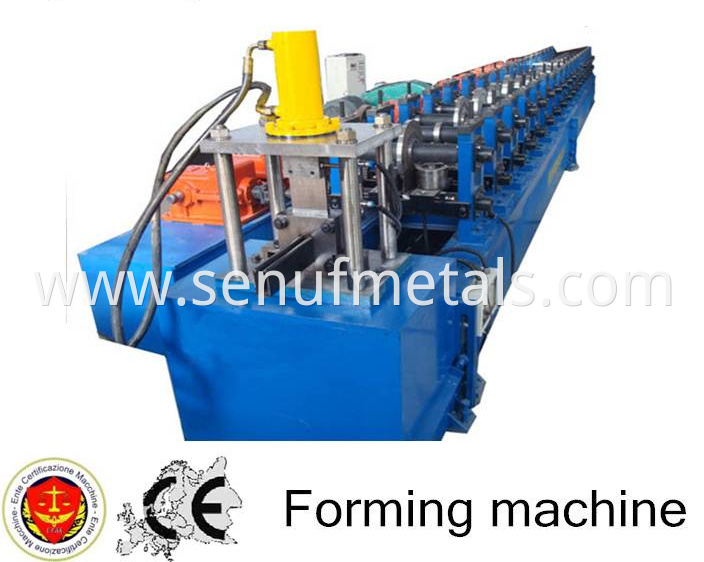

3.5main forming machine
3.5.1shaft material:45#steel, bearing steel outer diameter 65mm
3.5.2main motor power:22kw
3.5.3forming speed:3-6m/min
3.5.4voltage:380v, 50hz, 3 phase
3.5.5roller station:16 station
3.6. Cutting system
A. Hydraulic cutter
B. Blade and mould material: Cr12 steel with quenched treated 60-62
3.7.Control system
A.PLC
B.Coder
6).Hydraulic system
A.Power:3kw
3.8.Spare Parts
1). Easy damaged parts: Conk 2 PCS, fuse-link 4 PCS
2). Rubber mat 1 PCS;
3). Bolt spanner 1 PCS
FAQ
What is main parameters
1.Gear box and universal joint drive.
2.PLC control.
Is the sample available
Yes, sample are available for you to test the quality.
Are the products tested before shipping
All the products have to pass strict inspection before they go out.
Why choose us
1.We are a factory manufacturing , best production capability, best quality control, best service.
2.competitive price.
3.Best after-sale service.
4.Different types of roll forming machine, customers’ own design is ok.
