Bamboo style roofing panel roll forming machine
- Product Description
Model No.: SF-M019
Brand: SUF
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Construction Works
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Philippines, Spain, Chile, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Philippines, Algeria, Nigeria, Spain
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 5 Years
Core Components: Engine, Plc, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Old And New: New
Place Of Origin: China
Warranty Period: 2 Years
Core Selling Point: Easy To Operate
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, Express, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, SHANGHAI
Payment Type: L/C, T/T, D/P, Paypal
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- NAKED

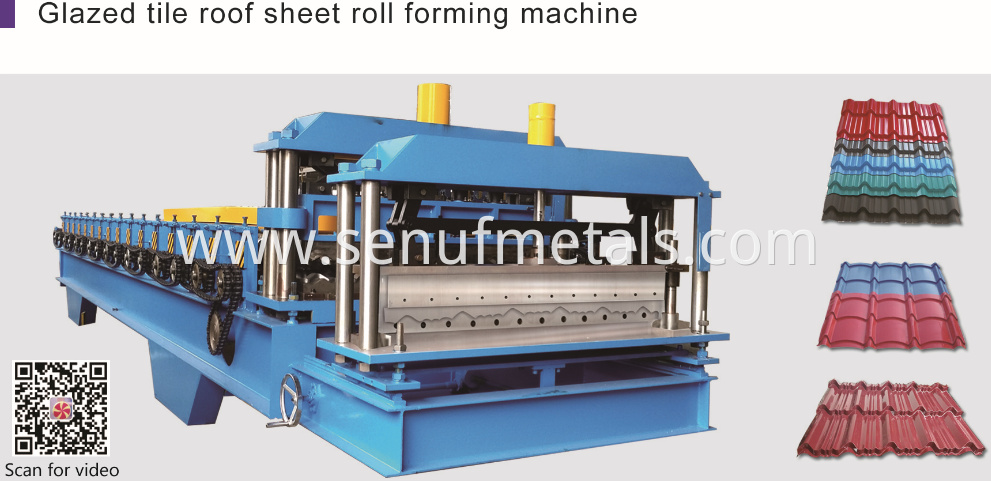

- Picture Example:
-
1.Specification:
| No. | Item | Description |
| 1 | Raw material Standard | 1000mm |
| 2 | Working Speed | 1-3m/min (not including cutting time) |
| 3 | Roller Stations | 13 stations |
| 4 | Material of Roller | 45# steel quenching process and chrome coated |
| 5 | Material of Main Shaft | 45 steel forged, |
| 6 | Material of Shaft | 70 mm forged 45#steel, quenching process |
| 7 | Main Motor Power | 4KW |
| 8 | Electrical Hydraulic Station Power | 4KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | PLC Panasonic Japan |
| 11 | Dimension (L*W*H) | 6500mm*1250mm*1300mm |
| 12 | Material of Cutter | Cr12 Mov HRC 58-62 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.25-0.8mm |
| 15 | Cutting accuracy | ±2mm |
| 16 | Power Supply | 380V, 60HZ, 3 PHASES |
2.Supply range:
| No | Item | Qty | Remark |
| 1 | 5 ton manual decoiler | 1 | |
| 2 | Roll Forming Machine | 1 | |
| 3 | Hydraulic station | 1 | |
| 4 | Electric cabinet | 1 | |
| 5 | 3m receiving table | 2 | |
| 6 | Document | 2 | Operation manual |
| 7 | Spare parts | 1 set |
