automatic stacker roof sheet making roll forming machine
- Product Description
Model No.: SUF-stacker
Brand: SUF
Certification: ISO
Usage: Roof
Tile Type: Colored Steel
Condition: New
Customized: Customized
Transmission Method: Hydraulic Pressure
Thickness: 0.7-0.8
Mateial: GI, PPGI For Q195-Q345
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Construction Works
Out-of-warranty Service: Video Technical Support, Spare Parts, Field Maintenance And Repair Service, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Philippines, Spain, Ukraine, United Kingdom, United States, Chile
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Philippines, Spain, Algeria, Uzbekistan, India, Saudi Arabia, United Kingdom, Turkey, United States, Nigeria
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Steel
Use: Roof
Productivity: 50 M/Min, 30 M/Min
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: Easy To Operate
Rolling Thinckness: 0.3-0.8mm
Feeding Width: 915mm, 900mm, 1200mm, 1000mm, 1250mm, 1220mm
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2020, New Product 2019
Core Component Warranty Period: More Than 5 Years
Core Components: Pressure Vessel, Other, Bearing, Gear, Pump, Gearbox, Engine, Motor
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, Express, BY TRAIN
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, SHANGHAI
Payment Type: L/C, T/T, Paypal, D/P, D/A
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
Automatic stacker roof sheet making Roll Forming Machine
The plate produced by these series machine is a perforated type with screw lockup. Its feature is low convenient for mounting, and therefore extensively applied in factory buildings of steel structure, warehouse, and public use buildings etc. It is a commonly used wall panel.
One machine for multiple sizes
Main features of Corrugated roof sheet forming machine
The advantages of Roof sheet making Roll Forming machine
1. With automatic stacker, Save labor and time,
2. With scrap cutting device to cut balance material so that the machine can work for ifferent material width,
3. Easy operation, low maintenance cost,
4. Popular in European market (like UK)
Detailed Images of CNC storage rack roof sheet making roll forming machine
Machine parts

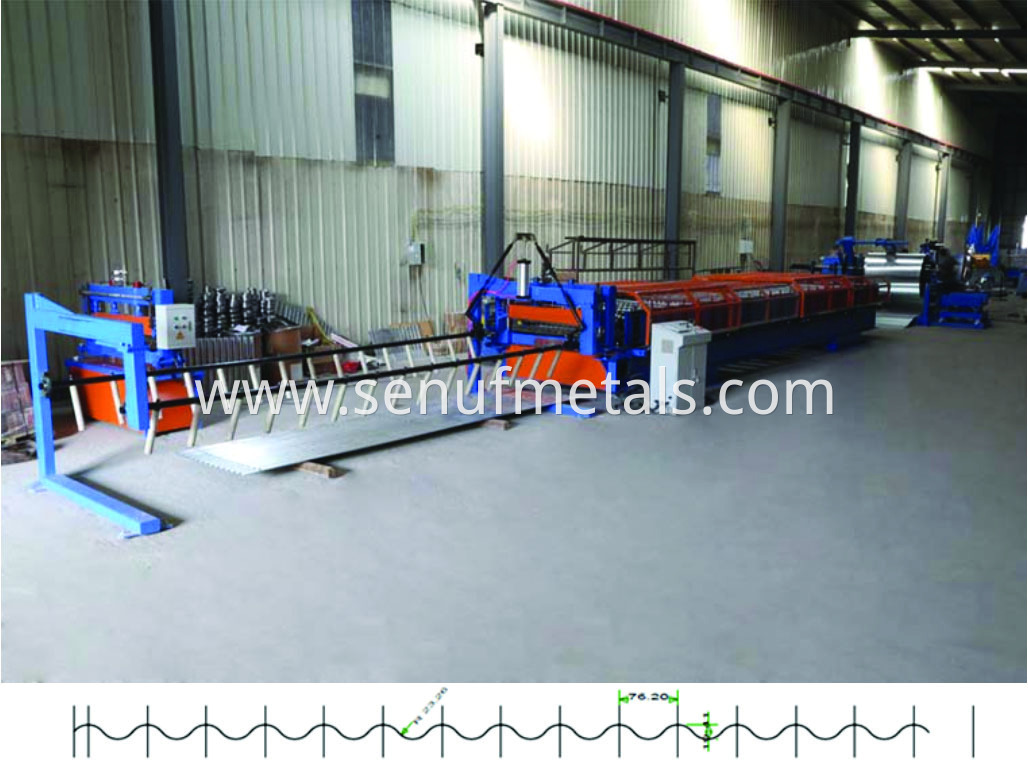

1. European Style Roll Forming Machine

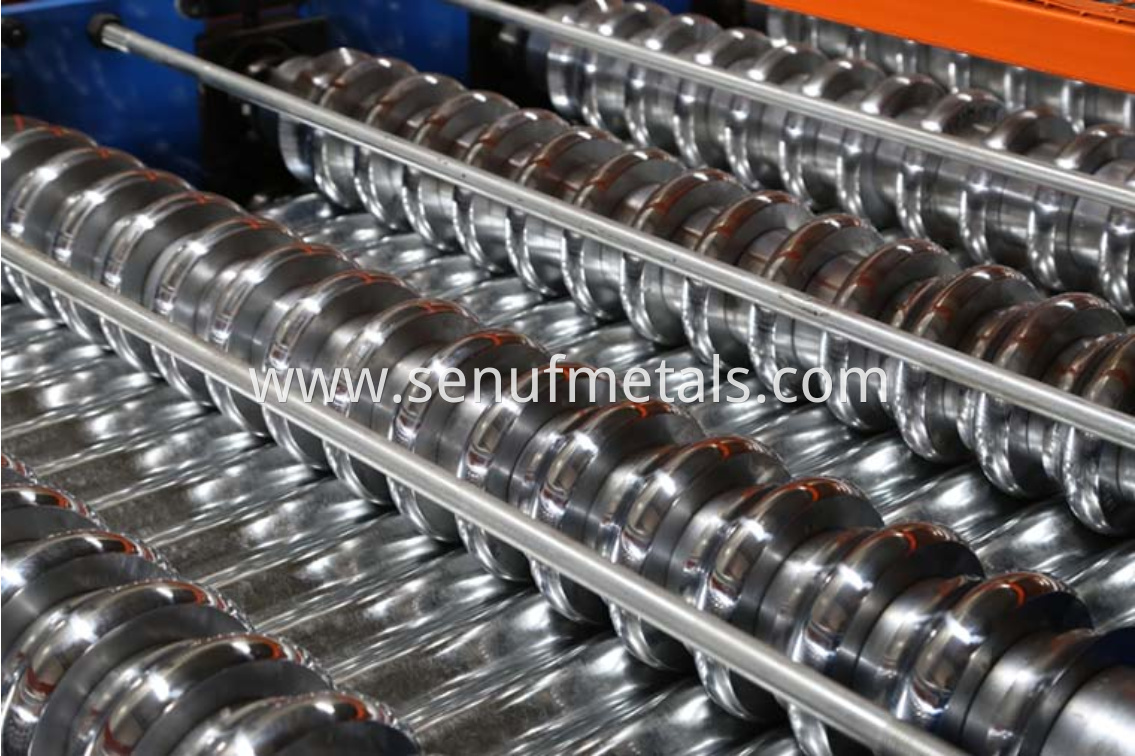

2. Roof Sheet Making Roll Forming Machine Rollers
Rollers manufactured by high quality 45# steel, CNC lathes, Heat Treatment, with Hard-Chrome Coating for long life,
With feeding material guide, Body frame made by 350H steel by welding
3. European Style Corrugated Roof Sheet Roll Forming Machine Post Cutter
Cutter frame made by high quality 20mm teel plate by welding
Post cut, stop tp cut, use the same hydraulic mtor drive
Hydraulic motor: 3.7kw, Hydraulic pressure range:0 -12Mpa
Cutting tool material: mold steel Cr12, Heat Treatment

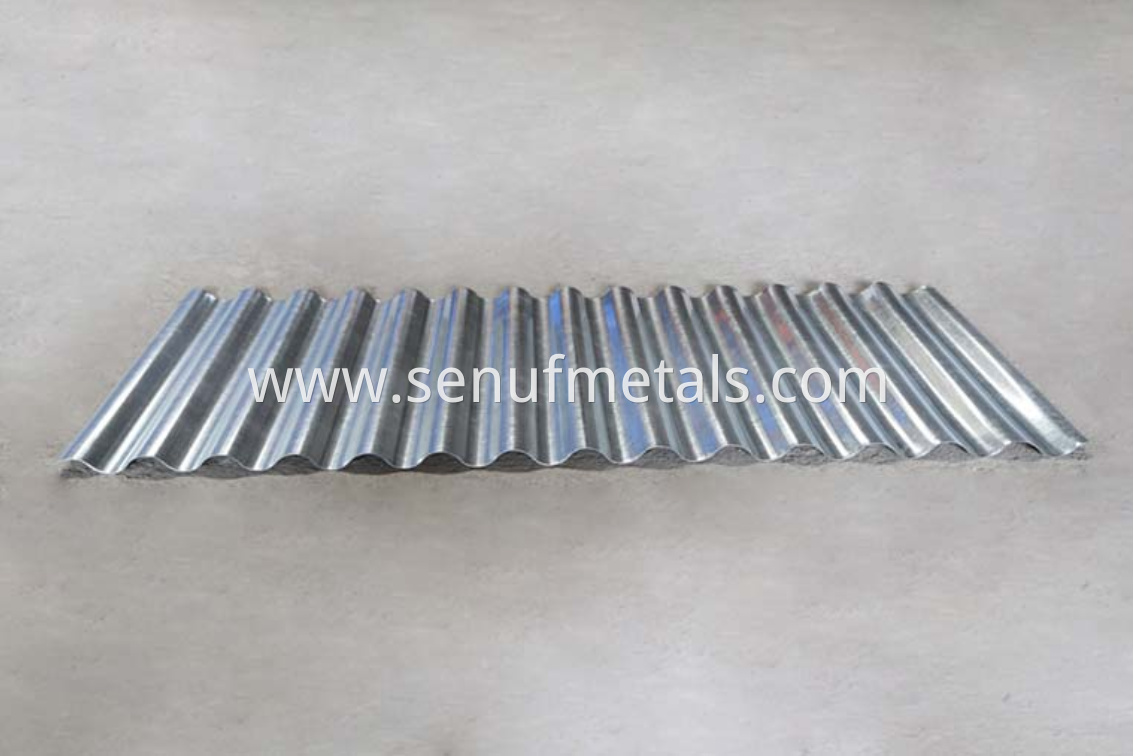

4. Corrugated Roof Sheet Forming Machine Samples
5. European Style Corrugated Roof Sheet Roll Forming Machine PLC control system

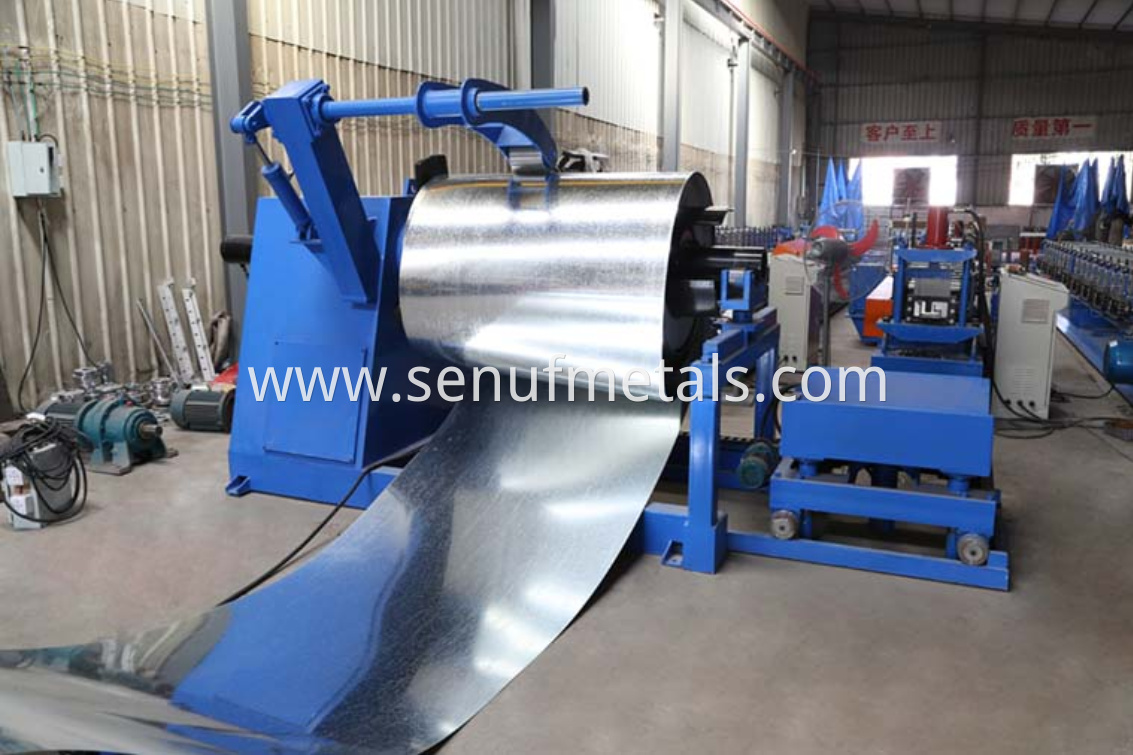

6. European Style Corrugated Roof Sheet Roll Forming Machine Decoiler
Hydraulic decoiler with trolley and clamp arm: one set
Hydraulic control steel coil inner bore shrinkage and stop
Max feeding width: 1500mm, coil ID range 470±30mm
Capacity: Max 10 tons
Other dertails of Corrugated Roof Sheet Roll Forming Machine
Suitable for material with thickness 0.3-0.8mm,
Shafts manufactured by 45#, main shaft diameter 80mm, precision machine,
Motor driving 7.5kw, frequency speed control, forming speed pprox 15-20m/min.
