Automatic roofing sheet bend curving machine
- Product Description
Model No.: SUF
Brand: SUF
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Food &Amp; Beverage Factory
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Philippines, Chile, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Algeria
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Bearing, Engine, Plc, Motor, Pressure Vessel, Gear
Old And New: New
Place Of Origin: China
Warranty Period: 4 Years
Core Selling Point: High Safety Level
Control System: PLC
Motor Power: 4KW
Material Thickness: 0.3-0.8mm
Voltage: Customized
Certification: ISO
Condition: New
Customized: Customized
Automatic Grade: Automatic
Structure: Horizontal
Transmission Method: Hydraulic Pressure
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Express, Air, Land, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: TIANJIN, XIAMEN, shanghai
Payment Type: L/C, T/T, Paypal
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP, DDP, DDU
- Selling Units:
- Set/Sets
- Package Type:
- NAKED

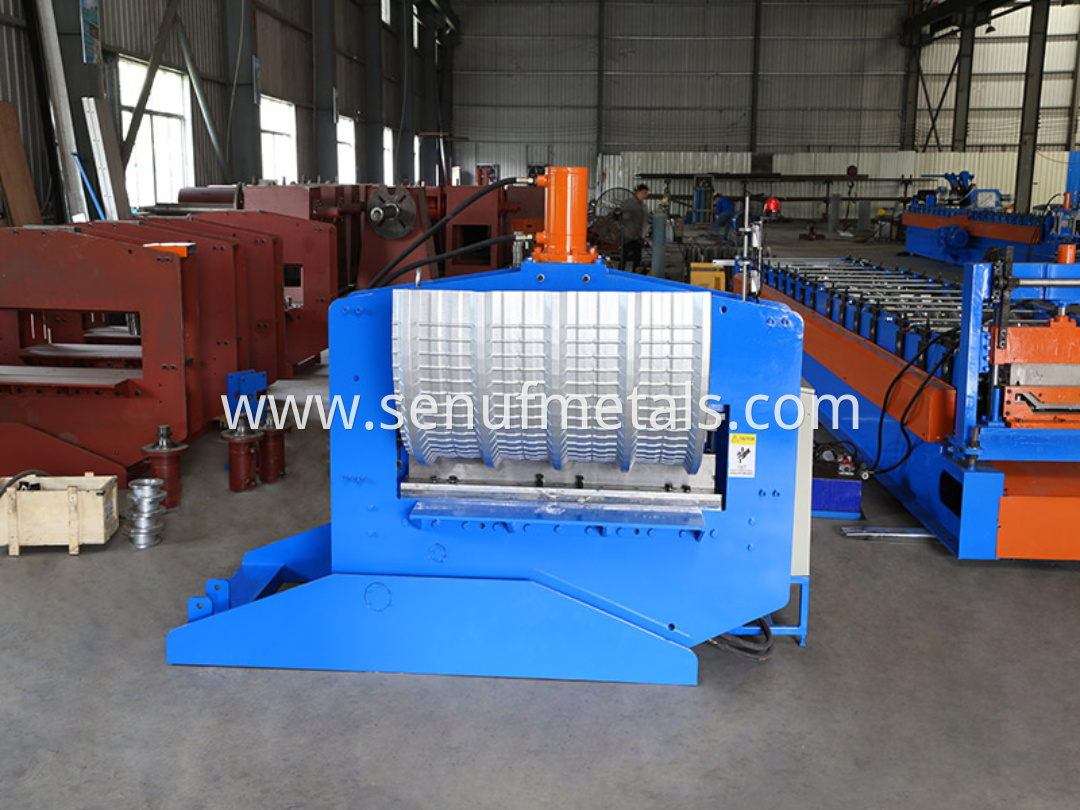

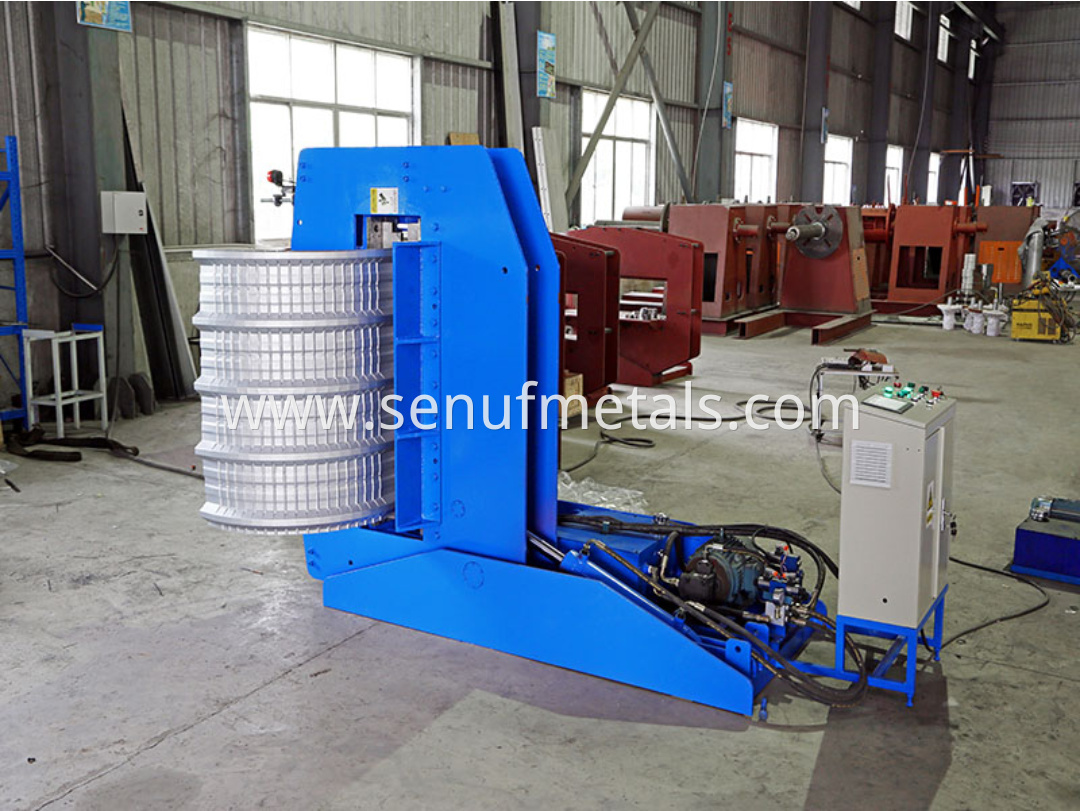

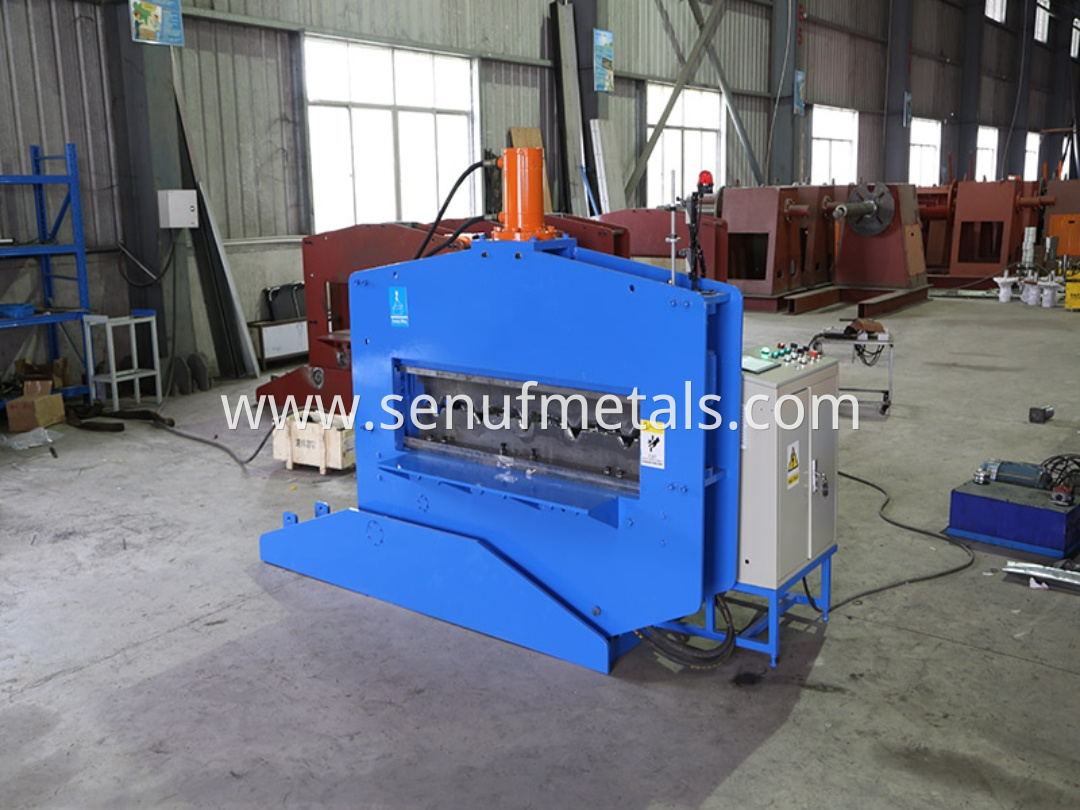

Automatic roofing sheet Curving Machine
Material:
Material thickness: 0.3-0.8mm
Applicable material: GI, PPGI with the yield strength 235-345 Mpa
The machine features:
The panel forming machine is mainly used to make the profile panel become curved with the required radius through cramps on the surface, It can realized auto control and the curving radius length and cramp-distance are adjustable through setting on the screen and PLC cabinet
Machine components:
Hydraulic motor: 4kw, feeding motor with servo type motor,
Curving radius: min 500mm,
Horizontal and vertical two optionals.

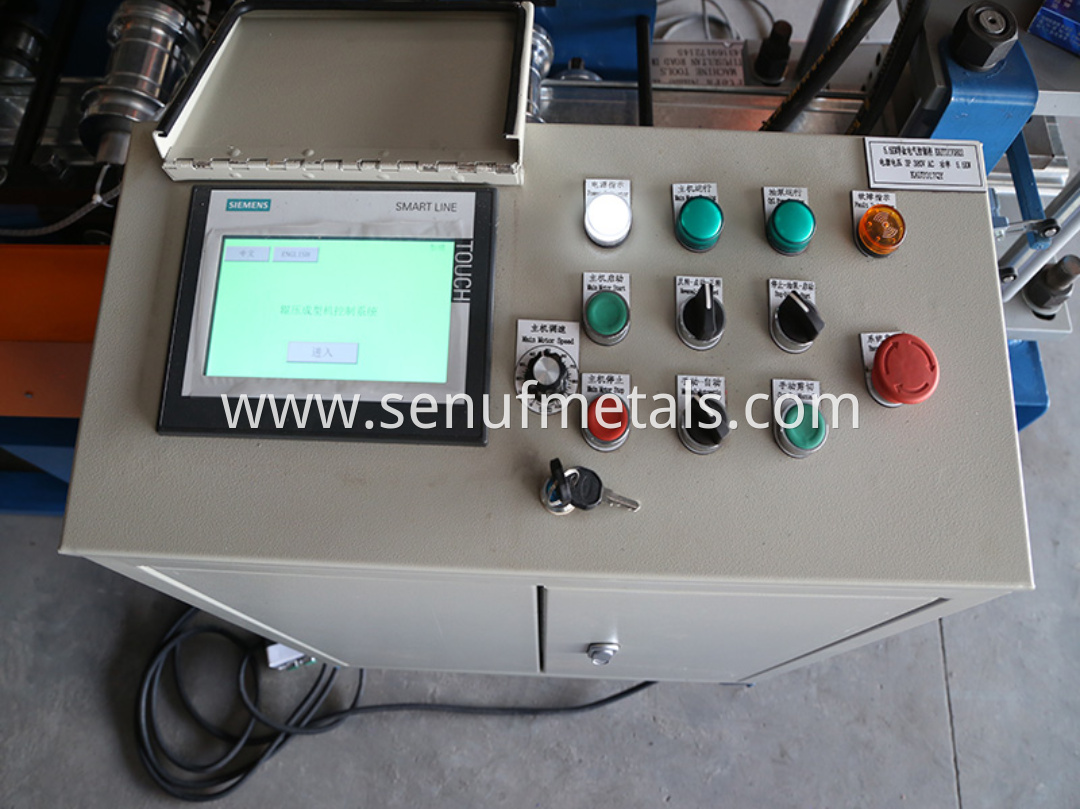

PLC control system:
Control the quantity and cutting length automatically,
Input the production Data (Production Batch, pcs, length, etc) on the touch screen,
It can finish the production automatically,
Combined with: PLC, Inverter, Touch Screen, Encoder, etc.

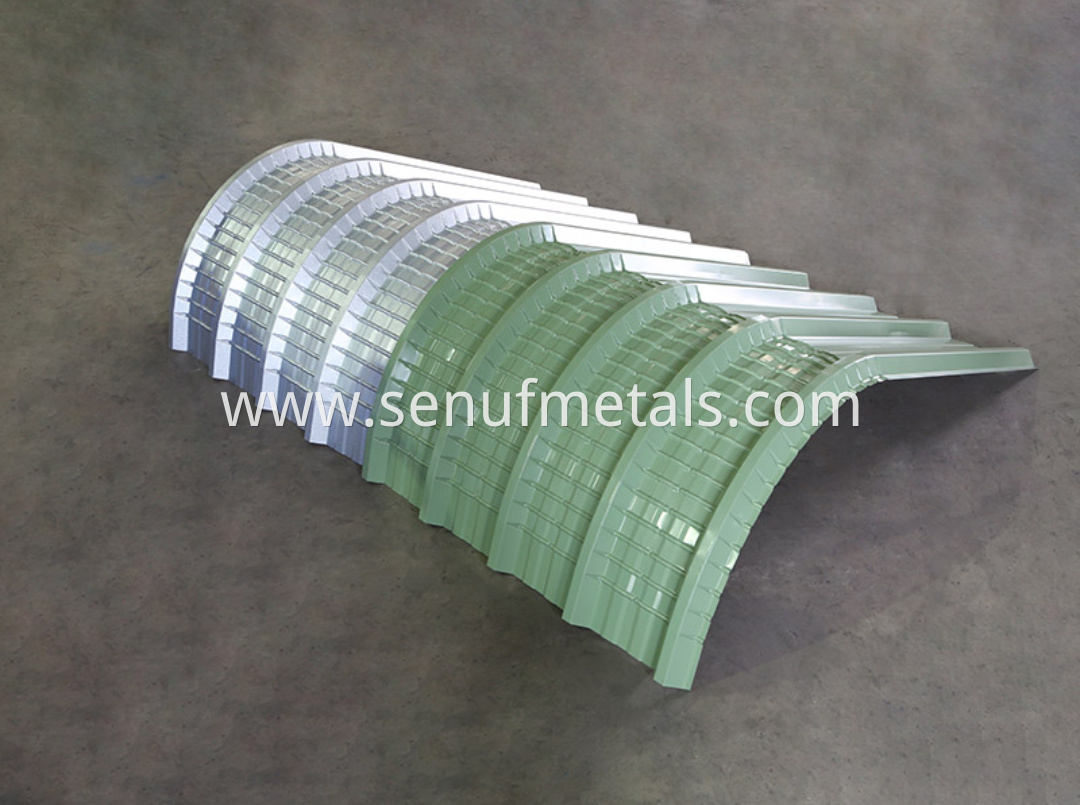

Product show:
