Automatic aluminum metal roof ridge cap making machine
- Product Description
Model No.: SUF-RC
Brand: SUF
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Printing Shops, Advertising Company
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Viet Nam, Mexico, Kenya, Romania, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Viet Nam, Mexico, Chile, Kazakhstan, Malaysia
Old And New: New
Machine Type: Tile Forming Machine
Tile Type: Colored
Use: Roof
Productivity: 15 M/Min
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: Easy To Operate
Rolling Thinckness: 0.3-1mm
Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: New Product 2019
Core Component Warranty Period: More Than 5 Years
Core Components: Pressure Vessel, Gearbox, Engine, Motor, Plc, Bearing, Gear, Pump
Control System: PLC
Material Of Shaft: 45# Steel
Thickness: 0.3-0.8mm
Voltage: Customized
Certification: ISO
Warranty: 1 Year
Customized: Customized
Condition: New
Control Type: CNC
Automatic Grade: Automatic
Usage: Floor
Tile Type: Colored Steel
Transmission Method: Hydraulic Pressure
Material Of Cutter: Cr12
Material Of Rollers: 45# Steel With Chromed
Material: GI, PPGI For Q195-Q345
Rollers: 10
Packaging: NAKED
Productivity: 500 SETS
Transportation: Ocean, Land, Air, Express, by train
Place of Origin: CHINA
Supply Ability: 500 SETS
Certificate: ISO 9001 / CE
HS Code: 84552210
Port: XIAMEN, TIANJIN, SHANGHAI
Payment Type: L/C, T/T, D/P, Paypal, D/A
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP, FAS, DAF, Express Delivery, DDU
- Selling Units:
- Set/Sets
- Package Type:
- NAKED
- Picture Example:
-

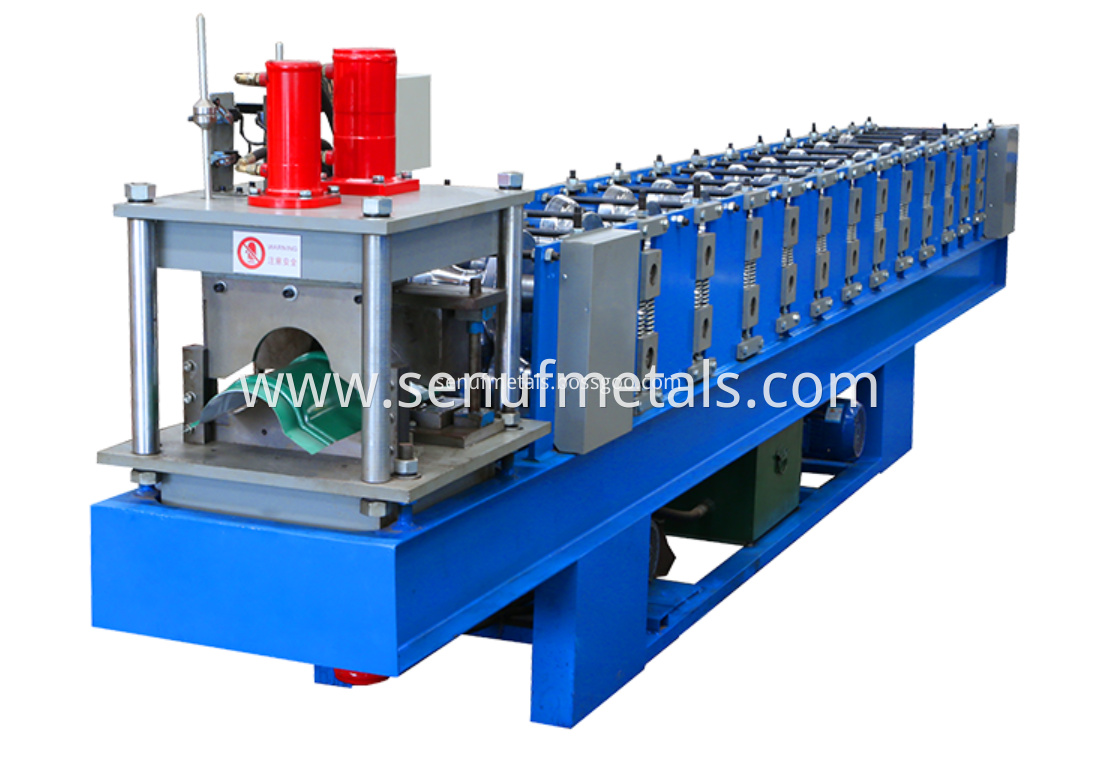

Automatic aluminum metal roof ridge cap making machine

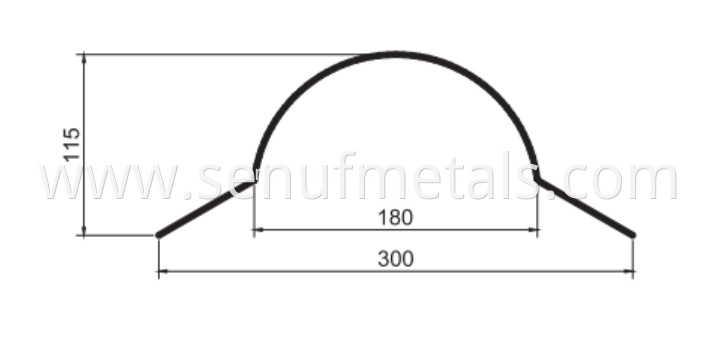

This Automatic 115-300 Cap Ridge Cold Roll Forming Machine is used to hold coil, and uncoil it, and feed into Roll Forming Machine. This machine can rotated clockwise and anti clockwith. Also the speed is adjustable. With the help of limit switch box, the decoiler can work with Roll Forming machine synchronized. It greatly save the labours and improved the working efficiency.
Main features of Automatic 115-300 Cap Ridge Cold Roll Forming Machine
The advantages of Automatic Ridge Cap Roll Forming Machine are as follows:
1. Widely used in many kinds of industrial factory, civilian buildings,
2. Pretty apperance, durable using,
3. Instead using bending machine to make angel tile,
4. Saving human resoureces, lower labor cost
Detailed Images of 115-300 Cap Ridge Roll Forming Machine
Machine Parts

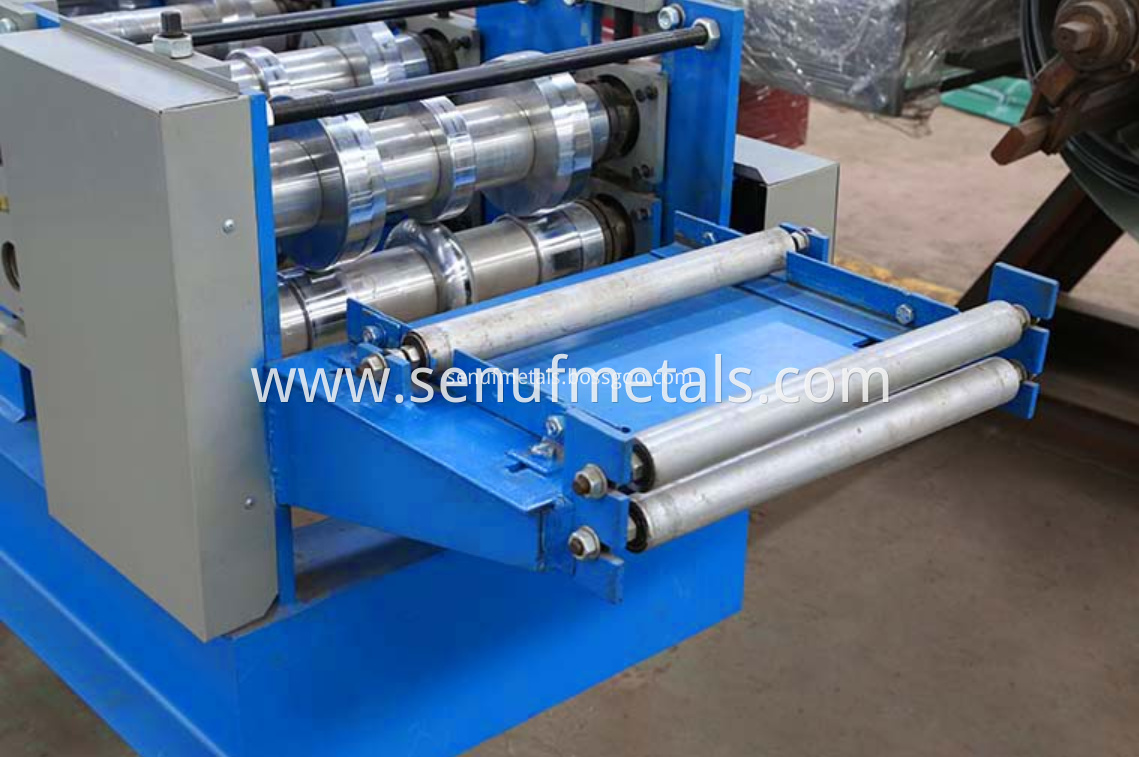

1. 115-300 Cap Ridge Roll Forming Machine feeding guide device

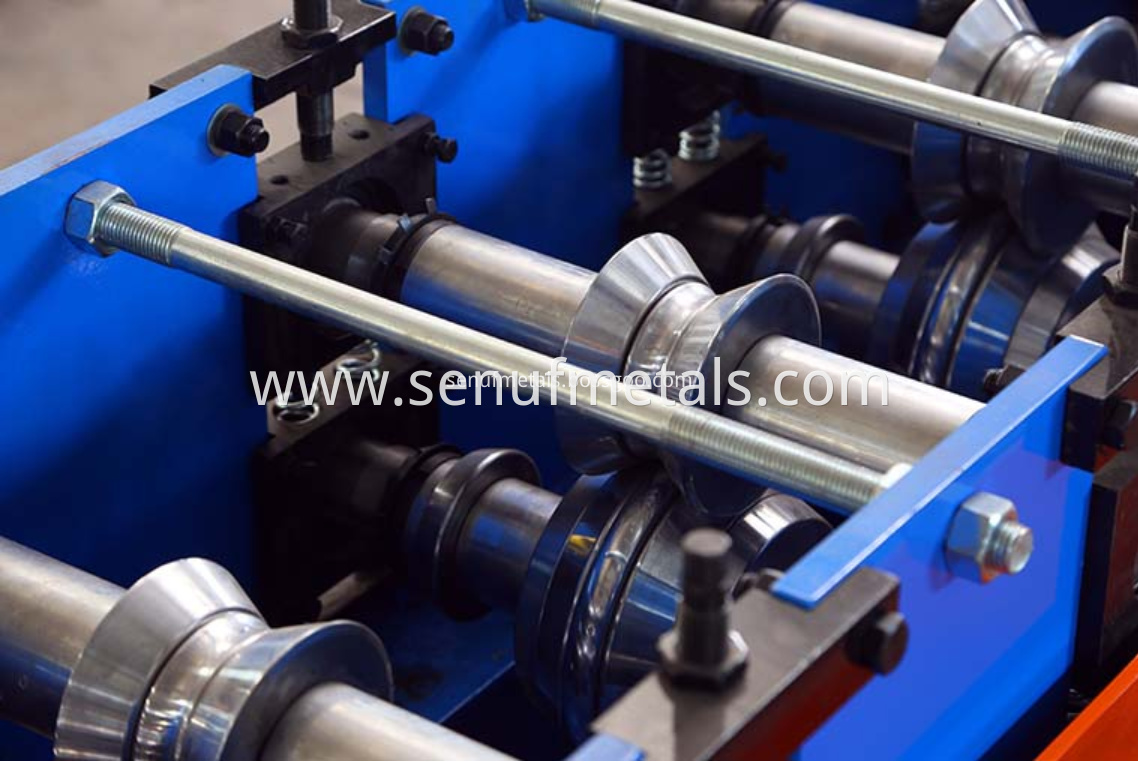

2. Automatic 115-300 Cap Ridge Cold Roll Forming Machine rollers
Roller s manufactured by high quality 45# steel, CNC lathes, Heat Treatment, with black treatment of Harf-Chrome Coating for options,
With feeding material guide, body frame made by 400# H type steel by welding

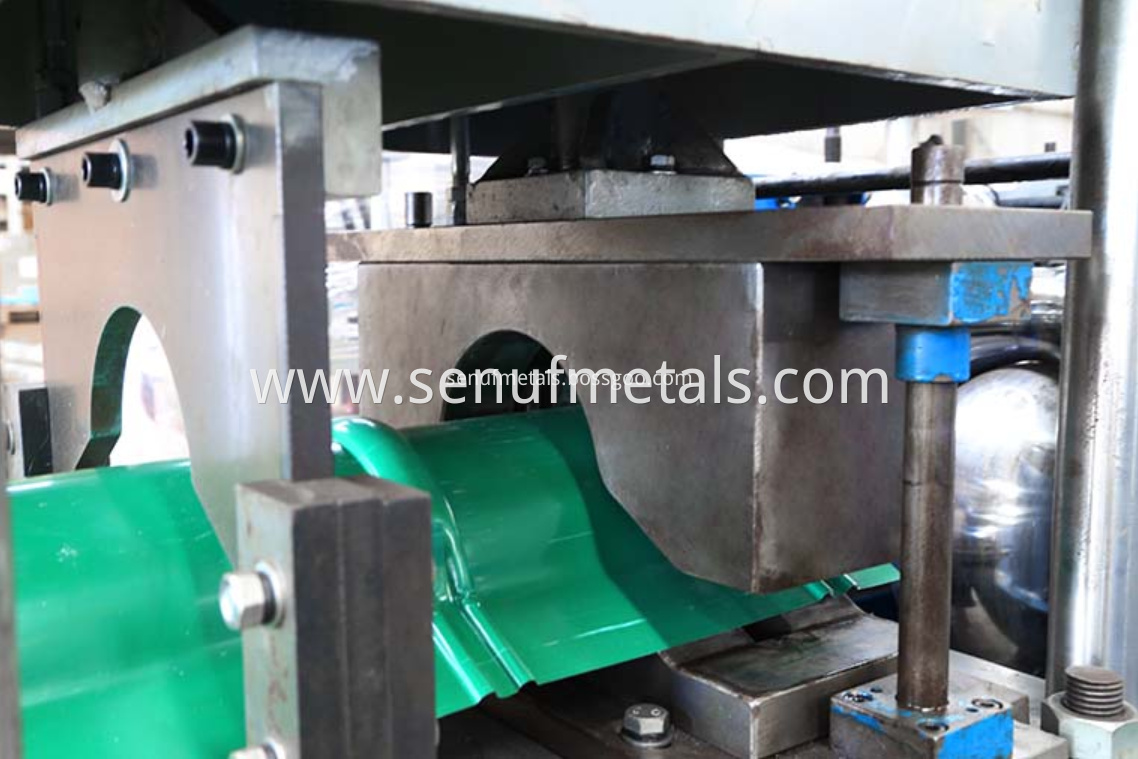

3. Automatic 115-300 Cap Ridge Cold Roll Forming Machine post cutter
Made by high quality mold steel Cr12 with heat treatment,
Cutter frame made by high quality 20mm steel plate by welding,
Hydraulic motor: 2.2kw, hydraulic pressure range: 0-16Mpa

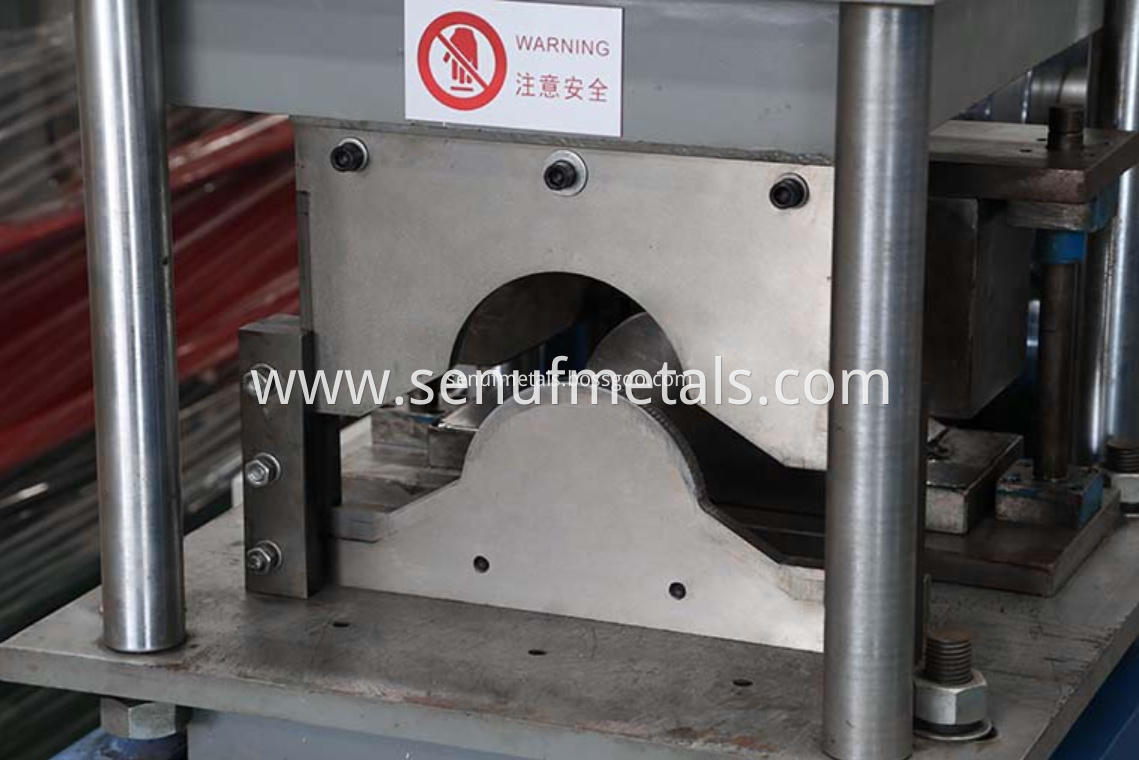

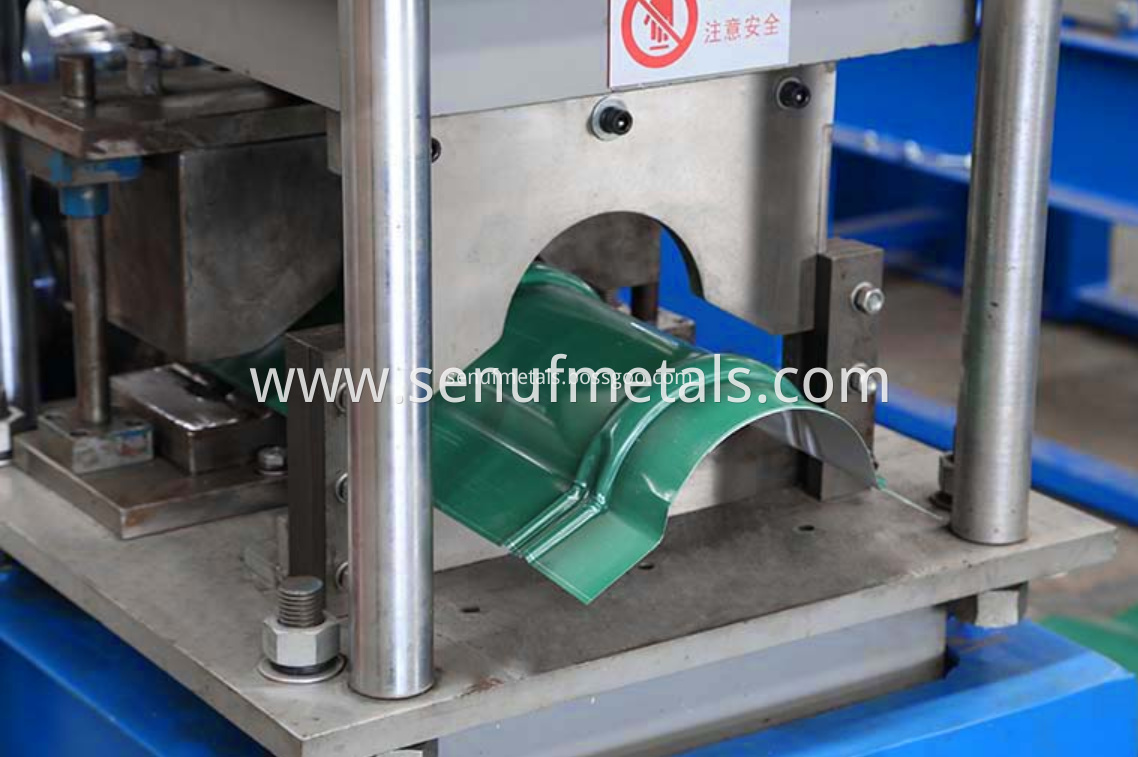

4. Automatic 115-300 Cap Ridge Cold Roll Forming Machine punch mold

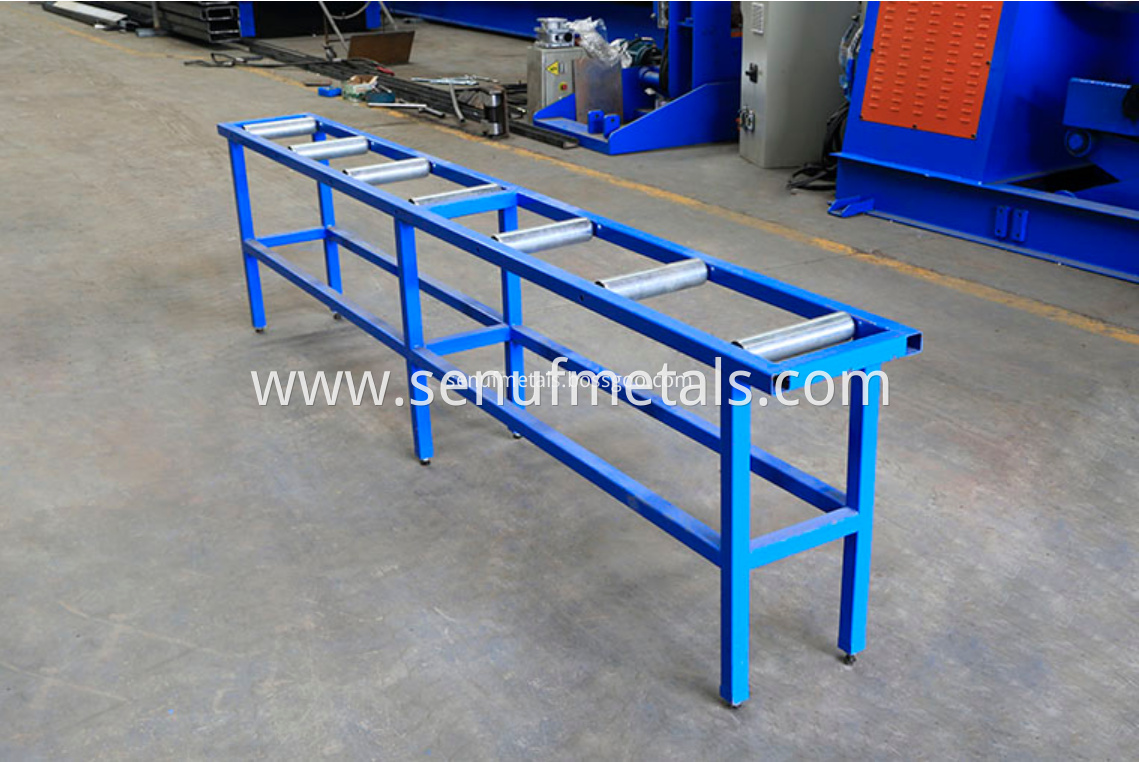

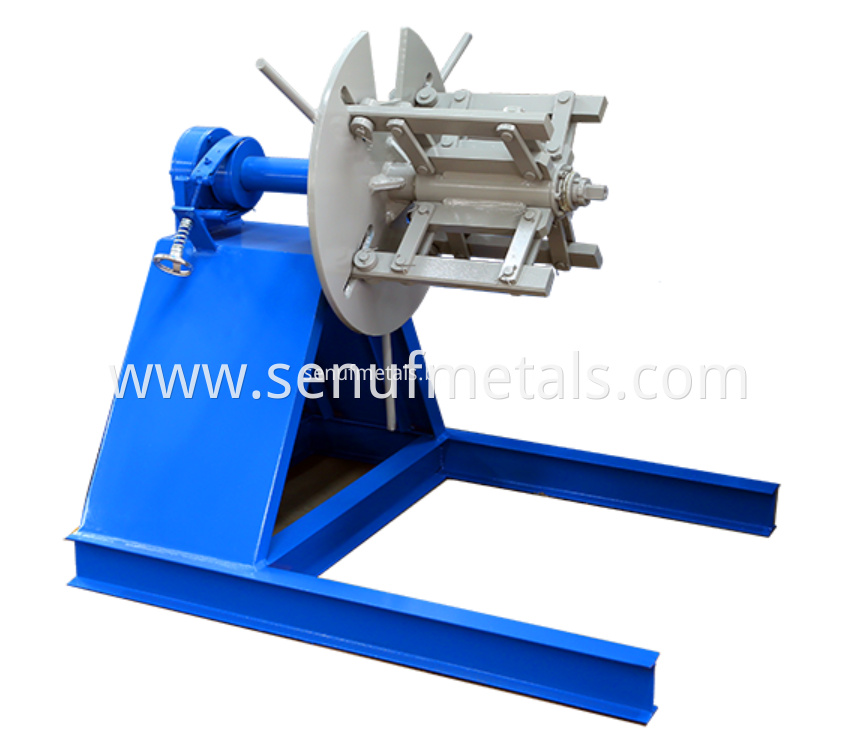

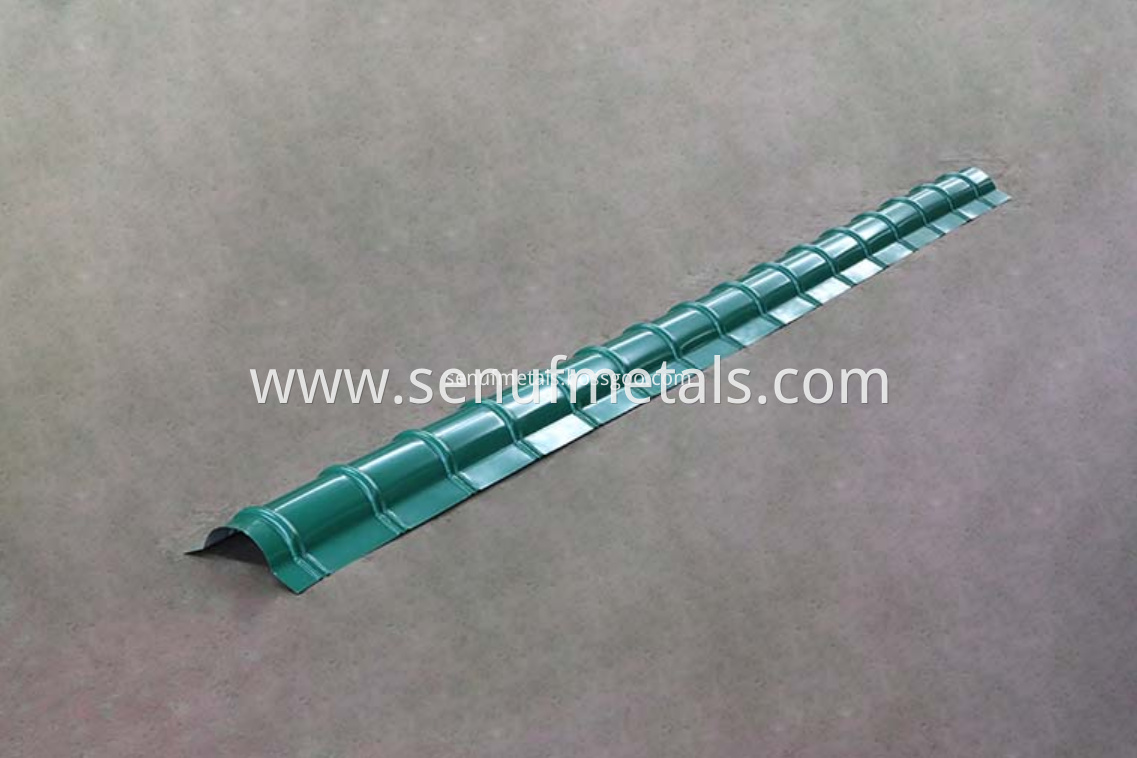

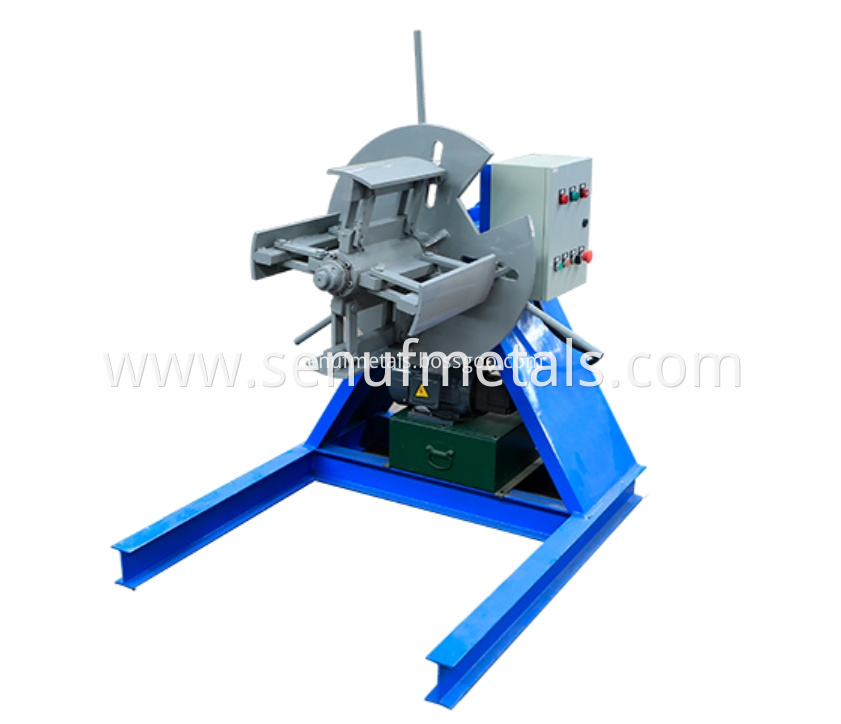

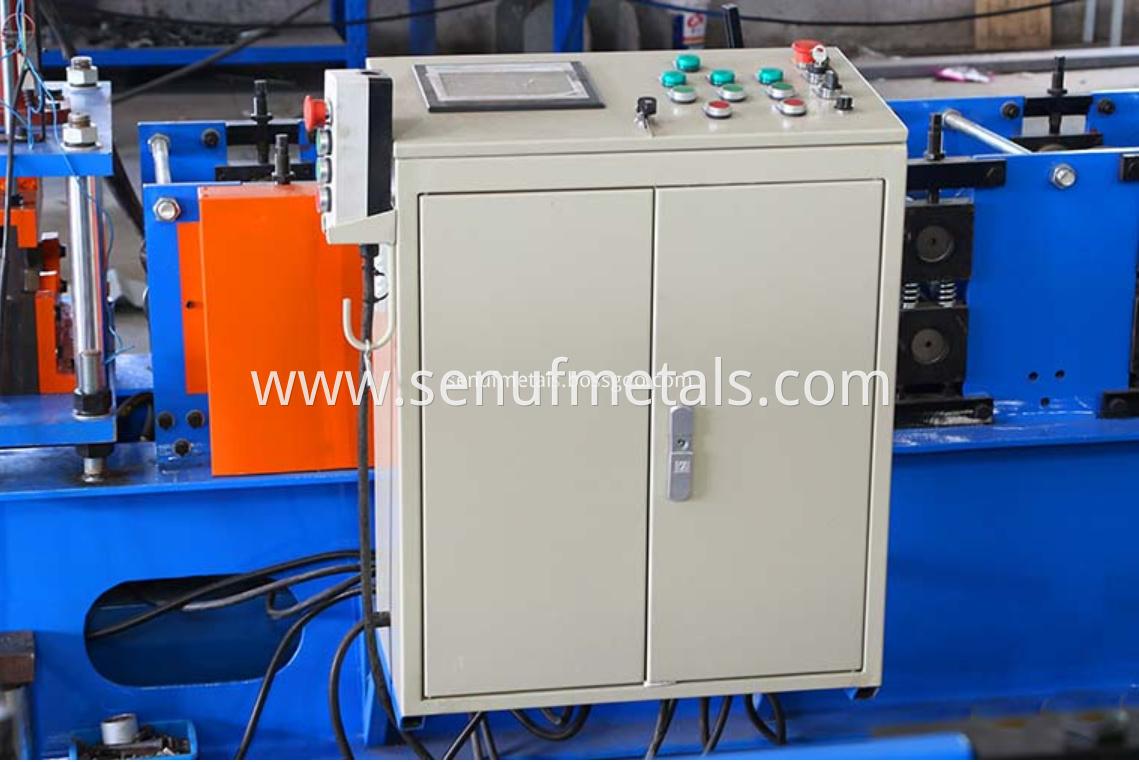

5. Automatic 115-300 Cap Ridge Cold Roll Forming Machine PLC control cabinet 6. Automatic 115-300 Cap Ridge Cold Roll Forming Machine decoiler Manual decoiler: one set Un-powered, manually control steel coil inner bore shrinkage and stop Max feeding width: 508mm, Coil ID range: 470±30mm, Capacity: Max 3 tons with 3 tons hydraulic decoiler as optional 7. Automatic 115-300 Cap Ridge Cold Roll Forming Machine exit rack Un-powered, one set 8. Automatic 115-300 Cap Ridge Cold Roll Forming Machine product sample Other details of Automatic 115-300 Cap Ridge Cold Roll Forming Machine Suitable for material with thickness 0.4-0.6mm, Shafts manufactures by 45#, main shaft diameter 55/75mm, precision machined, Motor driving, gear chain tranmission, 10 steps to form, Main motor 4kw, frequency speed control, forming speed approx 12-15m/min
