28 38 50 60 drywall roll making machine
- Product Description
Model No.: SUF-DW
Brand: SUF
Types Of: Steel Frame &Amp; Purlin Machine
Applicable Industry: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 5 Years
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Old And New: New
Place Of Origin: China
Warranty Period: More Than 5 Years
Core Selling Point: High Safety Level
Shaft Diameter: 40mm
Control System: PLC
Thickness: 0.3-0.8mm
Certification: ISO
Customized: Customized
Condition: New
Control Type: Other
Automatic Grade: Automatic
Drive: Hydraulic
Structure: Horizontal
Transmission Method: Machinery
Shaft Material: 45# Forged Steel
Roller Stations: 10
Main Power: 4.0kw
Forming Speed: 0-40m/min
Driven: Gear Box
Hydraulic Station: 3.0kw
Packaging: Naked
Productivity: 500 sets
Transportation: Ocean, Land, Air, by train
Place of Origin: Hebei
Supply Ability: 500 sets
Certificate: ISO / CE
HS Code: 84552210
Port: Tianjin, XIAMEN, Ningbo
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- Naked
28 38 50 60 drywall roll making machine

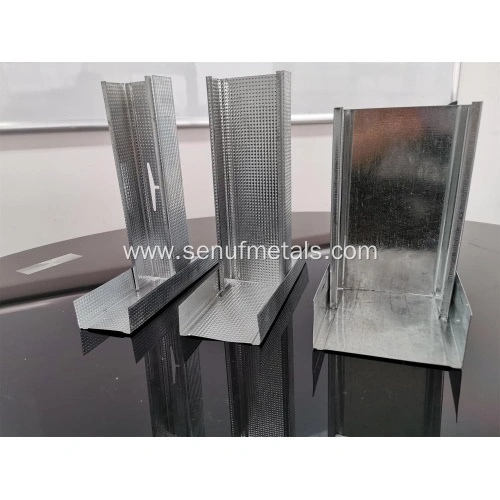

Light Keel Roll Forming Machine with steel as a raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. We can according to customer design, manufacture different specifications of cold-formed, paint unit equipment.
(1 machine for multi-profiles, size-changing by spacers)
The advantages of Light keel Roll Forming Machine are follows:
① The speed can reach 40-80m/min,
② Enlarged hydraulic station to ensure high speed working,
③ Easy operation, low maintenance cost,
④ Beautiful appearance,
⑤ One machine for multi-profiles, size-changing by spacer.
2. Detailed images of Drywall roll making machine
Machine Parts:
(1) Metal frame drywall channel production machine
Feeding Guide (make feeding smooth and no wrinkling)
(2) Metal frame drywall channel production machine
Rollers manufactures from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,
Heat treatment (with black treatment or hard-chrome coating for options),
With feeding material guide, body frame made from 400# H type steel by welding.
(3) Metal frame drywall channel production machine straighting and logo punching device
(4) Metal frame drywall channel production machine operation panel
(5) Light keel Roll Forming machine servo track non-stop cutting
Made by high quality long life mold steel Cr12Mov with heat treatment,
Cutter frame made from high quality 30mm steel plate by welding,
Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa.
(6) Light keel roll forming machine Hydraulic System
Englarged hydraulic station to ensure high speed working
(7) Light keel roll forming machine Decoiler
Manual Decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop,
Max feeding width: 500mm, Coil ID range: 508±30mm,
Capacity: Max 3 tons.
With 3 tons hydraulic decoiler for option
(8) Light keel roll forming machine exit rack
Un-powered, 4 meters long, one set
Other detailes of Light keel roll forming machine
Suitable for material with thickness 0.3-0.8mm,
Shafts manufactures from 45#, main shaft diameter 75mm, precision machined,
Motor driving, gear chain transmission, 12 rollers to form,
Main servo motor: 2.0kw, frequency speed control,
Forming speed: 40 / 80m/min as optional.
