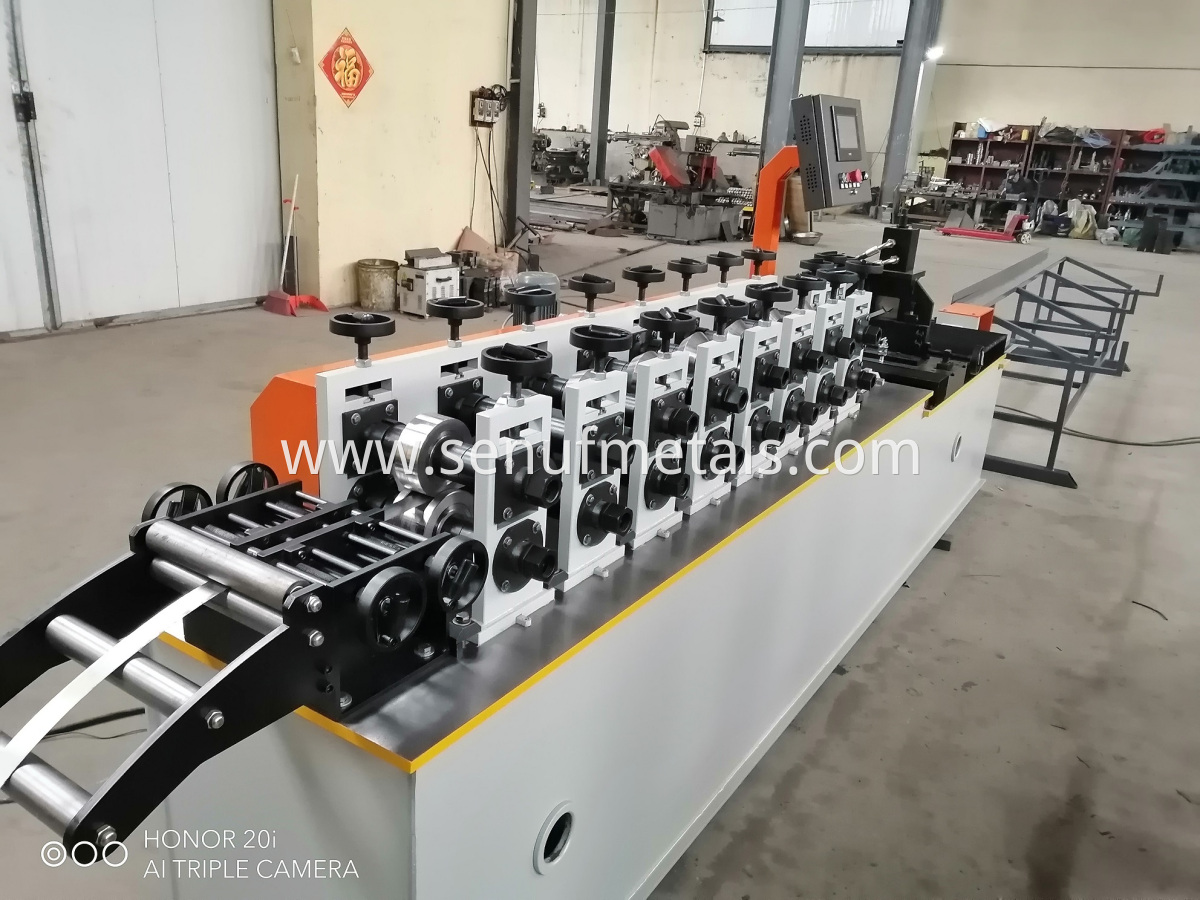

120 M/min CUZ purlin roll forming machine
- Product Description
Model No.: SF-201
Brand: senuf
Warranty: 1 Years
Certification: Other
Condition: New
Customized: Other
Automatic Grade: Automatic
Structure: Other
Transmission Method: Electric
Automatic High Speed Light Keel Roll: Light Keel Roll Forming Machine
Type: Light Keel Forming Machine
Brand Name: SENUF
Voltage: 38v, 50hz
Weight: 5000kgs
After-sales Service Provided:: Online Support, Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support
Material Thickness:: 0.25-0.8mm
Production Capacity: 50 Tons/day
Packaging: many kinds packing as customers demand
Productivity: 10SETS per month
Transportation: Ocean, Land, Air
Place of Origin: hebei china
Supply Ability: 1000sets/year
Certificate: ISO9001
HS Code: 73089000
Port: Xingang, Shanghai, QINGDAO
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Selling Units:
- Set/Sets
- Package Type:
- many kinds packing as customers demand
Product Details
High Speed CUZ Purlin Machine
(1 Machine For Multi-Profiles, AUTO Changing Size)
Material

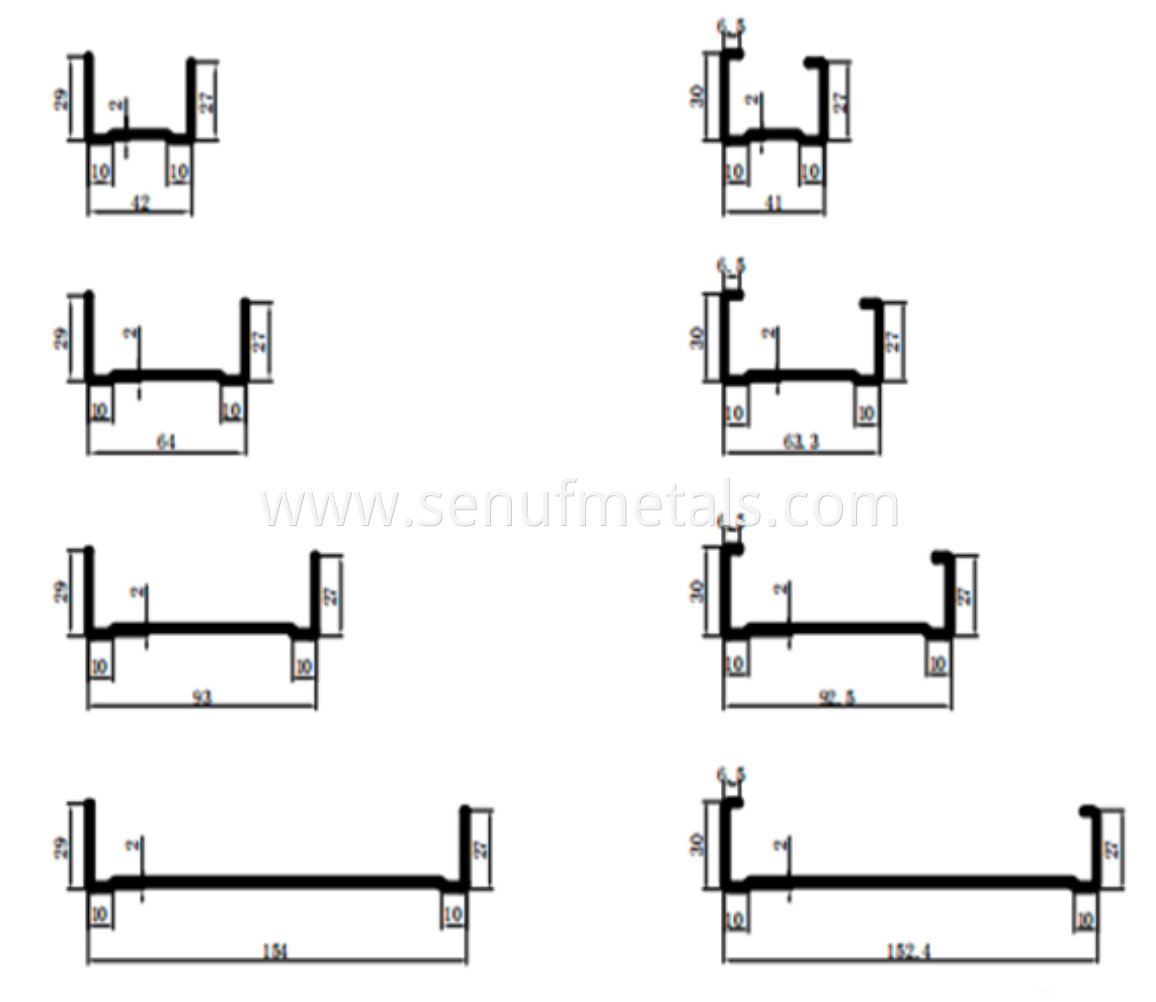

Effective width:About 3/4Z6/8 Inches
Feeding width:about 187/212/263/314mm
Material Thickness:0.6-2.0mm
Applicable materiakGalvanized Steel(GI), Hot Roll Steel(HRC), With yield strength G235-390Mpa
Work Follow
Decoiler—Feeding Guide Device—Rolling Forming System—Hydraulic Not Stop Cutting And Punching Device— Exit Rack
Machine Components

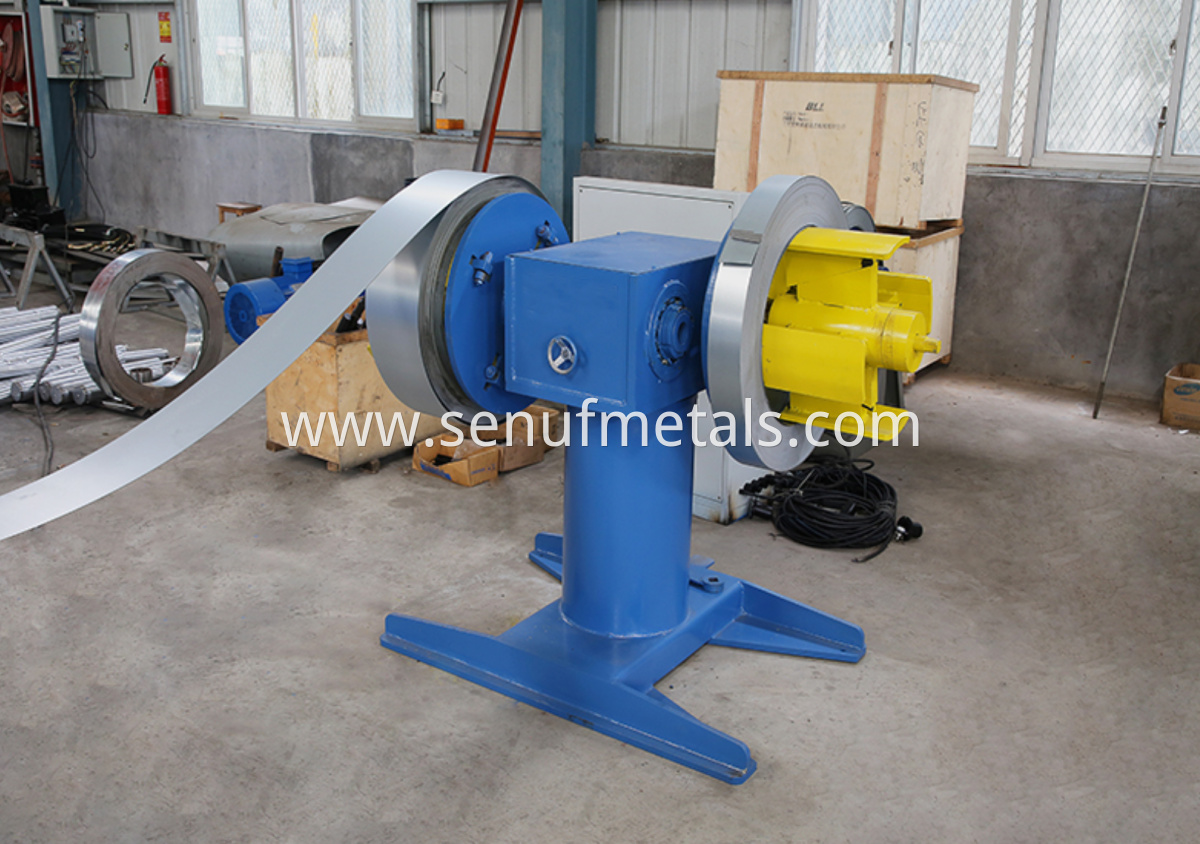

l)Manual Decoiler(Double Coil)：One Set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm, coil ID range Φ460-520mm
Capacity:Max 2 Tons*2
2) Feeding Guide Device
The feeding guide device at the main entrance of the machine during work, Raw materials on both sides of the plate the enter into the machine by the guiding device, make the raw materials and Roll Forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism, and the feeding guide width can be adjusted independently

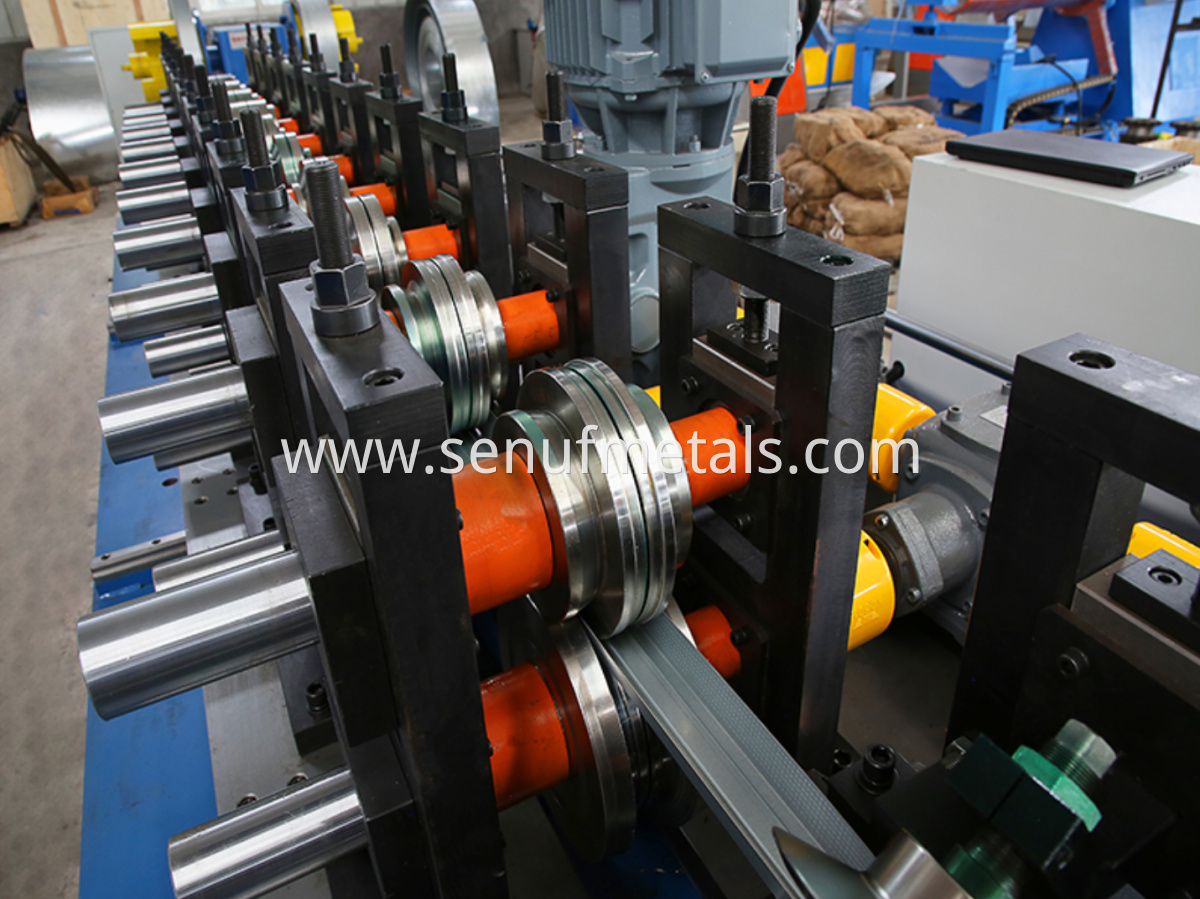

3) Rolling Forming System
The machine dimension(L*W*H):About 10000mm*2100mm*1800mm
Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe Shafts material:40Cr steel, CNC lathes, Heat Treatment, hard Chrome Coated With thickness 0.04mm, surface with mirror treatment(for longer life and anti rust)
Main motor and 14 reducers combination driving, about 14-step to form
Main Motor =18.5KW, Frequency speed control
4) Hydraulic Cutting And Punching Device
Cutter type:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4.4KW&2.9KW
5) Operation Panel
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch, pcs , Length, etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

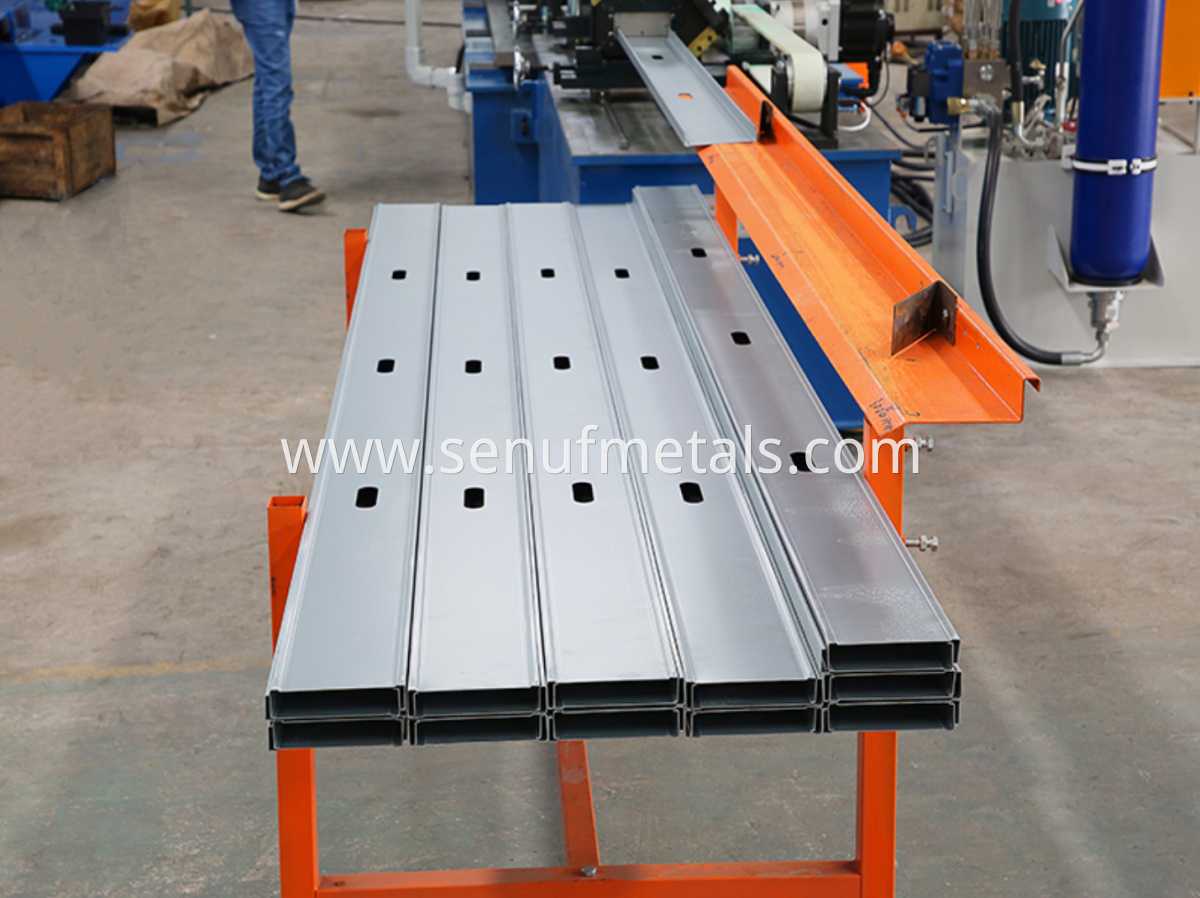

6)Exit Rack And Product Show
After-sale service of stud and track Roll Forming Machine
1. The warranty of CU purlin roll forming machine is two years after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our Machines.
3. We can send our technicians to install and train the workers in the clients’ factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time:30 workdays
3. Port of loading:Any port of China
4. Type of payment: by T/T or by L/C
